Baja Designs Reflex Light Actuator Kit XL Standard Housing

Baja Designs Reflex Light Actuator Kit XL Standard Housing

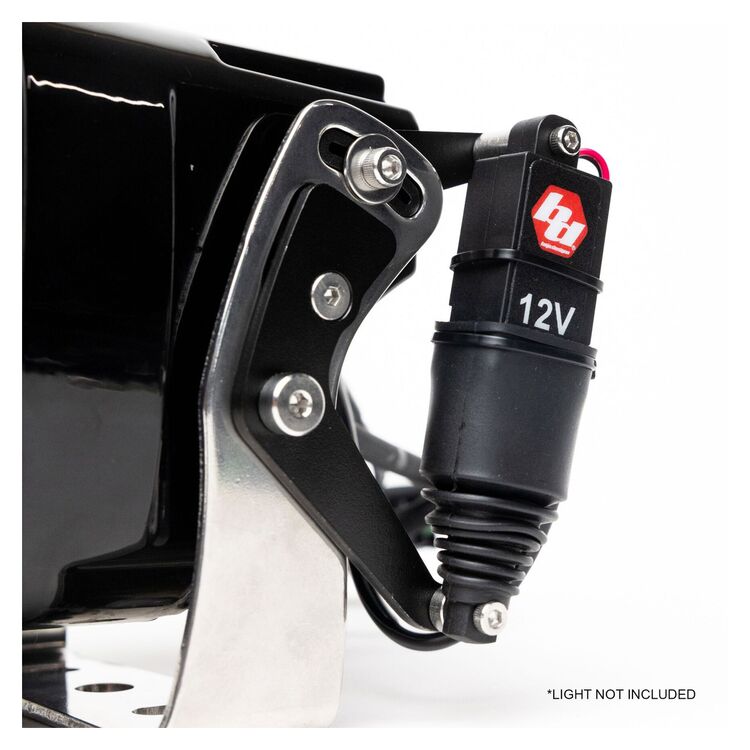

The REFLEX Light Actuator, developed from the demanding environment of Baja racing, integrates seamlessly with Baja Designs lighting solutions. It is designed to offer adjustable control over the lighting angle, allowing for up to 20-degree adjustments tailored to different terrains. The REFLEX ensures drivers can adapt their lighting to suit ascents, descents, and high-speed flat conditions effortlessly. Compatible with Baja Designs light brackets, it promises easy installation without the need for custom modifications, making it a simple upgrade for enthusiasts seeking professional-grade illumination control.

Features:

• Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly
• Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages
• Compatible with most VSKs using the light’s universal bracket
• Standard Baja Designs Limited Lifetime Warranty

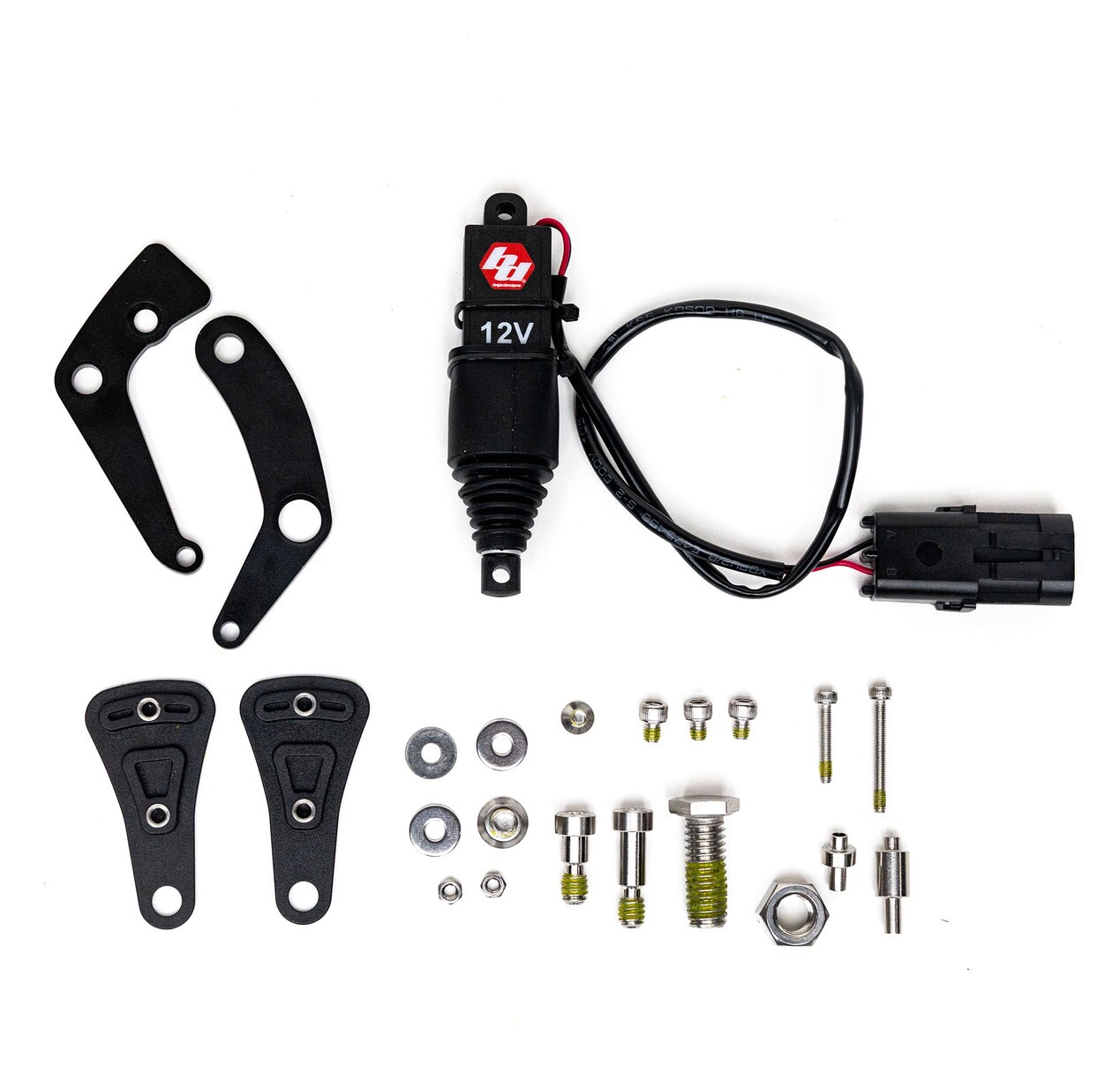

• Wiring harnesses for control via rocker switch or power control modules (sPOD, SwitchPros, and others)

Specifications:

• 0.14A/2.0W at 13.8V per actuator
• MIL-STD-810G, IEC compliant
• Waterproof Rating: IP54
• OnX6 Light Bar
  • For 10” OnX6 light bars, one actuator is needed
  • For 20”+ OnX6 light bars, two actuators are needed

Note: Wiring harness sold separately
