Brembo M50 Brake Caliper

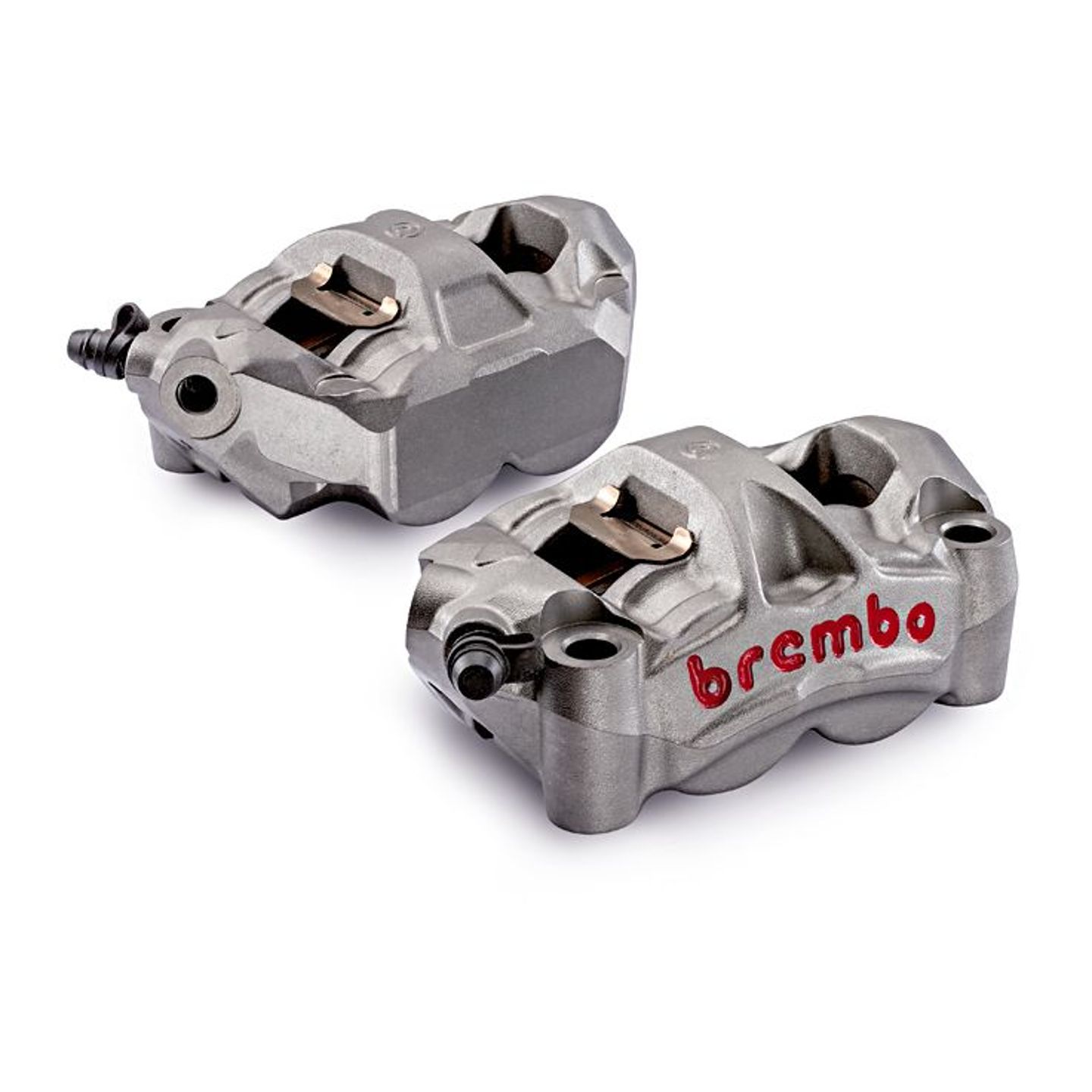

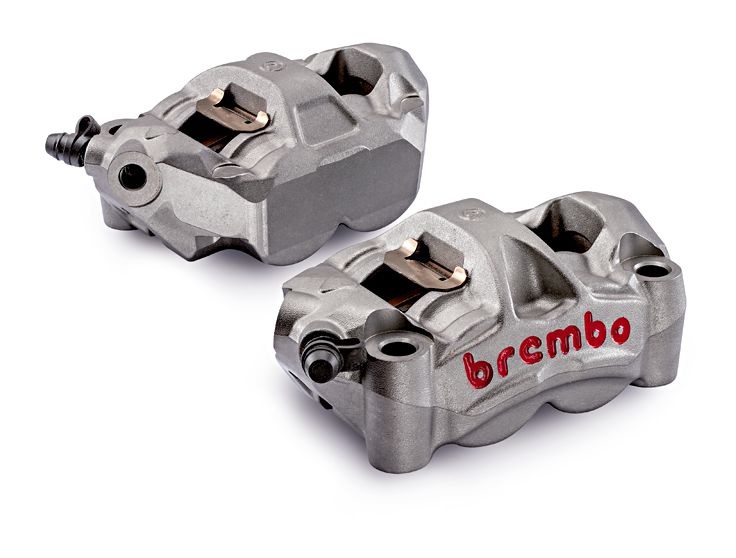

Brembo M50 Monoblock Brake Calipers

The sleek and small monoblock body of the Brembo M50 Caliper was created to ensure superior power and braking modulation. Brembo successfully brought monoblock braking technology to MotoGP in the early 1990s. Brembo hasn't stopped pushing the performance envelope since then, and the M50 Caliper is no exception. Absolute rigidity even under the worst braking is ensured by its triple bridge design and single piece cast aluminum body. The caliper can provide more accurate feedback to the master cylinder, brake lever, and rider's fingertips thanks to its four 30mm pistons.

Every M50 Caliper weighs a mere 700 grams (1.54 pounds). Brembo utilizes topological optimization software, to reduce eliminate an excess material from the M50 caliper ensuring the lightest possible assembly without compromising performance.

Features:

• Cast aluminum construction
• Titanium anodized finish
• Single piece monoblock design
• Hand painted embossed Brembo logo
• Four 30mm aluminum pistons
• Weight without pads: ~700 gr
• Compatible disc height: 32-34mm
• Brake fluid: DOT 4
• Compatible with OEM Brembo, SuperSport and T-Drive rotors
• OE on the Ducati 1199 Panigale
• Brembo Caliper Spacer Kits available (sold separately)
• Sold as a pair

Includes:

• 2 x Brembo M50 Caliper
• 2 x Brembo sintered brake pads
• 4 x Copper crush washers
• 2 x Thermal sensitive caliper tape
• User’s manual

Note: Designed to be used in conjunction with the Brembo 17RCS Master Cylinder only.
