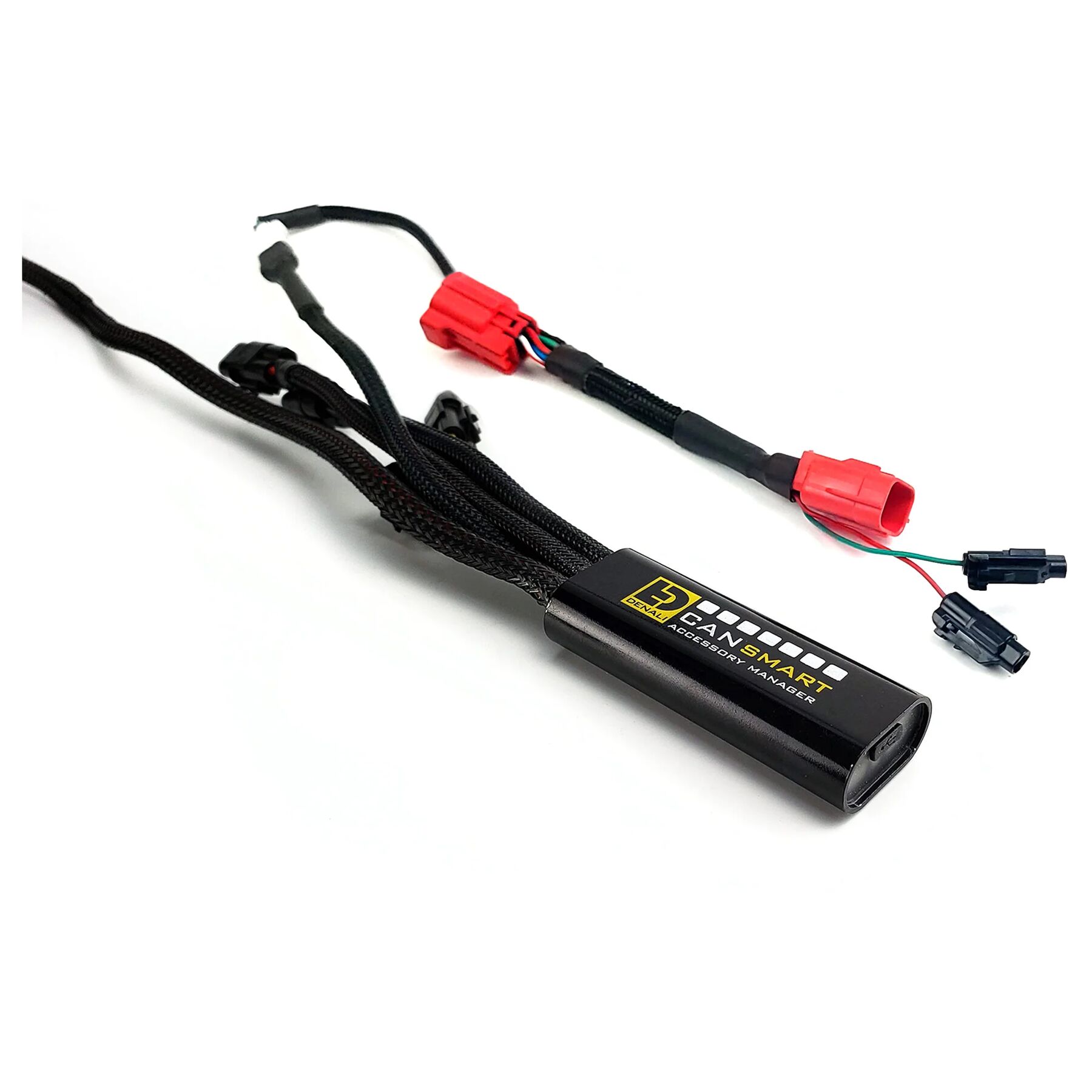

Denali 2.0 Plug-N-Play CANsmart Controller Yamaha Tenere 700

Denali offers this next level CANbus controller, providing plug and play connection along with intelligent control of aftermarket accessories from your motorcycle's original switches or Denali Accessory Manager Software. Effortlessly connect the CANsmart Controller to your motorcycles diagnostic port to gain access for over 35 programmable accessory settings that provide intelligent control of factory passing lamps, auxiliary lights, horns, brake lights, or any other accessory you can imagine.

Features:

• True Plug & Play installation
• Offers custom control of your electrical accessories
• 4 dedicated circuits pre-programmed to control two sets of auxiliary lights, an auxiliary horn, & an auxiliary brake light
• Each circuit is electronically fused and preconfigured to use right out of the box
• Features dozens of customizable settings that can be controlled with CANsmart Accessory Manager Software
• lash to pass & strobe when horn active can strobe your auxiliary lights when you pulse the high beam or sound your horn
• Compatible with the DENALI B6 Auxiliary Brake Light for integrated running light, multiple flash pattern, deceleration & activated braking functionality
• Permits use of auxiliary horn like the DENALI SoundBomb without having to add a relay or dedicated horn wiring harness
• High/Low Sync: Set passing lamps and auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.
• On/OFF and Dim: Independently control two sets of lights on/off and intensity level (for both day and night) right from your bikes factory trip switch. Click three times to turn lights on/off, or hold for 3 seconds to enter dimming mode where you can cycle between 10%-100% intensity.
• Modulate Lights: Set passing lamps or auxiliary lights to modulate to increase your visibility to other motorists.
• Flash to Pass: Need to get someone's attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.
• Cancel With Turn Signal: This feature cancels the corresponding auxiliary light when you turn your turn signal on preventing powerful auxiliary lights from overpowering your signal
• Plug & Play Horn Installation: Quickly and easily connect high power aftermarket horns like our SoundBomb without having to add an additional harness or relay.
• Strobe with Horn: With this feature selected the CANsmart will automatically strobe your passing lamps or auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb horn installed.
• Deceleration Activated "Smart Brake" Technology: The CANsmart reads vehicle speed in real time to activate your brake light during deceleration before you even touch the bake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.
• Flash Pattern Braking: The CANsmart provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).
• Switched Power Source: The CANsmart provides a universal "accessory" option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.
• Delay Time Out: You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.
• On Board Power: The "accessory" circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

Tenere 700 Limitations:

• Auxiliary Light Two Dimming and ON/OFF functions are not available from bikes factory controls (All dimming and light settings need to be configured in the CANsmart Accessory Manager Software)
• Day/Night intensity is unavailable
• Turn signal circuit functions not available.
• Cancel auxiliary lights with turn signal feature not available.
• Flash auxiliary lights as turn signal feature not available.
• Heated gear control through OE Heated Grip button not available.

If dimming your auxiliary lighting on-the-fly is important to you Denali recommends using our DialDim Lighting Controller which enables on-the-fly dimming and control of up to two sets of aux lights. Keep in mind that both products can be installed on your Ténéré together, so a logical setup would be two sets of aux lights on a DialDim while your horn, brake lights, DRLs, or other accessories can be powered from the CANsmart.

NOTE: The Denali 2.0 DataDim Dual-Intensity Controller is not needed with this part.
