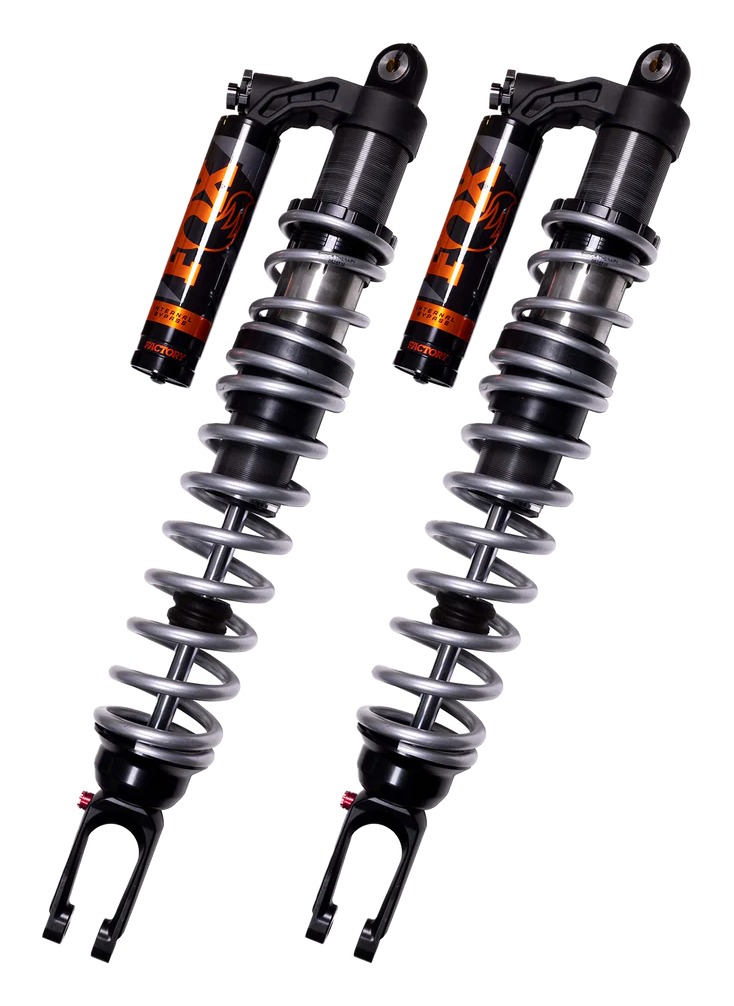

Fox Factory Factory Race Series 3.0 Internal Bypass Front Shocks Polaris RZR Pro R 2022-2023

Fox Factory Factory Race Series 3.0 Internal Bypass Front Shocks Polaris RZR Pro R

Fox Factory introduces a cutting-edge, direct bolt-on replacement shock system for UTVs/Side-by-Sides, employing position-sensitive damping technology derived from the trophy truck racing arena. This system features a larger shock bore diameter to minimize fading, enhanced by velocity-sensitive damping for increased resistance during repetitive impacts. Crafted with lightweight aluminum bodies and reservoirs, it reduces weight without compromising on performance. For tailored suspension tuning, this setup includes independent high- and low-speed compression adjusters, wide-range rebound adjustment, and a dual-rate spring package with customizable crossover rings, all designed to refine your vehicle's performance to its peak. Utilizing Fox's patented Internal Bypass technology (IBP), the shocks offer adaptable damping based on the piston's position within the shock, ensuring optimal control during various stages of travel – lighter damping for smoother navigation over uneven terrain and significantly increased resistance when fully compressed, effectively preventing bottoming out at high speeds or when topping out, protecting against damage.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Carbon Black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 35.52
• Compressed: 24.22
• Travel: 11.30
• Top Mount: Eyelet
• Bottom Mount: Clevis
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
