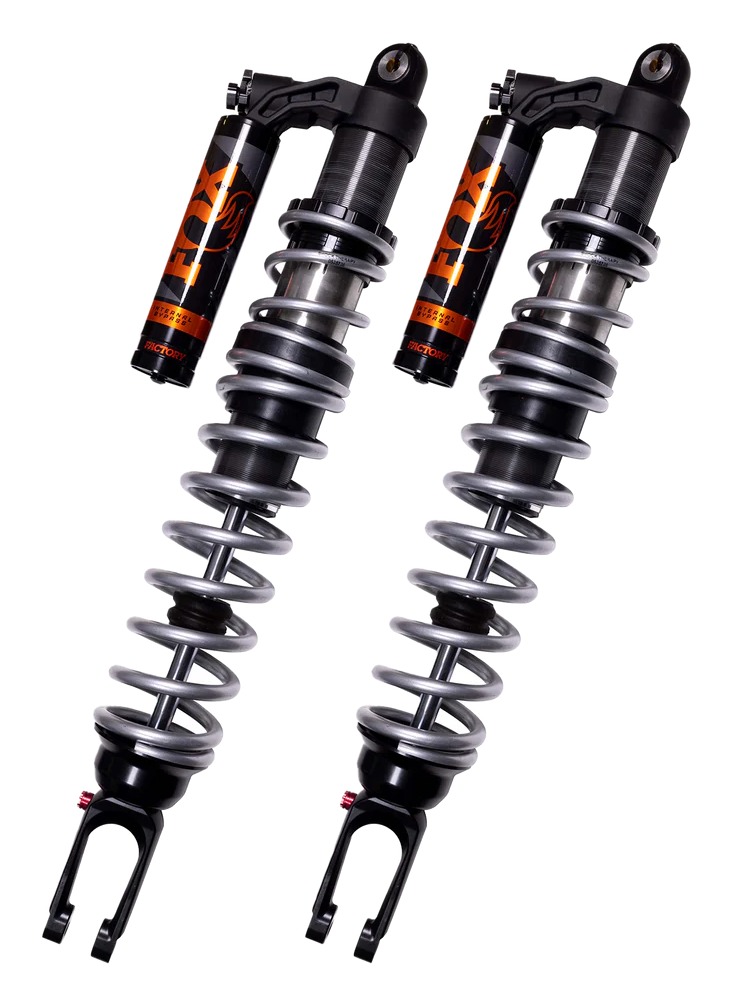

Fox Factory Factory Race Series 3.0 Internal Bypass Front Shocks Polaris RZR Pro R 4 2022-2023

Fox Factory Factory Race Series 3.0 Internal Bypass Front Shocks Polaris RZR Pro R 4

Fox Factory introduces a direct bolt-on replacement for UTV / Side-by-Side, leveraging race-proven position-sensitive damping technology from the trophy truck scene. The increased shock bore diameter enhances performance by preventing fade and employing velocity-sensitive damping for added resistance over frequent impacts. Constructed with aluminum bodies and reservoirs, these shocks are designed to reduce weight while maintaining superior performance. The product features independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a dual-rate spring package with adjustable crossover rings for fine-tuning suspension settings for peak performance. FOX's patented Internal Bypass technology (IBP) allows for varied damping control based on the piston's position within the shock, offering optimal damping throughout the entire stroke to prevent bottoming out and reduce top-out impact, ensuring smooth handling over various terrains.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Carbon Black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 35.52
• Compressed: 24.22
• Travel: 11.30
• Top Mount: Eyelet
• Bottom Mount: Clevis
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
