Fox Factory Performance Elite Series 2.5 RC Shocks Polaris General XP 2020-2024

Fox Factory Performance Elite Series 2.5 RC Shocks Polaris General XP

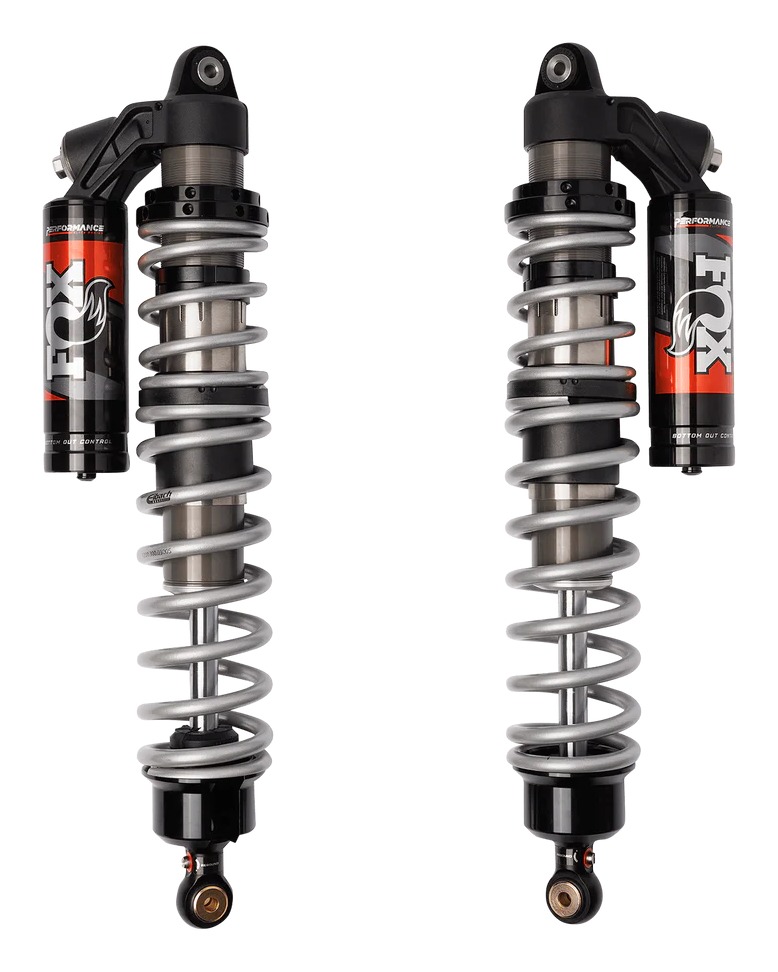

The Performance Elite Series 2.5 shocks by FOX are designed to elevate the durability and adjustability of your UTV or Side-by-Side vehicle. Built to withstand harsh conditions, these shocks feature a 7/8” hard chromed shaft and a robust seal pack, ensuring longevity and performance. With Dual Speed Compression (DSC) settings, riders can fine-tune the shock damping to suit various terrains and riding styles, while the wide-range rebound adjustments and preload collar offer further customization to optimize traction and ride height. Constructed with 2.5-inch diameter aluminum bodies, these shocks enhance heat dissipation and increase oil volume, leading to improved damping control through high-flow pistons developed from racing insights. The inclusion of a piggyback reservoir expands oil capacity and integrates an internal floating piston to segregate the nitrogen charge from the shock oil. Enhanced bottom-out control is achieved with additional compression damping during severe impacts, bolstering damping force in the critical final quarter of travel. This synergy of features ensures a balance between smooth compliance over smaller bumps and the capacity to endure hefty impacts. FOX’s Performance Elite Series 2.5 shocks offer a transformative upgrade with their ease of installation and capability to adapt seamlessly across various terrains, making them a premier choice for riders aiming to enhance their vehicle’s performance.

Features:

• Sold as a pair
• Piggyback reservoir
• 7/8” hard-chromed shaft
• Redundant seal pack
• Dual-Speed Compression (DSC)
• 2.5” Aluminum body
• Bottom-out control (BOC)
• BOC increases damping force up to 30 percent through the final 25 percent of travel
• PTFE-lined spherical bearings
• Fully re-buildable and re-valvable
• Wide-range rebound

Adjustments / Technical Information:

• Front Extended Length: 24.70
• Front Compressed Length: 17.65
• Front Travel: 7.05
• Rear Extended Length: 25.20
• Rear Compressed Length: 16.85
• Rear Travel: 8.35
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback
