Product Details

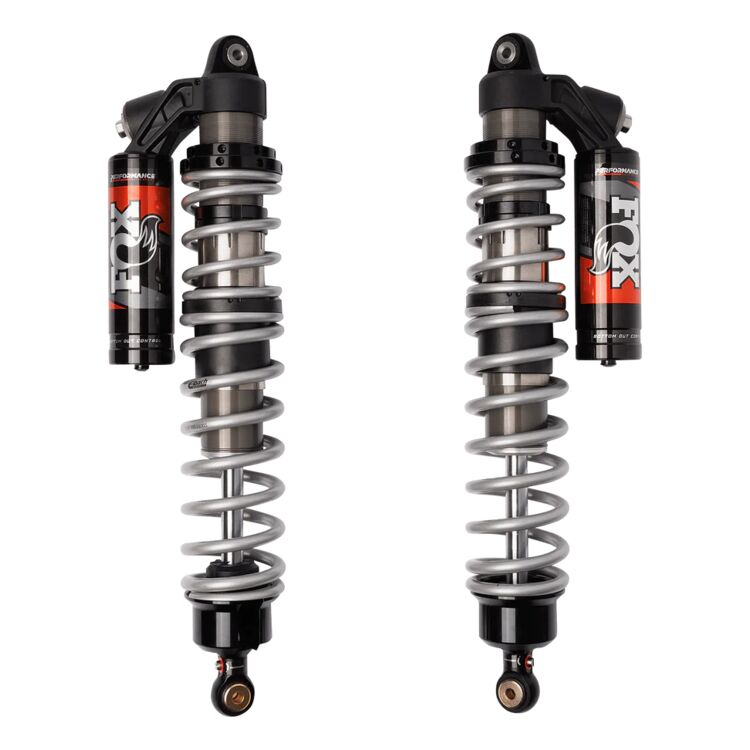

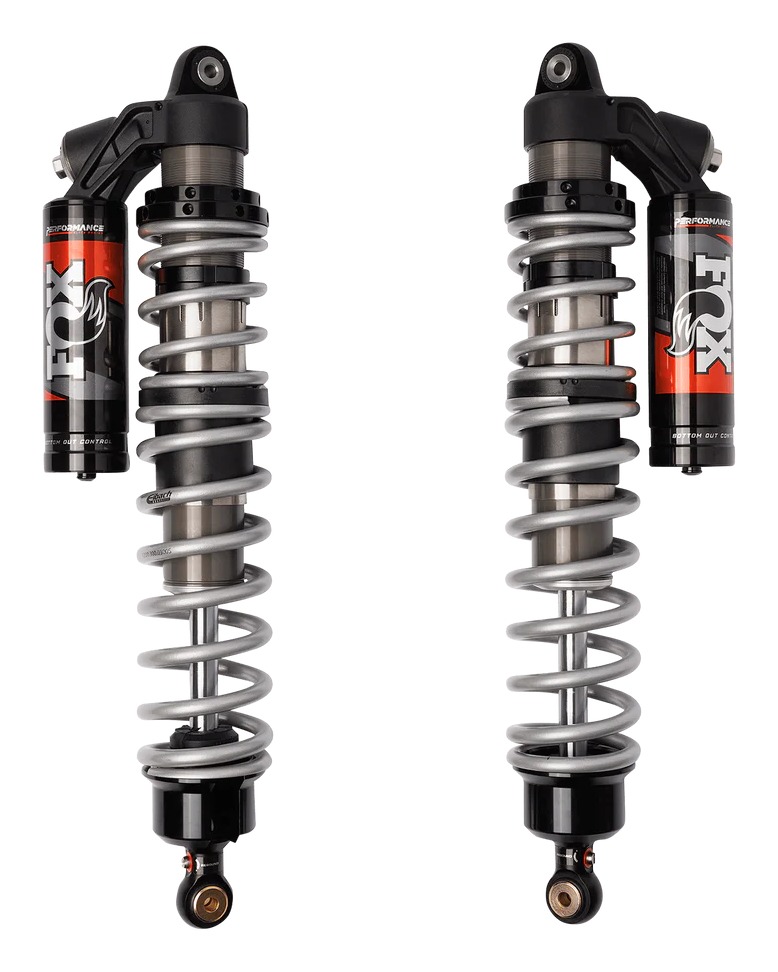

Fox Factory Performance Elite Series 2.5 RC Shocks Polaris General XP 4

Performance Elite Series 2.5 shocks by FOX are crafted to elevate the performance of UTVs and Side-by-Sides. Structured for endurance with a 7/8” hard chromed shaft and a robust seal pack, they withstand severe conditions, ensuring longevity. These shocks feature customizable Dual Speed Compression (DSC) and wide-range rebound adjustments for tailored damping on various terrains. The preload collar allows for straightforward ride height adjustments. Their 2.5-inch diameter aluminum bodies excel in dissipating heat and enhancing oil volume, enabling superior damping control via high-flow pistons developed from racing insights. The integrated piggyback reservoir extends oil capacity, with an internal floating piston to keep the nitrogen charge and shock oil separate. Bottom-out control (BOC) intensifies compression damping during extreme impacts, offering up to 30 percent more damping force in the last quarter of travel, ensuring a balance between small bump sensitivity and the ability to withstand substantial hits. With a focus on adaptability, the FOX Performance Elite Series 2.5 shocks transform your vehicle’s handling across any terrain. Their direct bolt-on design makes upgrading straightforward, enhancing your riding experience by catering to individual preferences in damping.

Features:

  • Sold as a pair
  • Piggyback reservoir
  • 7/8” hard-chromed shaft
  • Redundant seal pack
  • Dual-Speed Compression (DSC)
  • 2.5” Aluminum body
  • Bottom-out control (BOC)
  • BOC increases damping force up to 30 percent through the final 25 percent of travel
  • PTFE-lined spherical bearings
  • Fully re-buildable and re-valvable
  • Wide-range rebound

Adjustments / Technical Information:

  • Front Extended Length: 24.70
  • Front Compressed Length: 17.65
  • Front Travel: 7.05
  • Rear Extended Length: 25.20
  • Rear Compressed Length: 16.85
  • Rear Travel: 8.35
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Reservoir: Piggyback
Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style Front J&P Cycles Item #10437745 Catalog Number10437745 Store Sku MFR. Product #885-08-528-4 AvailabilityOnly 2 Left: Ships within 24 hours
Product Style Rear J&P Cycles Item #10437746 Catalog Number10437746 Store Sku MFR. Product #885-08-530-4 AvailabilityOnly 2 Left: Ships within 24 hours

This product DOES NOT FIT your 2006 Suzuki DR-Z400SM

This Product Fits
Polaris
General XP 4 1000 EPS DLX 2020, 2021, 2022
General XP 4 1000 EPS DLX Factory Custom w/Ride Command 2021
General XP 4 1000 EPS DLX Pursuit Edition 2021
General XP 4 1000 EPS DLX w/Ride Command 2022
General XP 4 1000 Premium 2023, 2024
General XP 4 1000 Sport 2023, 2024
General XP 4 1000 Trailhead Edition 2022
General XP 4 1000 Troy Lee Designs Edition 2022
General XP 4 1000 Ultimate 2023, 2024
Product Description
Part Numbers
Fitment
