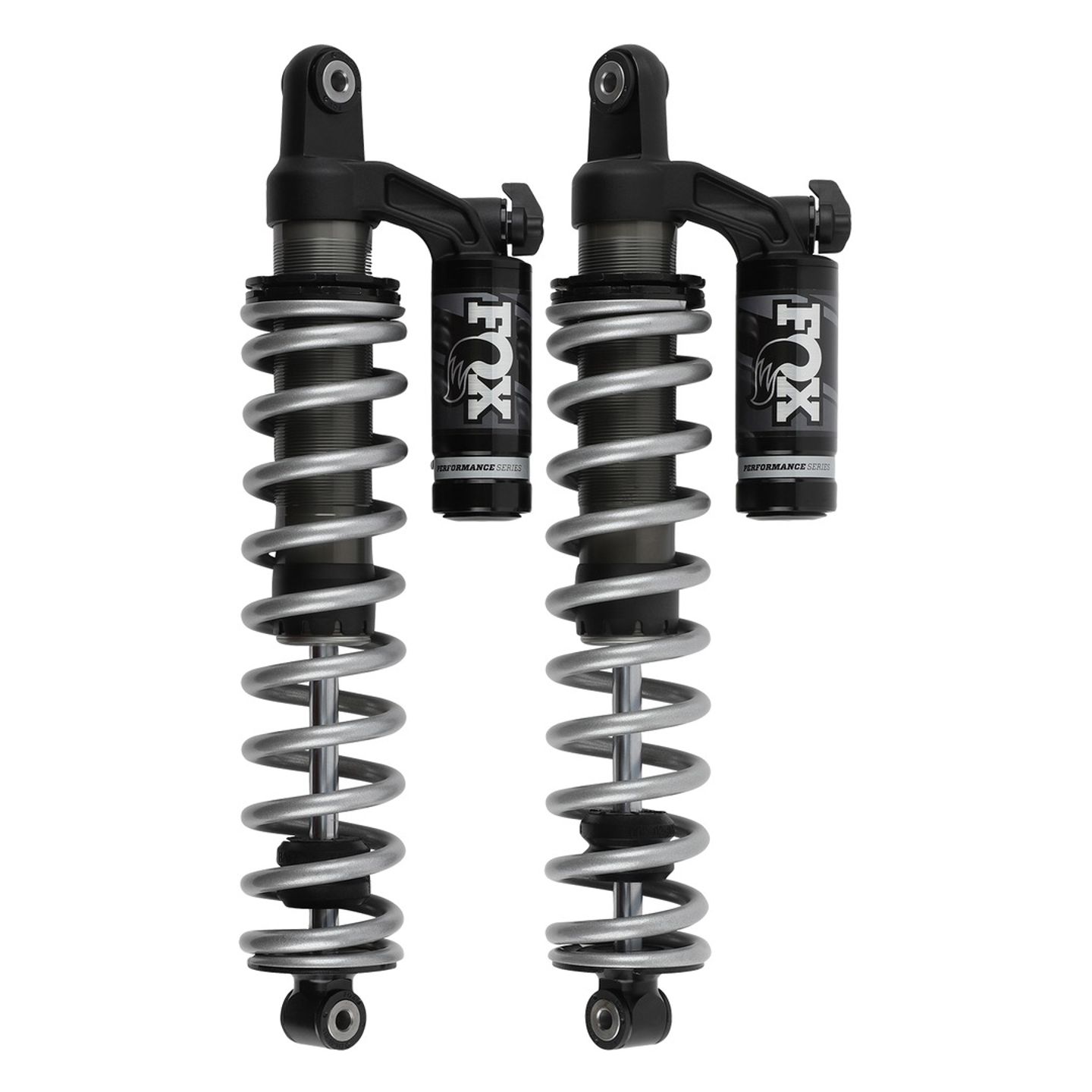

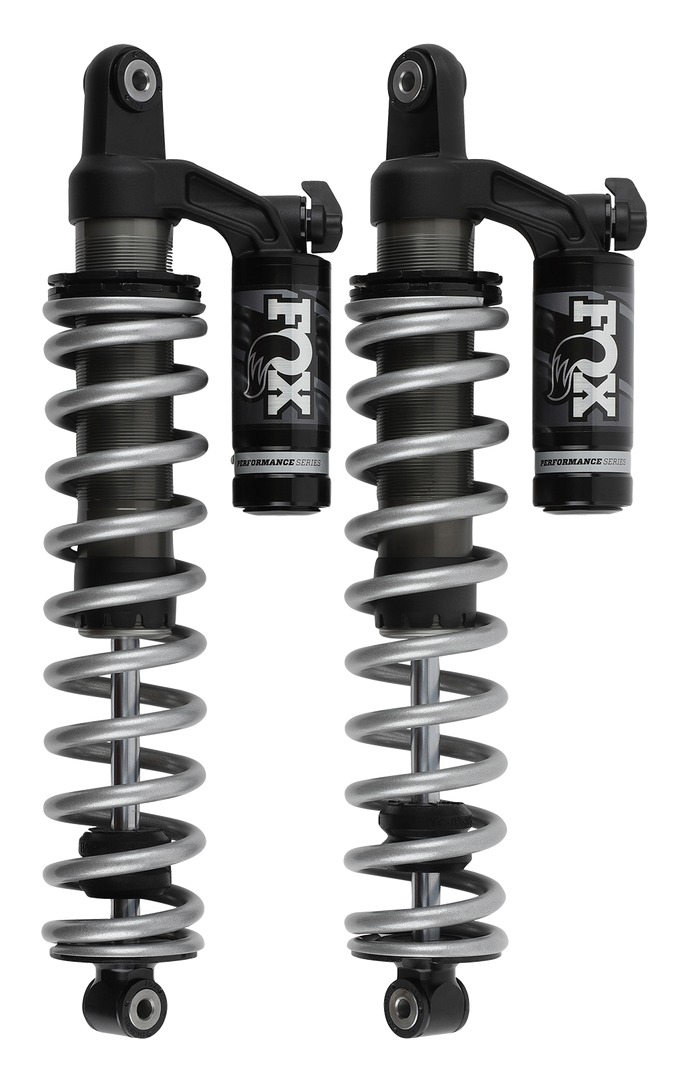

Fox Factory Performance Series 2.0 Coil-Over QS3 Shocks Honda Pioneer 1000-5 2016-2024

Fox Factory Performance Series 2.0 Coil-Over QS3 Shocks Honda Pioneer 1000-5

The FOX Performance Series 2.0 Podium QS3 shock kit provides an ideal upgrade for UTV and Side-by-Side vehicles, offering superior damping control thanks to its internal floating piston (IFP) in the piggyback reservoirs, which effectively keeps the gas charge separate from the shock oil to maintain viscosity under various conditions. With single-rate front springs and dual-rate rear springs, the kit enhances comfort and prevents bottoming out on rough terrain, ensuring smooth and reliable performance across different environments. Featuring the Quick Switch 3 (QS3) technology, the shocks offer a three-position compression damping adjustment to cater to varying riding demands: from a softer ride on gentle trails to firmer settings for carrying extra load, and the maximum protection for aggressive riding such as dune jumping or desert racing. The FOX Podium 2.0 QS3 shocks are also built to last, with hard-anodized aluminum bodies, corrosion-resistant reservoirs, 5/8-inch hard chromed shafts for smooth operation, and the capacity for full rebuilds to customize or repair as needed for long-term reliability.

Features:

• Sold as a pair
• High-flow velocity-sensitive damping
• Fully re-buildable and re-valvable
• Ultra-durable bottom-out bumper
• 2.0” Type III hard-anodized aluminum body and reservoir
• 5/8” hard-chromed shaft
• Standard or Heavy-Duty spring rate
• Adjustable spring load

Adjustments / Technical Information:

• Front Extended Length: 19.65
• Front Compressed Length: 13.75
• Front Travel: 5.90
• Rear Extended Length: 20.00
• Rear Compressed Length: 14.00
• Rear Travel: 6.00
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Replaces Fox Factory Part Number: 885-06-140
