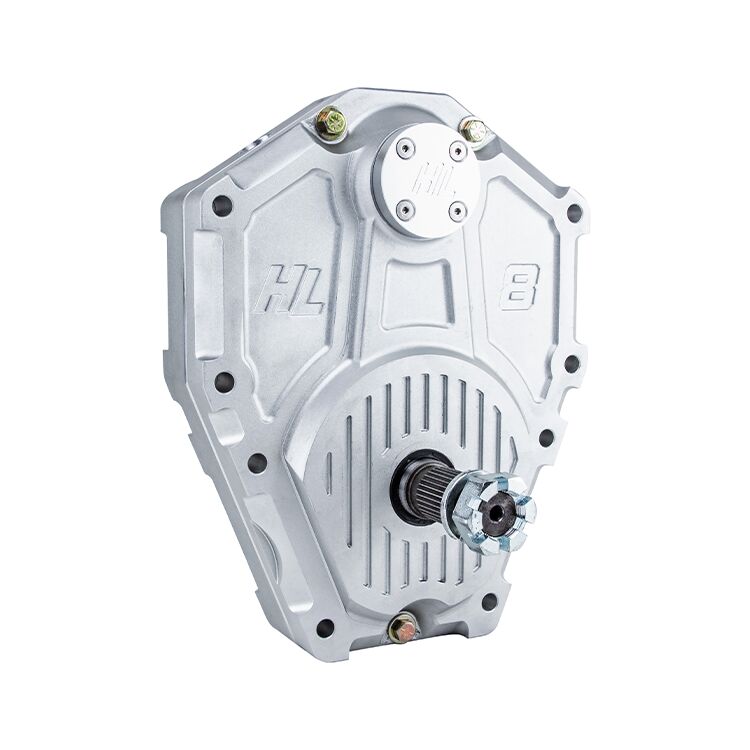

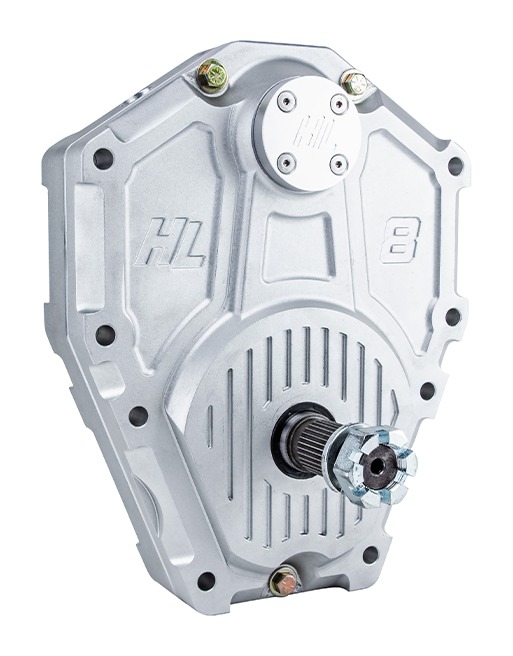

High Lifter 8" Portal Gear Lift

High Lifter 8" Portal Gear Lift

Elevate your ride with High Lifter's Portal Gear Lifts. These are developed with a dual idler system, offering a 50-60% gear reduction that enables the user to manage most obstacles without the need for drivetrain alterations. The product is crafted with an intentionally clocked backing plate, allowing for the accommodation of larger tires and providing extra fender clearance for a jam-free experience. This ensures that your UTV/Side-by-Side stays on track even in muddy conditions.

Features:

• Each kit includes 4 portal boxes
• Forged Gear Boxes
  • Process of forging eliminates the occurrence of porosity and cavities
  • Stronger than both cast and billet aluminum
• Brake lines
  • No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
  • Large advantage for Can-Am owners!
• Gear Box Venting
  • Customers asked for box venting, and we give you the option
  • Our box design offers a plug for venting with an optional easy to install kit that will be available soon
  • Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
• Gasket Material and Design
  • High density Kevlar fiber gaskets plus no additional sealant is needed
  • Gasket material is creep resistant plus oil and coolant resistant
• Seals
  • Two oil seals on the spindle shaft for 100% more sealing area
  • Dual seals prevent water intrusion and oil leaks
  • True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
• Backing Plate
  • These are the strongest backing plates on the market
  • 5/16” steel plate with bent flanges for strength and durability
  • Welded gusset brackets and designed to factory off-set
  • Works with all control arms that are built to factory hub specifications
  • Backing plates have an offset or “CLOCKED” 5” forward & rearward so you can run BIG tires and not interfere with your clearance!
• 13” Rotor
  • Precision ground stainless steel rotors (this is a big deal for brake performance)
  • Access holes for ease of assembly and disassembly
  • Slotted rotor allows for heat dissipation and cooling
• Gear Profile
  • Alloy steel heat treating process increases overall internal and external strength
  • CNC precision ground machining ensures excellent fitment and increased strength
  • Controlled gear lapping for ease of installation and a quieter performance
