High Lifter Alignment Kit

High Lifter Alignment Kit

This Alignment Kit by High Lifter is a must-have tool for your ATV or UTV. Made from steel and powder-coated in black, this alignment tool allows for easy and accurate measurements to adjust camber and toe, solving alignment issues. It helps prevent uneven tire wear, corrects offset steering wheels, and addresses steering pull while driving. Compatible with aftermarket adjustable front or rear control arms, this kit ensures your vehicle's alignment is spot on for optimal performance.

Features:

• Camber and toe alignment issues can be solved with High Lifter’s wheel alignment kit
• Allows for easy and accurate measurements to adjust the vehicles camber and toe

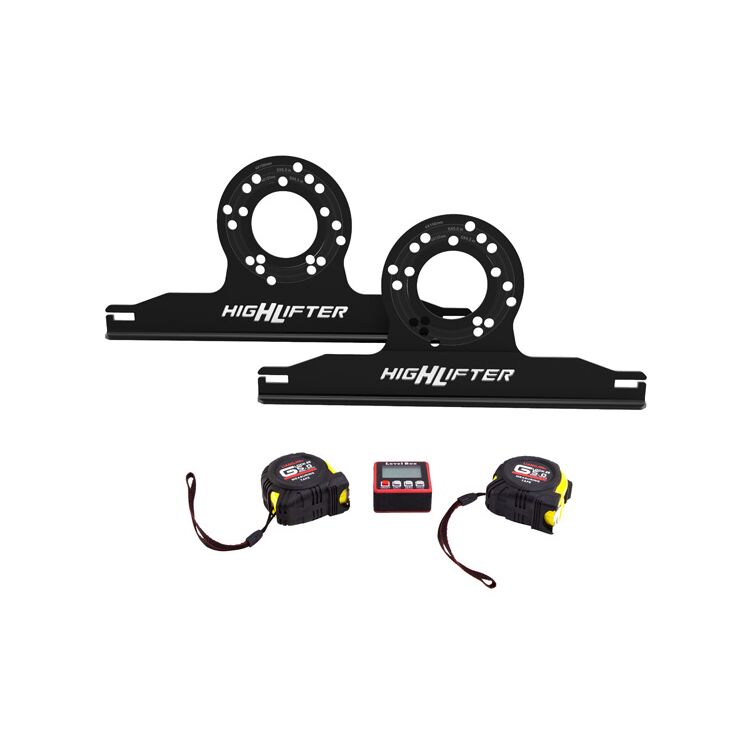

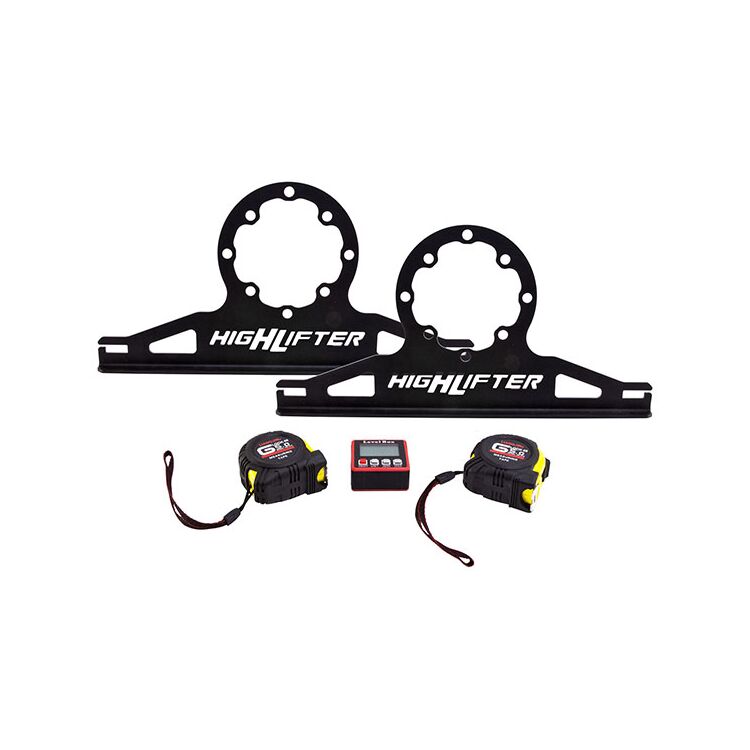

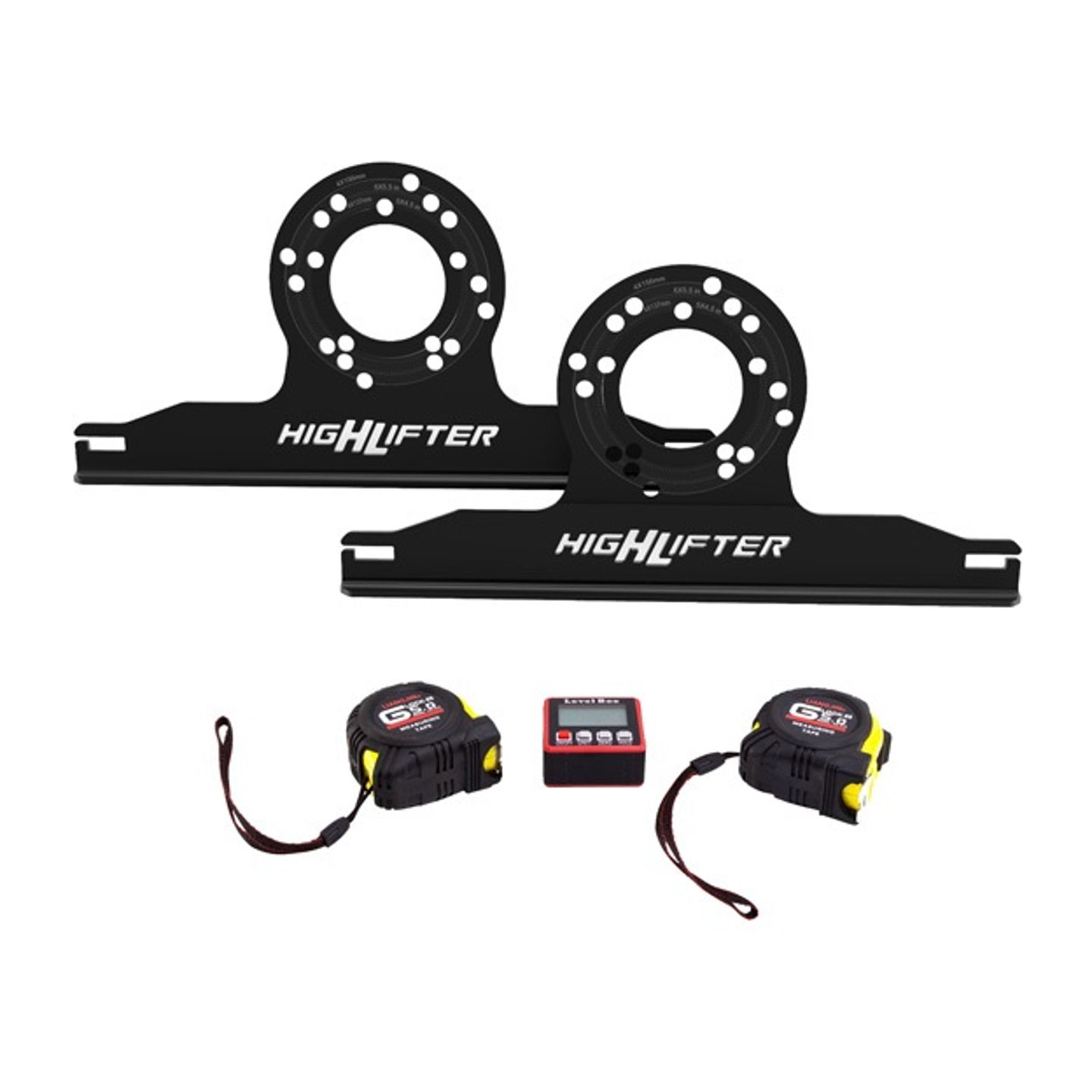

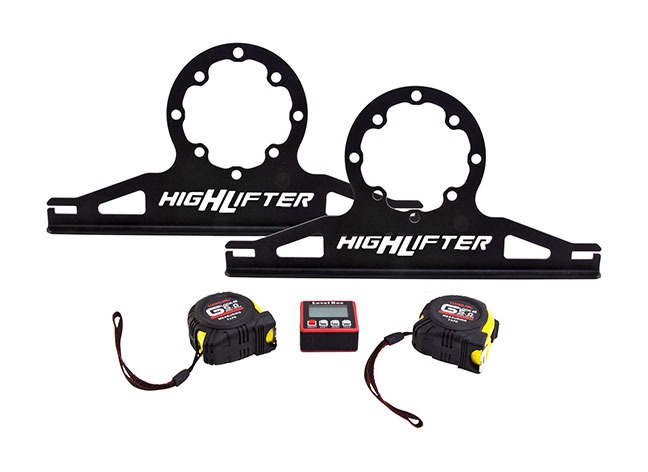

• Includes: 2 alignment plates, 2 tape measures and a digital angle finder
• Using both tape measures and the High Lifter wheel alignment plate gives the precision to adjust tie rods and move the tires in or out for perfect toe alignment
• High Lifter plates bolt on and measure from the hub, enabling more accurate measurements for toe adjustment
• Alignment plates are made from sturdy steel and are powder-coated to give a durable with an easy clean finish

Camber Measurement:

• Camber measurement is easy using the magnetic, digital angle finder
• The gauge is accurate to 0.1° and can be calibrated for non-level surfaces in seconds
• Has a large LCD for easy reading
• Tool produces a more accurate result than cheap bubble levels
• The angle finder comes with a complete set of instructions, detailing the features and how to use them

Easy to Use:

• 1 - Bolt plates to the hubs on each side, front or rear
• 2 - Measure toe directly using the 2 tape measures included in the kit
• 3 - Measure camber using the magnetic, digital angle finder that is provided in the kit

Benefits:

• Allows for camber/toe alignment changes in a garage or on the trail
• Adjust alignment to suit desired specifications
• Prevents uneven wear pattern on tires
• Corrects offset steering wheel
• Corrects steering pull while driving

Bolt Pattern & Stud Size/Thread Pitch applications:

• 4/137 (10 mm x 1.25)
• 4/137 (12 mm x 1.25)
• 4/137 (12 mm x 1.5)
• 4/156 (3/8-24)
• 4/156 (10 mm x 1.25)
• 4/156 (12 mm x 1.5)
• 4/156 (12 mm x 1.25)

The plates provided are designed to fit most UTV hub/bolt patterns. Simply attach the plates to the hub and secure them with the lug nuts. If you have non-adjustable arms, High Lifter offers an adjustable camber alignment bushing kit for many Polaris models. For use of toe adjustment without adjustable arms or bushings. For use with aftermarket adjustable front or rear control arms. Vehicle should be aligned after replacing suspension components (tie rods, control arms, etc.).
