High Lifter Alignment Kit Tool with Casters v.2

High Lifter Alignment Kit Tool with Casters v.2

The High Lifter Alignment Kit helps prevent uneven tire wear, correct offset steering wheels and address steering pull. Built from durable steel with a black powder-coated finish, it allows precise camber and toe adjustments to resolve common alignment issues. It is compatible with aftermarket adjustable control arms and helps optimize vehicle alignment for consistent performance. The included plates fit most ATV and UTV hub and bolt patterns, attaching easily to the hub and securing with lug nuts. For Polaris models with non-adjustable arms, High Lifter also offers an adjustable camber alignment bushing kit that allows toe adjustment without extra parts. Realignment is recommended after replacing suspension components. The High Lifter Alignment Kit is an essential tool for maintaining an ATV or UTV.

Features:

• Nylon casters allow for accurate measurements at normal ride height
• Camber and toe alignment issues can be solved with High Lifter’s wheel alignment kit
• Allows for easy and accurate measurements to adjust the vehicles camber and toe

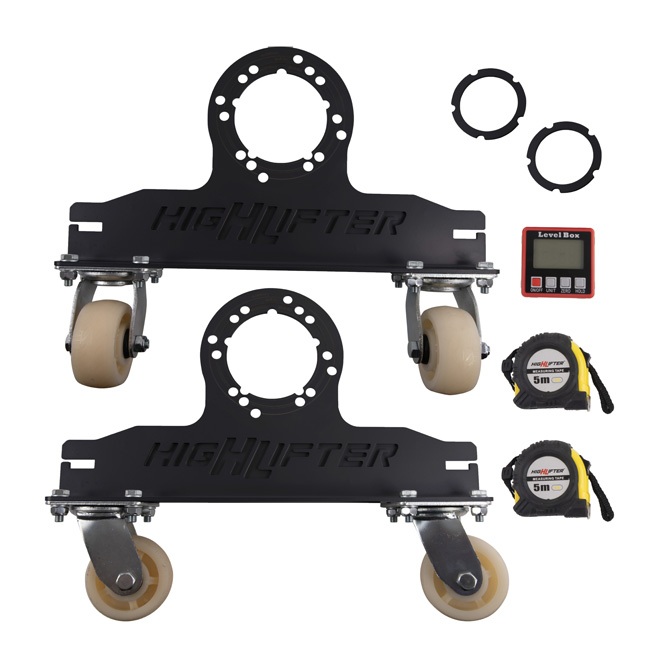

• Includes: 2 alignment plates, 2 tape measures and a digital angle finder, Heavy-duty nylon casters
• Using both tape measures and the High Lifter wheel alignment plate gives the precision to adjust tie rods and move the tires in or out for perfect toe alignment
• High Lifter plates bolt on and measure from the hub, enabling more accurate measurements for toe adjustment
• Alignment plates are made from sturdy steel and are powder-coated to give a durable with an easy clean finish

Camber Measurement:

• Camber measurement is easy using the magnetic, digital angle finder
• The gauge is accurate to 0.1° and can be calibrated for non-level surfaces in seconds
• Has a large LCD for easy reading
• Tool produces a more accurate result than cheap bubble levels
• The angle finder comes with a complete set of instructions, detailing the features and how to use them

Easy to Use:

• 1 - Bolt plates to the hubs on each side, front or rear
• 2 - Measure toe directly using the 2 tape measures included in the kit
• 3 - Measure camber using the magnetic, digital angle finder that is provided in the kit

Benefits:

• Allows for camber/toe alignment changes in a garage or on the trail
• Adjust alignment to suit desired specifications
• Prevents uneven wear pattern on tires
• Corrects offset steering wheel
• Corrects steering pull while driving

Bolt Pattern & Stud Size/Thread Pitch applications:

• Fits all current UTV and most ATV bolt patterns, including 5 and 6 lug
