We're sorry but all combinations for this product are currently out of stock.

You can be notified upon their arrival by choosing the options you are interested in and then entering your email in the box below.

Product Details

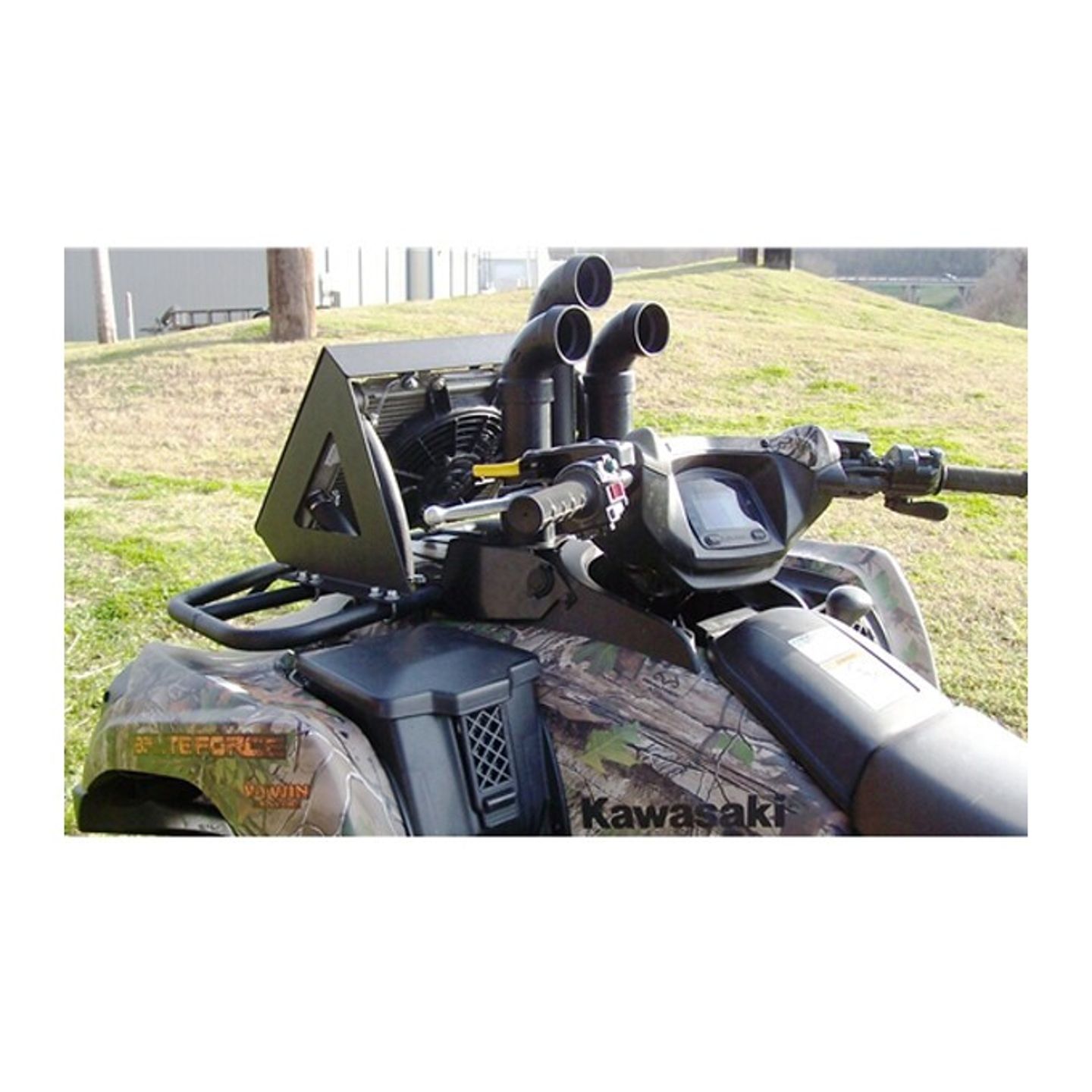

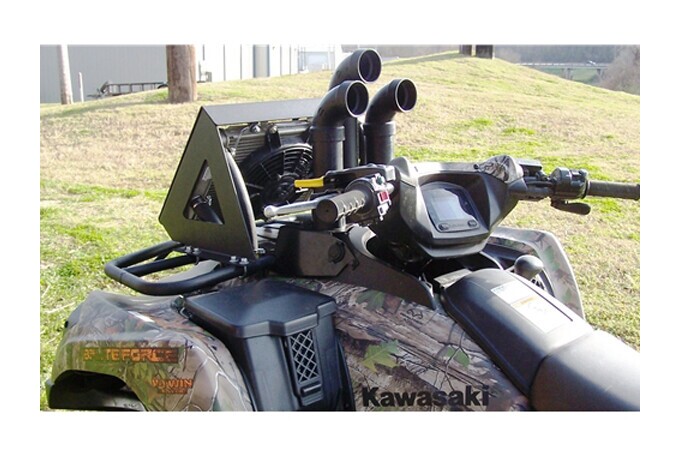

High Lifter Snorkel Kit Kawasaki Brute Force 750i

High Lifter Snorkel Kits outshine all in the ATV and UTV vehicle industry in quality and functionality. These kits excel in not just function alone, but also provide an OEM quality fit and finish, by use of HD vinyl tubing combined with high-temperature silicon hose facilitates optimal air intake.

The High Lifter kits employ a bellow system to shield vented components such as the differential, transmission, and clutch housing from incoming water. Other snorkel systems often fail due to heat and vibration, but High Lifter kits are built to resist leaks under such conditions. They achieve this with robust materials and rubber-mounted intake bracketry.

The aim of a snorkel kit is to deliver uncontaminated, dry air to the engine and other parts in ATVs and UTVs that need ventilation, including clutch, differentials, transmission, carburetors, and fuel tanks. However, it does not suggest that these vehicles should venture beyond the manufacturer's recommended maximum water line depth. A snorkel kit simply adds an additional safety measure for scenarios where the vehicle is unintentionally drowned in water deeper than the tolerance of the vehicle's air intakes. When considering to exceed water line depth, numerous factors need to be accounted for, and the High Lifter Snorkel Kits are merely one of those components.

Features:

  • Provides clean, dry air to the engine and other parts needing venting
  • Prevents mud, water and debris from entering the engine and clutch housings (when equipped)
  • Bellows allow the differential and transmission air to expand and contract without the need for long vent lines that can easily get plugged with mud or be pulled off
  • Each Kit is engineered and cut to fit your specific application
  • Kit includes all hardware needed to properly snorkel your ride
  • Custom powder coated riser bracket to keep risers straight, evenly spaced and looking good
  • Rubber mounted snorkel routing brackets to dampen vibration
  • Heavy-duty, thick-walled vinyl intake tubing
  • High heat silicone hose used in critical areas
  • Bellows to keep water out of differentials and transmission
  • Step-by-step instructions complete with detailed photos
  • Additional Ultra Black silicone sealant, medium silicone and dielectric grease are optional but recommended for installation and future preventive maintenance

Note:  Cutting / trimming some body plastics is required to install this kit. When installing the snorkel kit, you are altering the airflow to the carburetor / throttle body and a jet kit or EFI programmer may or may not be required once the kit is installed.

Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style High Lifter Snorkel Kit Kawasaki Brute Force 750i 2016-2020 J&P Cycles Item #10163854 Catalog Number10163854 Store Sku MFR. Product #71-10998 AvailabilityOut of Stock

This product DOES NOT FIT your 2012 Suzuki GSX1250FA

This Product Fits
Kawasaki
Brute Force 750 4x4i 2016, 2017, 2018, 2019, 2020
Brute Force 750 4x4i EPS 2016, 2017, 2018, 2019, 2020
Brute Force 750 4x4i EPS Camo 2016, 2017, 2018, 2019, 2020
This item is also available for 141 different vehicles. View All Models
Can-Am
Defender HD10 2016-2019
Defender HD10 DPS 2016-2019
Defender HD10 XT 2016-2019
Defender HD8 2016-2019
Defender HD8 DPS 2016-2019
Defender HD8 XT 2017-2019
Defender MAX HD10 2017-2019
Defender MAX HD10 DPS 2017-2019
Defender MAX HD10 Lone Star 2018-2019
Defender MAX HD10 XT 2017-2019
Defender MAX HD8 2017-2019
Defender MAX HD8 DPS 2017-2019
Defender MAX HD8 XT 2017-2019
Defender Mossy Oak Hunting Edition HD10 2017-2019
Defender XT Cab HD8 2017-2019
Honda
Pioneer 1000 2016-2021
Pioneer 1000-5 2016-2021
Pioneer 1000-5 Deluxe 2016-2021
Pioneer 1000-5 LE 2017-2021
Pioneer 1000 Deluxe 2020-2021
Pioneer 1000 LE 2017-2021
Rancher 420 2x4 ES TRX420TE 2010-2013
Rancher 420 2x4 ES TRX420TE1 2012
Rancher 420 2x4 TRX420TM 2010-2013
Rancher 420 4X4 TRX420FM 2010-2013
Rancher 420 4x4 w/EPS TRX420FPM 2010-2013
Rancher 420 AT TRX420FA 2010-2014
Rancher 420 AT w/EPS TRX420FPA 2010-2013
Rancher 420 ES 4x4 TRX420FE 2010-2013
Rancher 420 ES w/EPS TRX420FPE 2010-2013
Polaris
General 1000 EPS 2016-2020
General 1000 EPS DLX 2016-2022
General 1000 EPS Premium 2018-2024
General 1000 EPS Sport 2020-2024
General 1000 EPS w/Ride Command 2017-2022
General 4 1000 EPS 2017-2019
General 4 1000 EPS DLX 2020-2021
General 4 1000 EPS Premium 2020-2022
General 4 1000 EPS w/Ride Command 2018-2022
Ranger 1000 2020-2025
Ranger 1000 EPS 2020-2025
Ranger 1000 EPS Premium 2021
Ranger 1000 EPS Winter Prep 2020
Ranger 1000 Premium 2021-2022
Ranger 1000 Premium Winter Prep Package 2022
Ranger Crew 1000 2020-2025
Ranger Crew 1000 EPS 2020
Ranger Crew 1000 EPS Premium 2021-2022
Ranger Crew 1000 EPS Premium 2024-2025
Ranger Crew 1000 EPS Winter Prep 2020-2022
Ranger Crew 900 2016
Ranger Crew 900-6 EPS 2016
Ranger Crew 900 EPS 2016
Ranger Crew XP 1000 EPS 2019-2021
Ranger Crew XP 1000 EPS 2017-2018
Ranger Crew XP 1000 EPS Back Country Edition 2019
Ranger Crew XP 1000 EPS Premium 2019-2023
Ranger Crew XP 1000 EPS Texas Edition 2020-2025
Ranger Crew XP 1000 High Lifter 2019-2022
Ranger Crew XP 1000 Northstar Edition 2018-2021
Ranger Crew XP 1000 Northstar Edition Premium 2020-2025
Ranger Crew XP 1000 Northstar Edition Trail Boss 2022-2025
Ranger Crew XP 1000 Northstar Edition Ultimate 2020-2025
Ranger Crew XP 1000 Northstar Edition Ultimate MB Quart Audio 2020
Ranger Crew XP 1000 Northstar Edition w/Ride Command 2019-2020
Ranger Crew XP 1000 Premium w/Ride Command 2020-2021
Ranger Crew XP 1000 Waterfowl Edition 2025
Ranger Crew XP 1000 Winter Prep 2020
Ranger Crew XP 900 2017-2019
Ranger Crew XP 900 EPS 2017-2019
Ranger XP 1000 2021
Ranger XP 1000 2017
Ranger XP 1000 Big Game Edition 2021
Ranger XP 1000 EPS 2018
Ranger XP 1000 EPS 2017
Ranger XP 1000 EPS Back Country Edition 2019
Ranger XP 1000 EPS Northstar 2018-2021
Ranger XP 1000 EPS Northstar Edition w/Ride Command 2019-2020
Ranger XP 1000 EPS Premium 2019-2022
Ranger XP 1000 EPS Ride Command 2019
Ranger XP 1000 EPS Texas Edition 2020-2021
Ranger XP 1000 High Lifter Edition 2018-2022
Ranger XP 1000 Northstar Edition 2020-2021
Ranger XP 1000 Northstar Edition Premium 2020-2022
Ranger XP 1000 Northstar Edition Trail Boss 2021-2022
Ranger XP 1000 Northstar Edition Ultimate 2020-2022
Ranger XP 1000 Northstar Edition Ultimate MB Quart Audio 2020
Ranger XP 1000 Premium w/Ride Command 2020-2021
Ranger XP 1000 Trail Boss 2021-2022
Ranger XP 1000 Waterfowl Edition 2021
Ranger XP 1000 Winter Prep 2020
Ranger XP 900 2017-2019
Ranger XP 900 2013-2016
Ranger XP 900 EPS 2017-2019
Ranger XP 900 EPS 2013-2016
Ranger XP 900 EPS Browning 2013-2014
Ranger XP 900 EPS High Lifter Edition 2015-2016
Ranger XP 900 EPS Hunter Edition DLX 2015-2016
Ranger XP 900 EPS LE 2013-2014
Ranger XP 900 EPS Northstar Edition 2015-2016
Ranger XP 900 EPS Trail Edition 2016
Ranger XP 900 LE 2013-2014
RZR 900 2015-2019
RZR 900 EPS 2015-2019
RZR 900 EPS FOX Edition 2016
RZR 900 EPS XC Edition 2015-2017
RZR S 900 2015-2019
RZR S 900 EPS 2015-2019
RZR Trail 900 FOX Edition 2020
RZR Trail 900 Premium 2020
RZR Trail 900 Sport 2020
RZR XP 1000 EPS 2016-2019
RZR XP 1000 EPS Dynamix Edition 2019
RZR XP 1000 EPS High Lifter Edition 2016-2022
RZR XP 1000 EPS Trails and Rocks Edition 2018-2022
RZR XP 1000 EPS w/Ride Command 2017-2019
RZR XP 1000 Premium 2020-2023
RZR XP 1000 Sport 2021-2023
RZR XP 1000 Ultimate 2023
RZR XP 4 1000 EPS 2016-2019
RZR XP 4 1000 EPS Dynamix Edition 2019
RZR XP 4 1000 EPS High Lifter Edition 2016-2022
RZR XP 4 1000 EPS w/Ride Command 2018-2019
RZR XP 4 1000 Premium 2020-2023
RZR XP 4 1000 Premium w/Ride Command 2020-2021
RZR XP 4 1000 Sport 2021-2023
RZR XP 4 1000 Ultimate w/Ride Command 2023
Yamaha
Grizzly 700 2016
Grizzly 700 EPS 2016-2022
Grizzly 700 EPS Hunter 2016-2021
Grizzly 700 EPS LE 2017-2018
Grizzly 700 EPS LTD 2016
Grizzly 700 EPS SE / LTD 2016-2022
Grizzly 700 EPS XTR 2020
Grizzly 700 EPS XT-R 2022
Grizzly 700 Hunter 2016
Kodiak 700 2016-2019
Kodiak 700 EPS 2016-2019
Kodiak 700 EPS Hunter 2016-2019
Kodiak 700 EPS SE 2016-2019
Kodiak 700 Hunter 2016-2019
