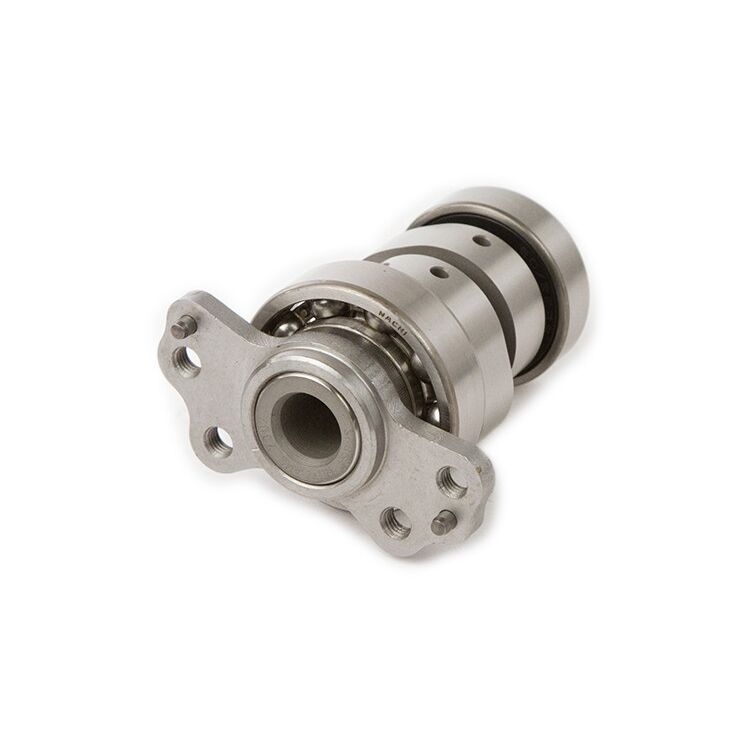

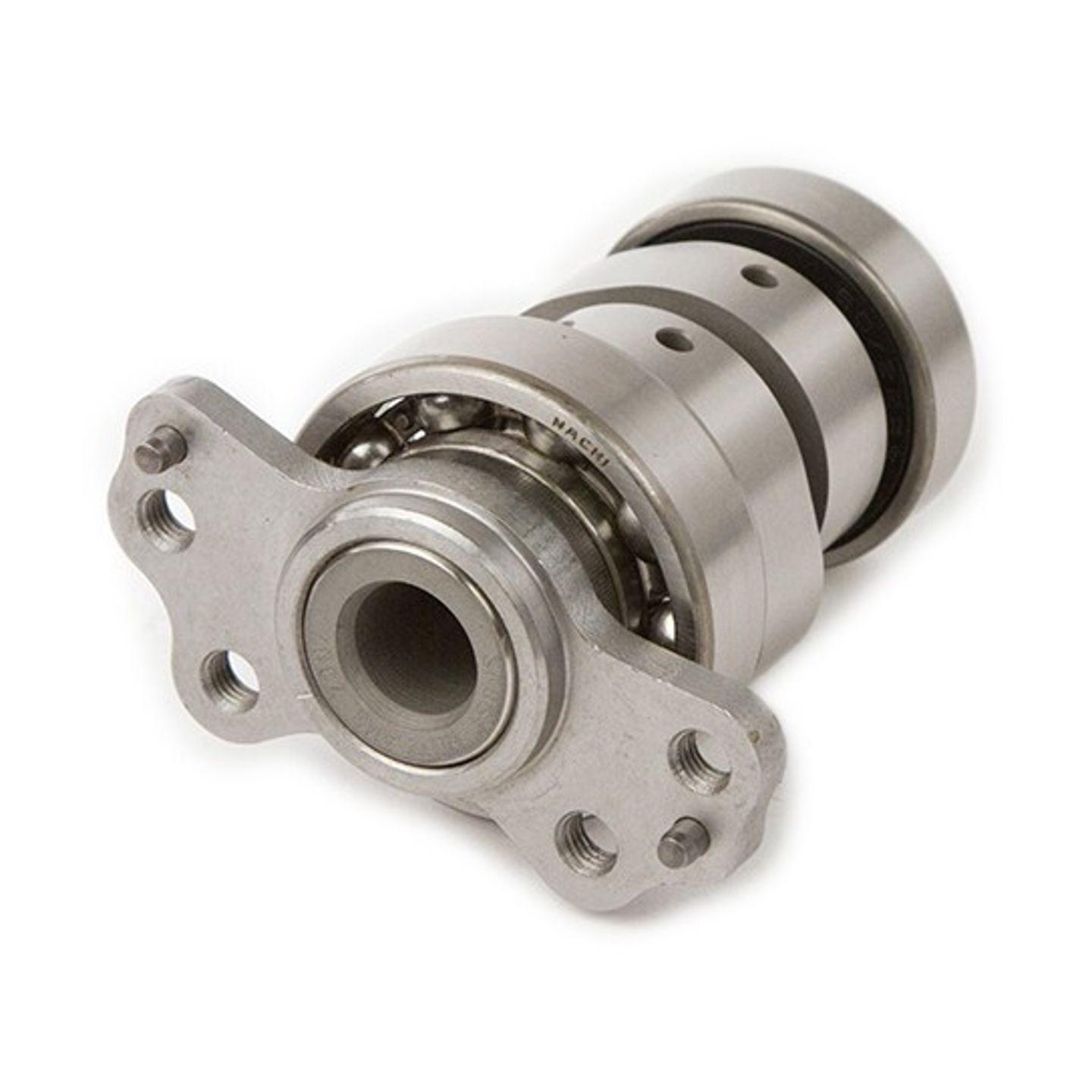

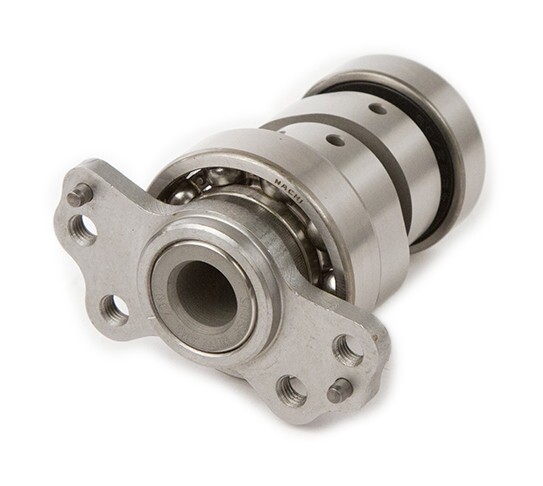

Hot Cams Racing Camshaft Single Cam Stage 2 Yamaha Raptor 700
The Hot Cams Stage 2 Racing Camshaft is designed for riders seeking enhanced top-end power and mid-range performance boosts without the hassle of complex modifications. It's a straightforward, bolt-in solution that often works with stock valve springs and rockers, eliminating the need for a core charge or extensive modifications. The camshaft comes with adjustable sprockets, allowing for precise fine-tuning to suit individual riding preferences, leading to noticeable improvements in throttle response and engine efficiency.
Features:
- Improves Top End over Stage 1
- Mid-range gain over Stage 1
- High performance racing camshaft
- No core required
- Designed to be use with stock valve springs and rockers on most applications (unless noted)
- Adjustable cam sprockets supplied (model specific)
- Improved throttle response technology
- Improved intake charge and combustion cycle over stock
Specifications:
- Exhaust Cam Lobe Center: 102.500
- Exhaust Cam Lobe Duration at 1mm: 243
- Exhaust Cam Lobe Lift: 8.600mm
- Exhaust Cam Valve Lash: 0.180mm
- Intake Cam Lobe Center: 111
- Intake Cam Lobe Lift: 10.300mm
- Intake Cam Valve Lash: 0.100mm
- Intake Lobe Duration at 1mm: 260
| Product Style | J&P Cycles Item # | Catalog Number | Store Sku | MFR. Product # | Availability |
|---|---|---|---|---|---|
| Product Style Stage 2 | J&P Cycles Item #10508282 | Catalog Number10508282 | Store Sku | MFR. Product #4065-2 | AvailabilityIn Stock: Ships within 24 hours |
This Product Fits
- Yamaha
- Raptor 700 2006, 2008
- Raptor 700 50th Anniversary 2006
- Raptor 700 GYTR 2007
- Raptor 700 SE 2007, 2008
This item is also available for 41 different vehicles.
View All Models
- Honda
- CRF450R 2002-2006
- CRF450X 2005-2007
- Sportrax 450 TRX450ER 2006-2007
- Sportrax 450 TRX450ER 2008-2014
- Sportrax 450 TRX450R 2004-2009
- Polaris
- Hawkeye 400 HO 2x4 2011-2013
- Hawkeye 400 HO 2x4 HD 2013-2014
- Ranger 400 Mid Size 2010-2014
- Ranger 500 Carb Mid Size 2x4 2008-2009
- Ranger 500 Carb Mid Size 4x4 2007
- Ranger 500 EFI Mid Size 4x4 2006-2007
- Ranger 500 EFI Mid Size 4x4 LE 2006
- Ranger 500 Mid Size 2x4 2006
- Scrambler 500 4x4 2004
- Sportsman 400 HO 2008-2014
- Sportsman 450 2006-2007
- Sportsman 500 EFI 2006-2009
- Sportsman 500 HO 2001-2012
- Sportsman 500 HO HD 2013
- Sportsman 6x6 500cc 2001-2008
- Sportsman Touring 500 EFI 2008-2009
- Sportsman Touring 500 HO 2010-2013
- Yamaha
- Grizzly 700 2007-2013
- Grizzly 700 Ducks Unlimited 2007-2008
- Grizzly 700 EPS 2008-2013
- Grizzly 700 EPS Ducks Unlimited 2009
- Grizzly 700 EPS Hunter 2008-2013
- Grizzly 700 EPS SE / LTD 2009-2011
- Grizzly 700 Hunter 2007-2013
- Grizzly 700 Outdoorsman Edition 2007
- Grizzly 700 SE 2007-2008
- Raptor 350 2004-2006
- Raptor 350 SE 2005-2006
- Raptor 660R 2001-2005
- Raptor 660R LE 2002-2004
- Raptor 660R SE 2005
- Raptor 700 2013-2024
- Raptor 700R 2009-2024
- Raptor 700R SE 2012-2024
- Raptor 700 SE 2009-2010
- Warrior 350 2000-2004
