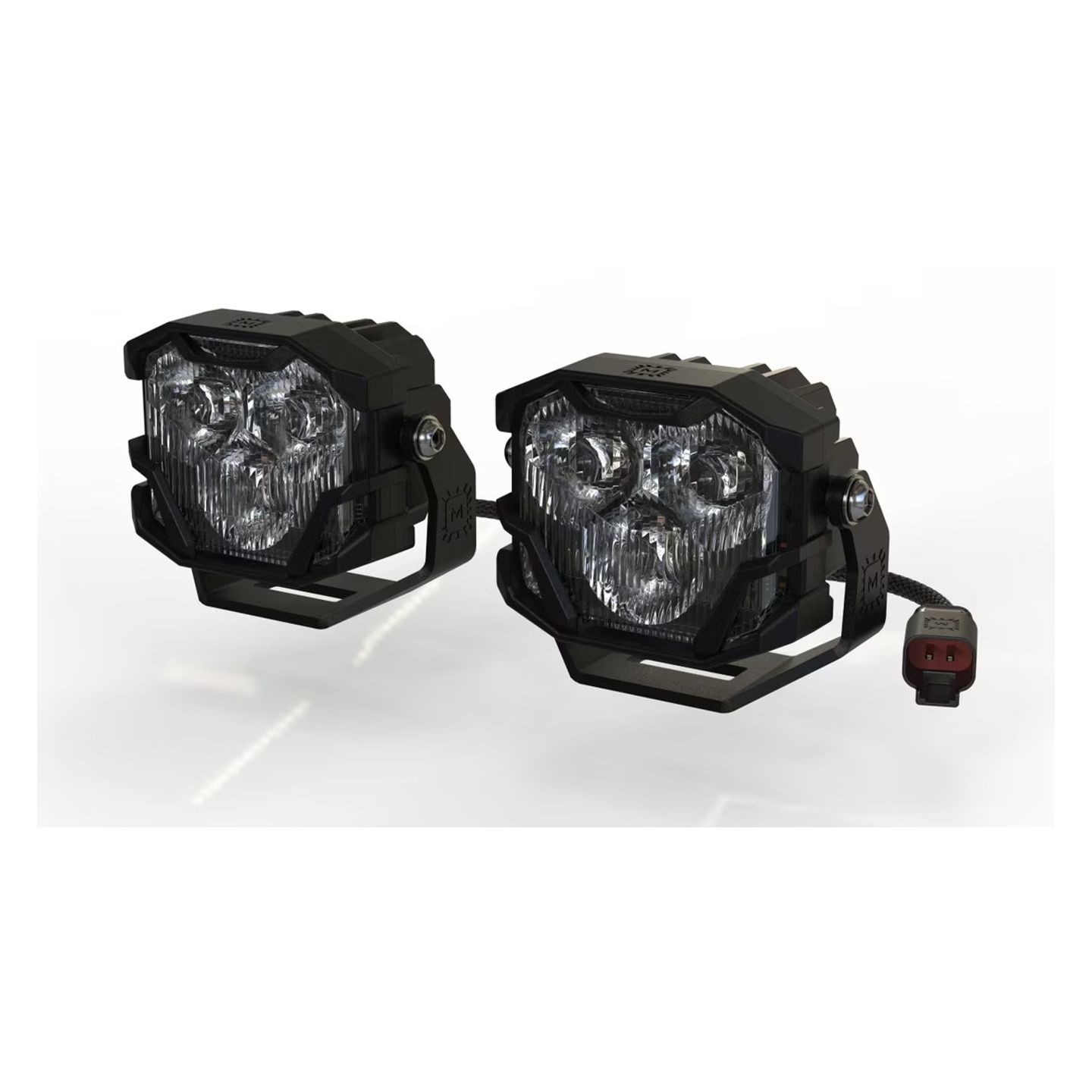

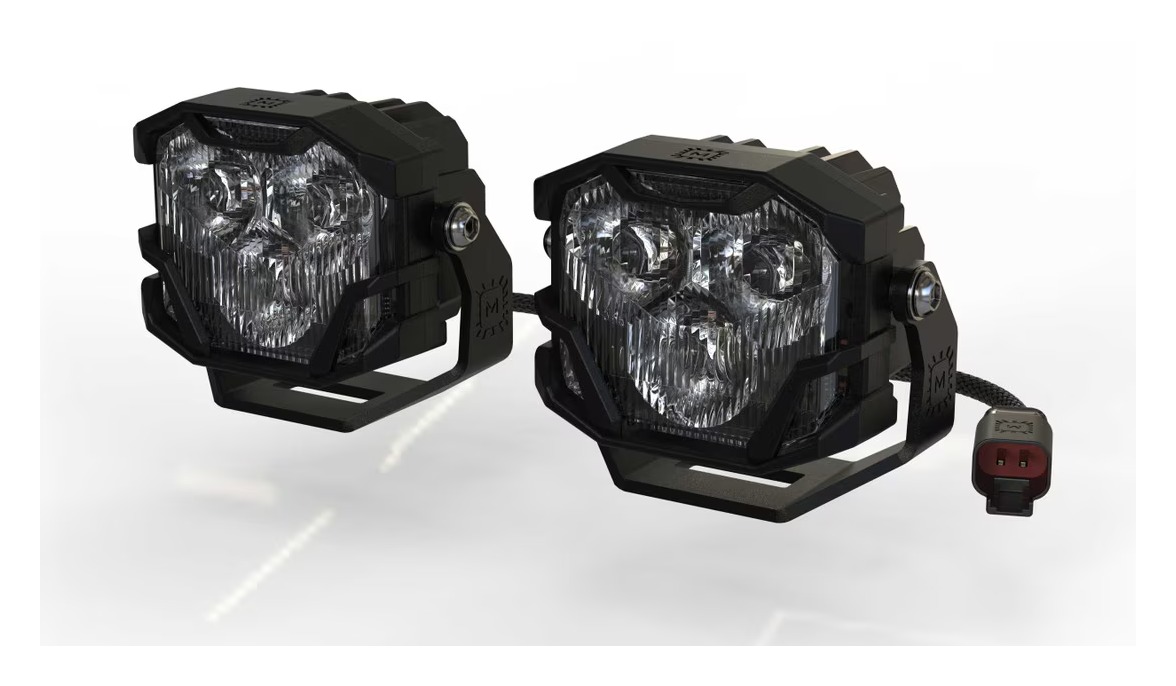

Morimoto 4Banger NCS LED Pods - Linkable

Morimoto 4Banger NCS LED Pods - Linkable

The 4Banger LED Pods developed by Morimoto set the bar high in off-road lighting. Every element from the brackets, hardware, to the wiring has been meticulously crafted to ensure superior performance, trustworthiness and elegance. The device featuring a white-output is perfect for enhancing visibility all around. For users navigating in challenging conditions such as fog, rain or snow, the Yellow-output version provides unparalleled visibility, thanks to its Phosphor-Converted Yellow LEDs. These LEDs generate a yellow light at the source which is proven to deliver impressive performance by cutting through atmospheric particles without affecting the overall light output. In need of an option compliant with traffic rules? The Spot and Combo beams, when appropriately angled, conform to SAE J581 standards for auxiliary high beams. For those seeking a better-performing, street legal LED pod suitable as a fog light, the NCS Wide beam models abide by SAE J583 standards. Choosing the perfect fit can be puzzling, but with a bit of attention paid to specific needs, the right decision comes fast enough.

NCS COMBO BEAM:

Illuminates a clear path with medium range. Great option for a flood beam. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat transfer. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger NCS Combo is an excellent aid to any set of high-performance headlights.

NCS SPOT BEAM:

Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance.

NCS WIDE BEAM:

Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W) and has also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light.  Each set of Morimoto 4Banger LED pods includes a set of pedestal mounts for universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and A-Pillars that make them bolt-on for many vehicles.

Features:

• Linkable to create a light bar
• Made with LucidShape to optimize performance
• Thermal Dynamics built in and optimized with SolidWorks
• Lumen-dense LEDs from Nichia
• Makrolon LED PC (Lens)
• Input voltage is 9-18V DC
• Power is at 20w
• Current level is1.5A @ 13.2V DC
• Input is 2-Pin w/ Pigtail
• Intensity levels-White:55,500 Cd (Post Warm-Up) (555lux @ 10m), Yellow:38,850 Cd (Post Warm-Up) (384lux @ 10m)
• Universal fit with Included U Brackets
• Includes one pair of Universal U-Shape Mounts and complete hardware for installation
• Hardware is made from stainless steel
• Powdercoated die cast aluminum housing
• The cast aluminum shell is electroplated before powder coating to withstand flaking.
• IP rating is IP68K (Dust / High Pressure Water Resistant)
• Dimensions 82mm W, 67mm H, 60mm D
• Sold as a pair
• 4Banger Switched Relay Harness or DT Connectors are sold separately
