Morimoto 6 Pod Output Switch Power Harness

Morimoto 6 Pod Output Switch Power Harness

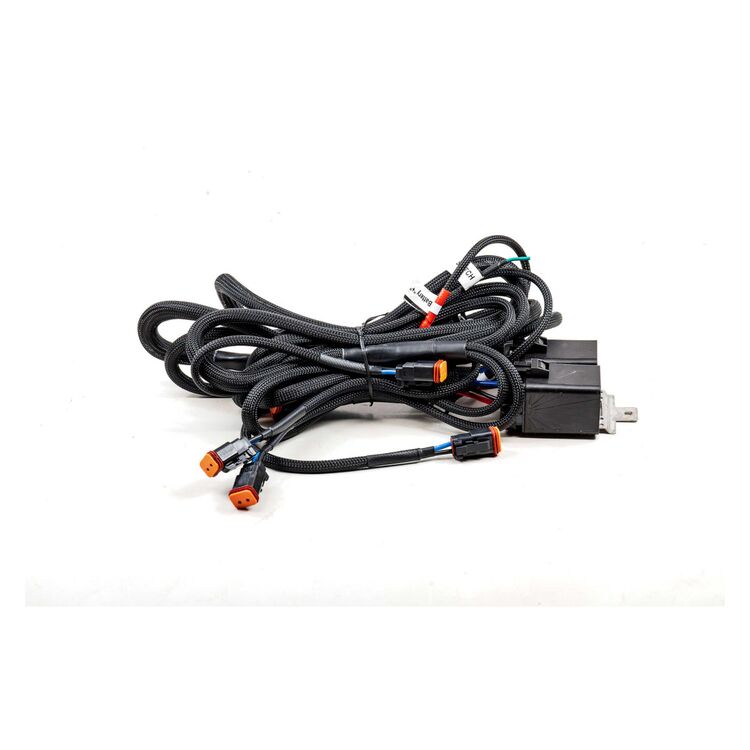

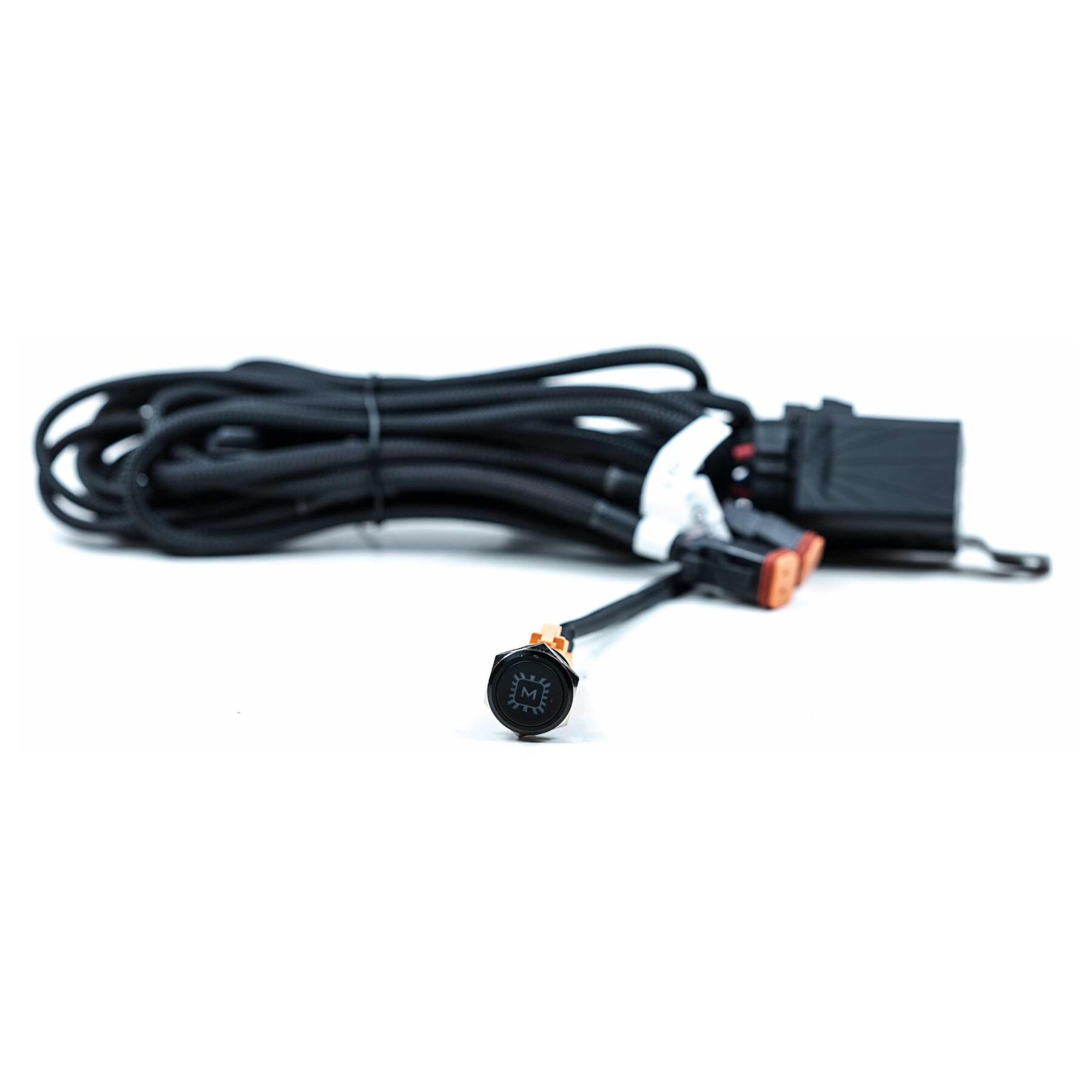

The Morimoto 6 Pod Power Harness showcases the exceptional quality synonymous with the Morimoto brand. No detail has been overlooked in the construction of this harness, with every component meticulously engineered for durability and performance. It features triple-sealed 4-pin relays with dual-hanger design and an over-molded inline fuse holder equipped with a 40A ATO fuse. The DT06-2S female outputs boast dual seals, while stainless steel power and ground terminals ensure long-term reliability. The harness also includes an M-Spec push button switch with Yellow-LED backlight for improved visibility.

Each wire in the properly sized 10 AWG copper wiring is shielded with black mesh insulation, and every connector is over-molded, sealed or protected with heavy-duty heat shrink. The layout of the connections enables powering up to three LED pods on each side of the vehicle, with six total outputs, including a positive battery terminal, ground terminal, and switch. The wiring for the in-cabin push button switch features an in-line barrel connector, significantly simplifying installation.

While designed specifically for Morimoto 4Banger LED pods, this harness is also compatible with any other off-road lighting setup that utilizes a DT-style two-pin input.

Features:

• Two triple sealed 40A M-Spec relay
• Switch is M-Spec with yellow backlight
• 6 pod DT06-2 Pin outputs
• Output wiring insulated 12 AWG copper
• Inputs with12V+/- ring terminals
• Input wiring insulated 10 AWG copper
• Stainless steel power and ground terminals
• Powers up to 5A per output
