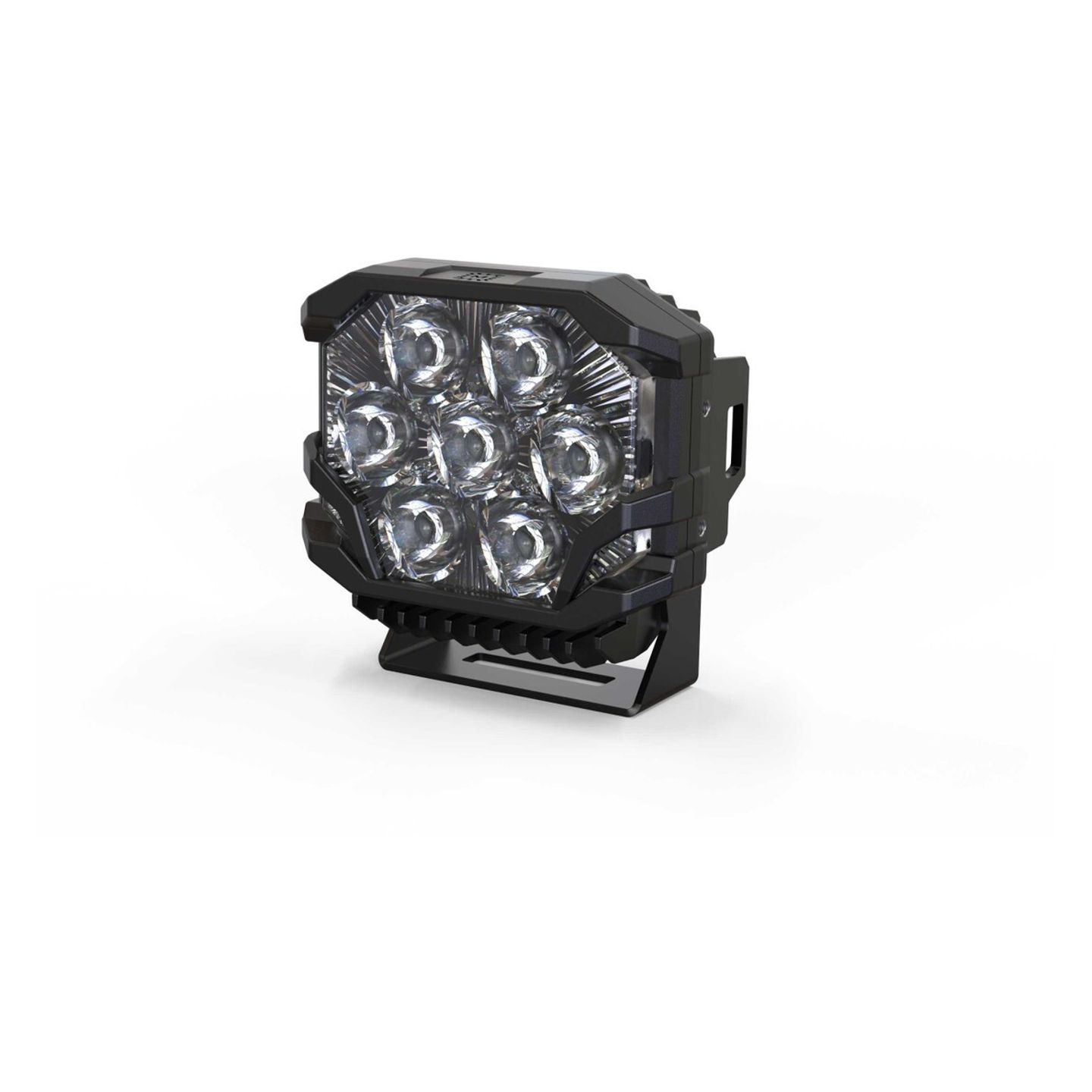

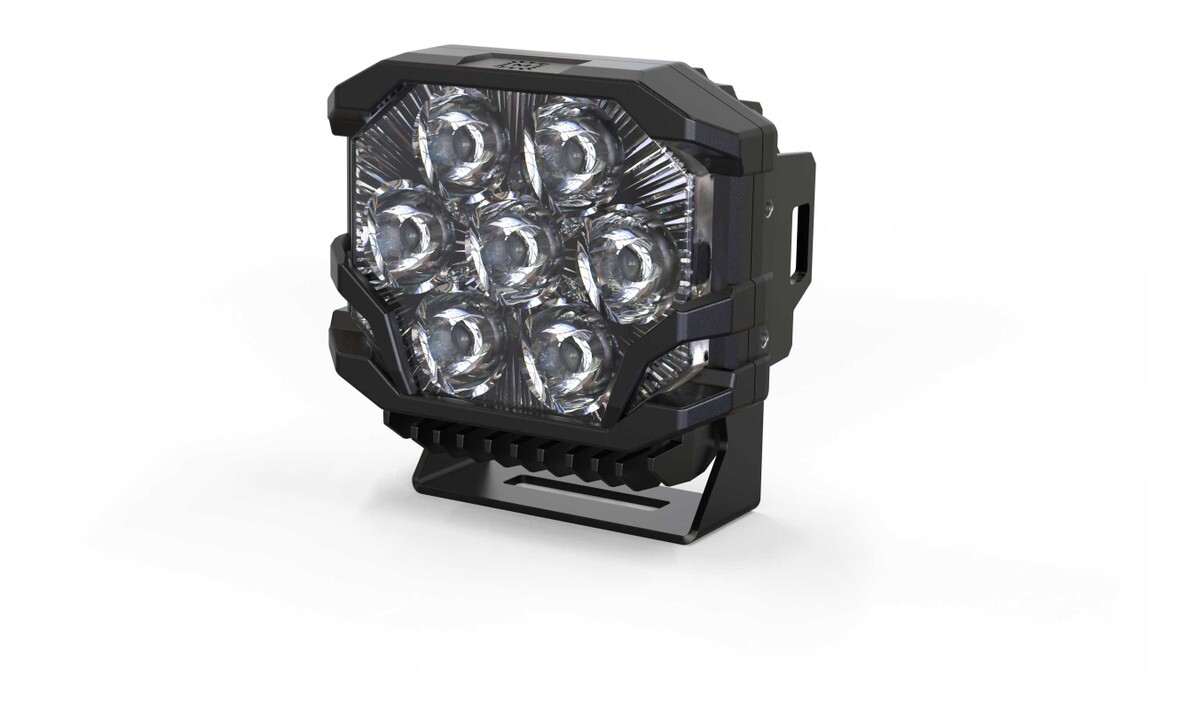

Morimoto BigBanger HXB LED Pod Light

Morimoto BigBanger HXB LED Pod Light

The Morimoto LED Light Pods from the Banger Series feature Makrolon polycarbonate lenses, which amplify the output of the lumen-rich Nichia and Osram LEDs, leading to an exceptional degree of light delivery. An aluminum weatherproof housing and a specifically designed copper DTP (direct thermal path) PCB work seamlessly together, ensuring maximal heat dissemination. This provides optimal performance and an extended lifespan, even in tough environments.

The light system reaches new heights in the HXB high-performance tier with extremely potent Osram LEDs. Each of the BigBanger HXB LED pods houses 12 amber backlight LEDs, in addition to 7 high-power LED chips; a configuration that generates over half a million Candela. Optional BigBanger Pod-Links and Bar-End Mounting Feet can be purchased separately, which combined creates the BangerBar; a formidable, custom-configured high-power lightbar.

Specifications:

• Raw Lumens: 7000
• Operating Voltage: 9-18V DC
• Power: HXB 77W, Backlight 16.5W (High) / 3.8W (Low)
• Current Draw: 5.7A @ 13.5V DC
• Pod Dimensions (W x H x D): 154mm x 137.7mm x 76.1mm
• IP Rating: IP69K (Dust / High Pressure Water Resistant)

Features:

• Spot or Combo Beam optics

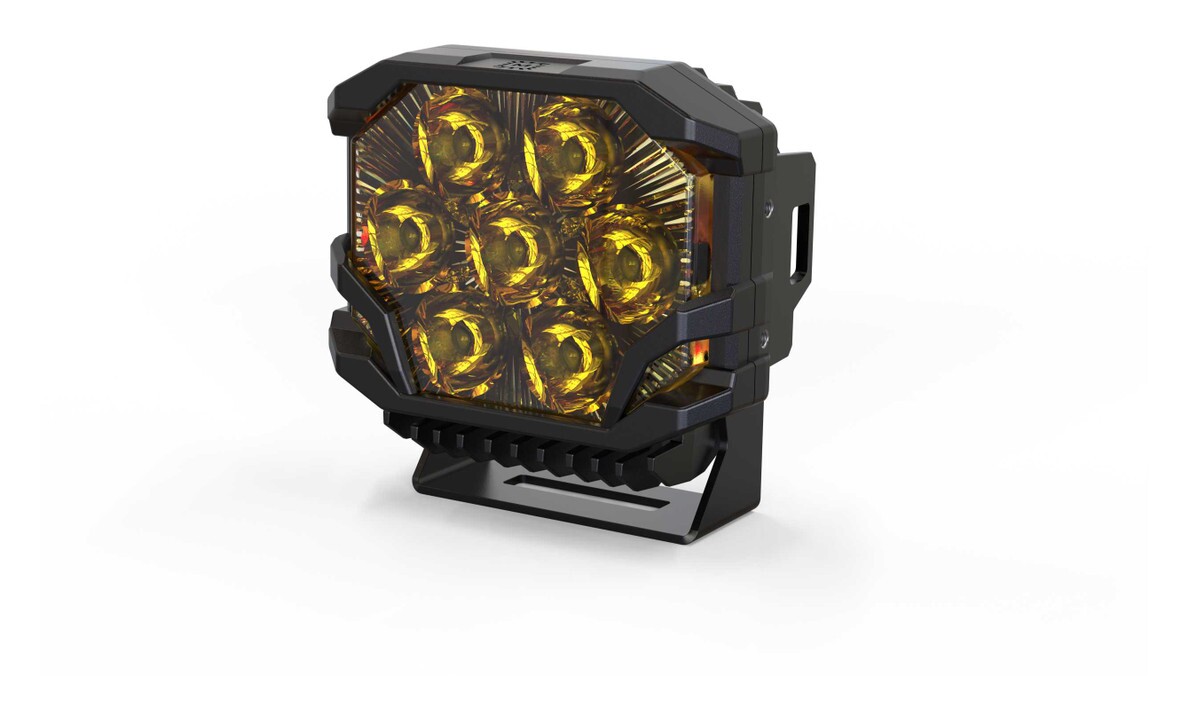

• Amber backlighting
• High performance Makrolon polycarbonate lens
• Optimized thermal dynamics
• Powdercoated die cast aluminum housing
• Shell is electroplated before powder coating to strengthen the finish and resist flaking
• Universal fit with included U-Brackets for stand alone application
• Stainless steel installation hardware
• Sold individually
• 4-Pin Deutsch DT harness connector sold separately
• Multiple pods can be linked together using BigBanger Pod-Links, Middle Support Legs and Bar-End Mounting Feet (sold separately)
