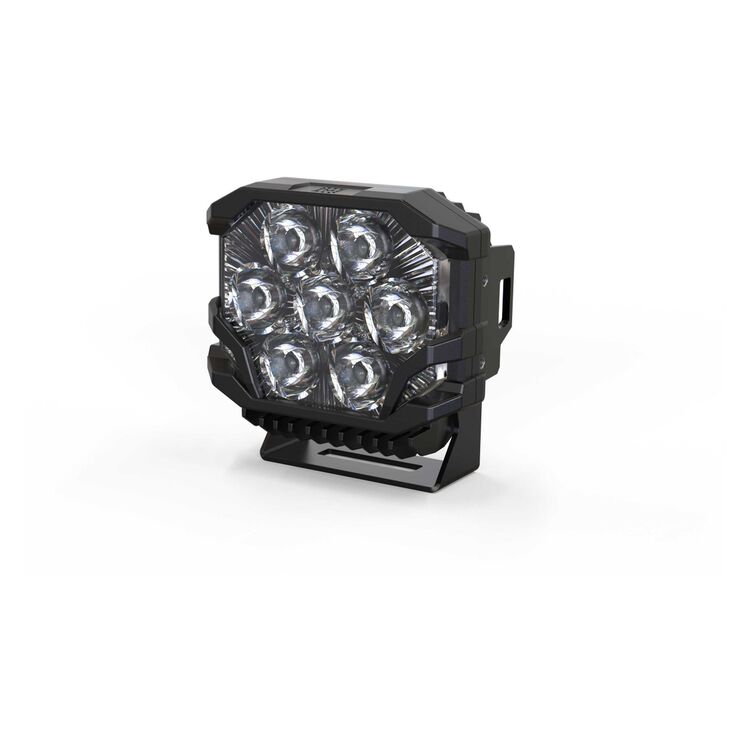

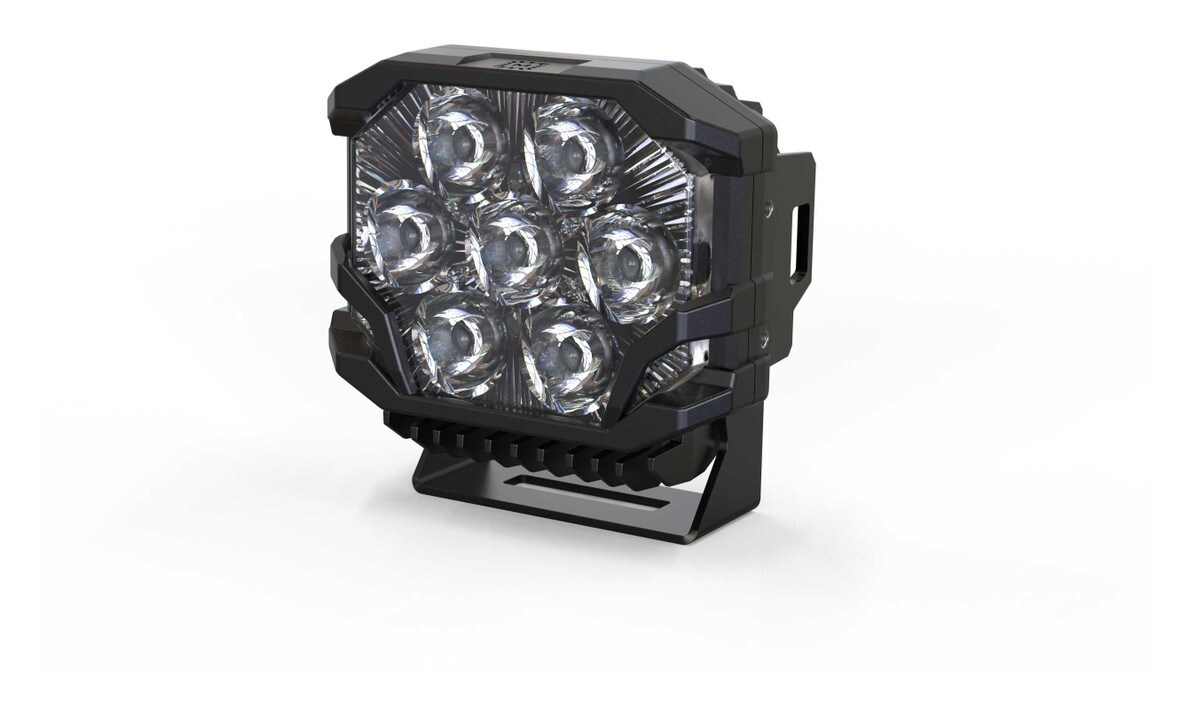

Morimoto BigBanger NCS LED Pod Light

Morimoto BigBanger NCS LED Pod Light

The cutting-edge Banger Series by Morimoto reinvents off road lighting with their innovative LED Light Pods. They are equipped with meticulously crafted Makrolon polycarbonate lenses which enhance the output of the high-luminosity Nichia and Osram LEDs, producing a high-efficiency light with variable methods of illumination. Crafted with aluminum in a weather-resistant casing, these pods incorporate a copper DTP (direct thermal path) PCB to optimize heat dissipation, ensuring an enduring performance even in the harshest conditions.

While the BigBanger NCS Pods, a part of Morimoto's NCS performance tier, might not exhibit the same power as the top-tier HXB models, their stance in their category is undisputed. The BigBanger NCS Pods incorporate the same lens, housing, and amber backlighting as their HXB counterparts, making them a great budget friendly option.

With the addition of BigBanger Pod-Links and Bar-End Mounting Feet (sold separately), multiple BigBanger Pods can be linked to form a BangerBar, for an unbeatable, high power, and fully customizable lightbar solution.

Specifications:

• Raw Lumens: 3150
• Operating Voltage: 9-18V DC
• Power: NCS 36.5W, Backlight 16.5W (High) / 3.8W (Low)
• Current Draw: 2.7A @ 13.5V DC
• Pod Dimensions (W x H x D): 154mm x 137.7mm x 76.1mm
• IP Rating: IP69K (Dust / High Pressure Water Resistant)

Features:

• Spot or Combo Beam optics
• Amber backlighting
• High performance Makrolon polycarbonate lens
• Optimized thermal dynamics
• Powdercoated die cast aluminum housing
• Shell is electroplated before powder coating to strengthen the finish and resist flaking
• Universal fit with included U-Brackets for stand alone application
• Stainless steel installation hardware
• Sold individually
• 4-Pin Deutsch DT harness connector sold separately
• Multiple pods can be linked together using BigBanger Pod-Links, Middle Support Legs and Bar-End Mounting Feet (sold separately)
