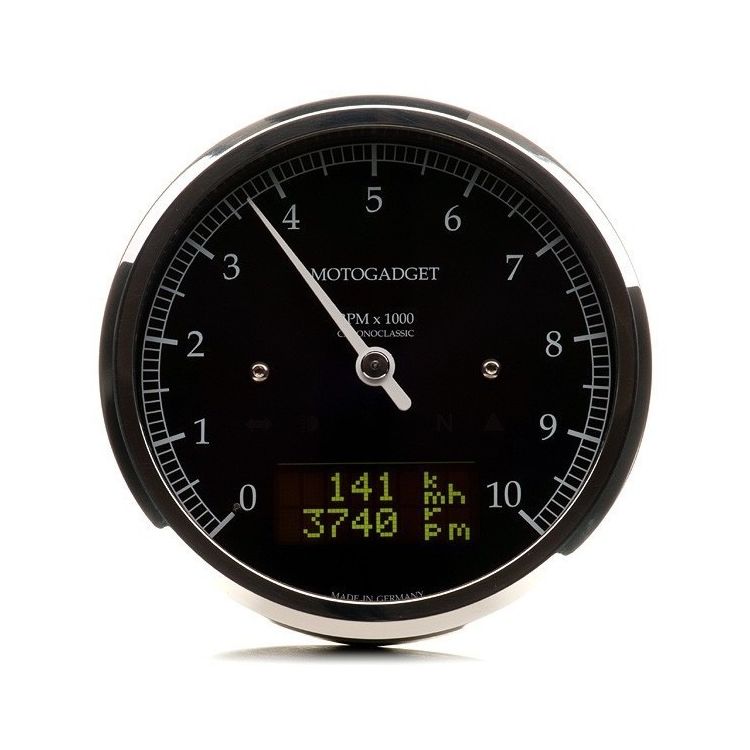

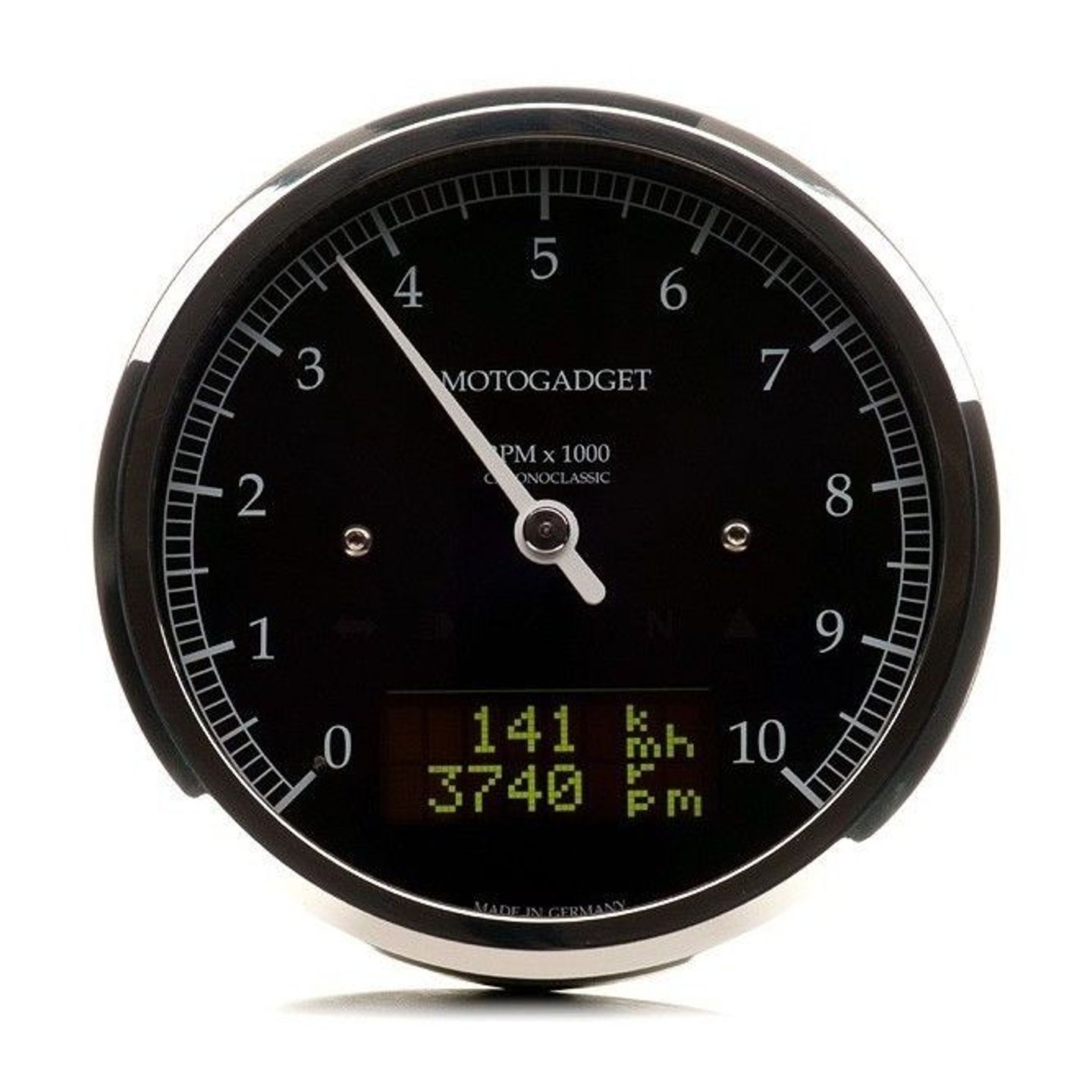

Motogadget Chronoclassic DarkEdition Tachometer

The Motogadget Chronoclassic is a digital multi-purpose instrument in a classic round casing. With a Black dial and a White indicator the design resembles old Smiths brand instruments. This DarkEdition features a negative display LCD for more of a blacked out appearance.

Features:

  • Analog tachometer dial driven by a precision stepper motor
  • Displays: speed, average speed, max speed, max rpm, max positive acceleration (0-20.0 m/s2), max negative acceleration, gear indicator (1-6), trip meter, odometer (adjustable), battery voltage, air temperature (optional instead of water temp), oil temp 40-160°C (104-320°F) with high/low warning, oil pressure 0-8 bar (0-116psi) with high/low warning
  • Indicator lights: turn signal, high beam, neutral, Red triangle for different warning functions either external (e. g. oil pressure switch) or internal (rpm, temperature, pressure, voltage)
  • Adjustable contrast on LCD display (note the Bluish hue seen in some images)
  • Mounting diameter: 80mm (3.15")
  • Bezel diameter: 85mm (3.35")
  • Depth without cable fitting: 34mm (1.34")
  • Mounts via three M4 threaded holes on rear face
  • Made in Germany

Includes:

  • Instrument with 55cm (21.5") connection cable
  • Miniature push-button switch
  • Stainless steel speedometer sensor (M5x0.5) with 150cm (59") connector cable
  • 2 neodymium mini magnets
  • 3 M4 mounting screws with washers
  • Detailed installation and operating instructions

Note: Mount, temperature and pressure sensors sold separately. The gear shift indicator is a mathematical function calculated from rpm and ground speed values and does not require any internal transmission sensors. The dark liquid crystal display achieves a very cohesive appearance however it is not as legible as a traditional Green LCD. This decrease in visibility is especially apparent in direct sunlight. If readability is of a primary concern, consider the standard Chronoclassic.

Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style Polished Bezel / 8k RPM J&P Cycles Item #1122239 Catalog NumberRZ-1122239 Store Sku MFR. Product #MG2004059 AvailabilityOut of Stock: Enter your email address below to be notified when this item is available.
Product Style 8k RPM / Black Bezel J&P Cycles Item #1122240 Catalog NumberRZ-1122240 Store Sku MFR. Product #MG2004058 AvailabilityOut of Stock: Enter your email address below to be notified when this item is available.
Product Style Polished Bezel / 10k RPM J&P Cycles Item #1122241 Catalog NumberRZ-1122241 Store Sku MFR. Product #MG2004060 AvailabilityOut of Stock: Enter your email address below to be notified when this item is available.
Product Style 10k RPM / Black Bezel J&P Cycles Item #1122242 Catalog NumberRZ-1122242 Store Sku MFR. Product #MG2004061 AvailabilityOut of Stock: Enter your email address below to be notified when this item is available.
Product Style Polished Bezel / 14k RPM J&P Cycles Item #1122243 Catalog NumberRZ-1122243 Store Sku MFR. Product #MG2004065 AvailabilityAvailable: Ships in 3-5 business days
Product Style 14k RPM / Black Bezel J&P Cycles Item #1122244 Catalog NumberRZ-1122244 Store Sku MFR. Product #MG2004066 AvailabilityAvailable: Ships in 3-5 business days
Fitment Notes & Exceptions
This is a universal fit part; it may or may not fit without modification.

Motogadget Chronoclassic DarkEdition Tachometer Instructions

Product Description
Part Numbers
Fitment
