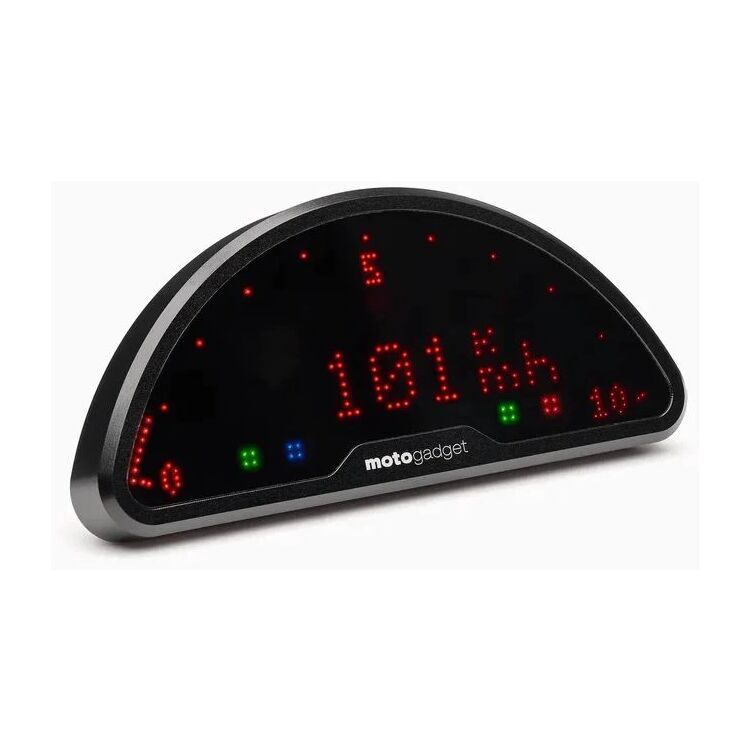

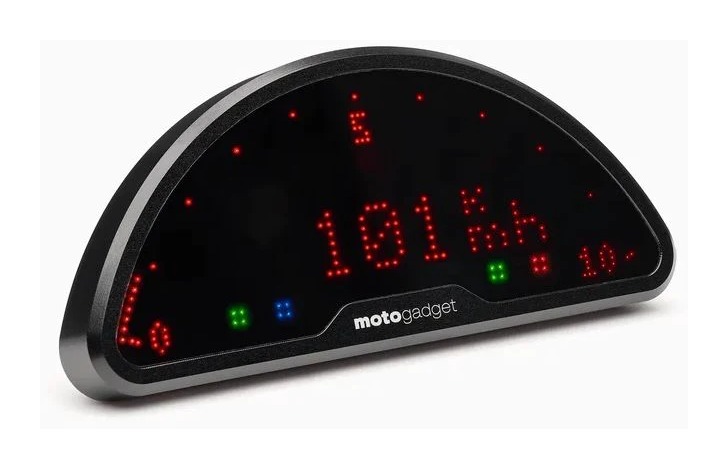

Motogadget Motoscope Pro 2 BMW R Nine T 2017-2023

Motogadget Motoscope Pro BMW R Nine T

The Motogadget Motoscope Pro represents the forefront of digital dashboard design, leveraging advanced technology for an ultra-slim profile. It features 734 LEDs controlled by a 16-bit RISC processor to deliver a seamless, self-illuminating display with exceptional clarity in direct sunlight, complete with automatic brightness adjustment. The dashboard's rev-counter is displayed through a scalable analogue LED band, incorporating a drag indicator function. Both the main and secondary displays are customizable, including a specific section for gear indication. It comes pre-equipped with four indicator lights, expandable for additional inputs via Breakout Boxes. With a fully integrated CAN-bus interface, the Motoscope Pro is prepared for future enhancements, such as the plug 'n ride Breakout-Box Triumph. It uses a proprietary digital one-wire bus (m-Bus) for easy communication with Breakout Boxes, broadening its adaptability across various vehicles and applications. Crafted from CNC-machined billet aluminium, its casing allows for straightforward mounting with two threaded holes on the back. This instrument comes with an ABE, eliminating the need for registration.

Features and Functions:

• Operation with original handlebar buttons
• Setting and display of heated handle levels
• Setting/displaying riding modes
• Speed (km/h / mph)
• Odometer
• Trip A and Trip B
• Speed display as bar or number
• Switching flash (adjustable)
• Acceleration (g)
• Time measurement (0-60mph / 0-100km/h)
• Onboard voltage
• Travel time in hours/minutes/seconds
• Operating hours counter
• Average speed
• Maximum values RPM, acceleration, speed
• Reserve
• ABS
• Oil pressure
• Gear indicator
• Neutral
• Turn signal
• High Beam

Specifications:

• Length, Height, Depth: 109 mm/ 47 mm/ 11 mm
• Weight w/ cable: ca. 100 g
• Mounting: 2 x M3 threaded hole
• Power consumption during operation: max. 200 mA (load dependent)
• Power consumption in standby: 0.4 mA
• Operating voltage: 9 V - 15 V
• Operating temperature: -20°... +80°C

Includes:

• motoscope pro with ca. 60 cm connector cable
• 2 stainless steel screws
• Detailed installation and operating instructions

Note: Cruise control is not supported. BMW Alarm System may not work with Motoscope Pro 2 installed.
