MTX Audio Mono Block Powersports Amplifier

MTX Audio Mono Block Powersports Amplifier

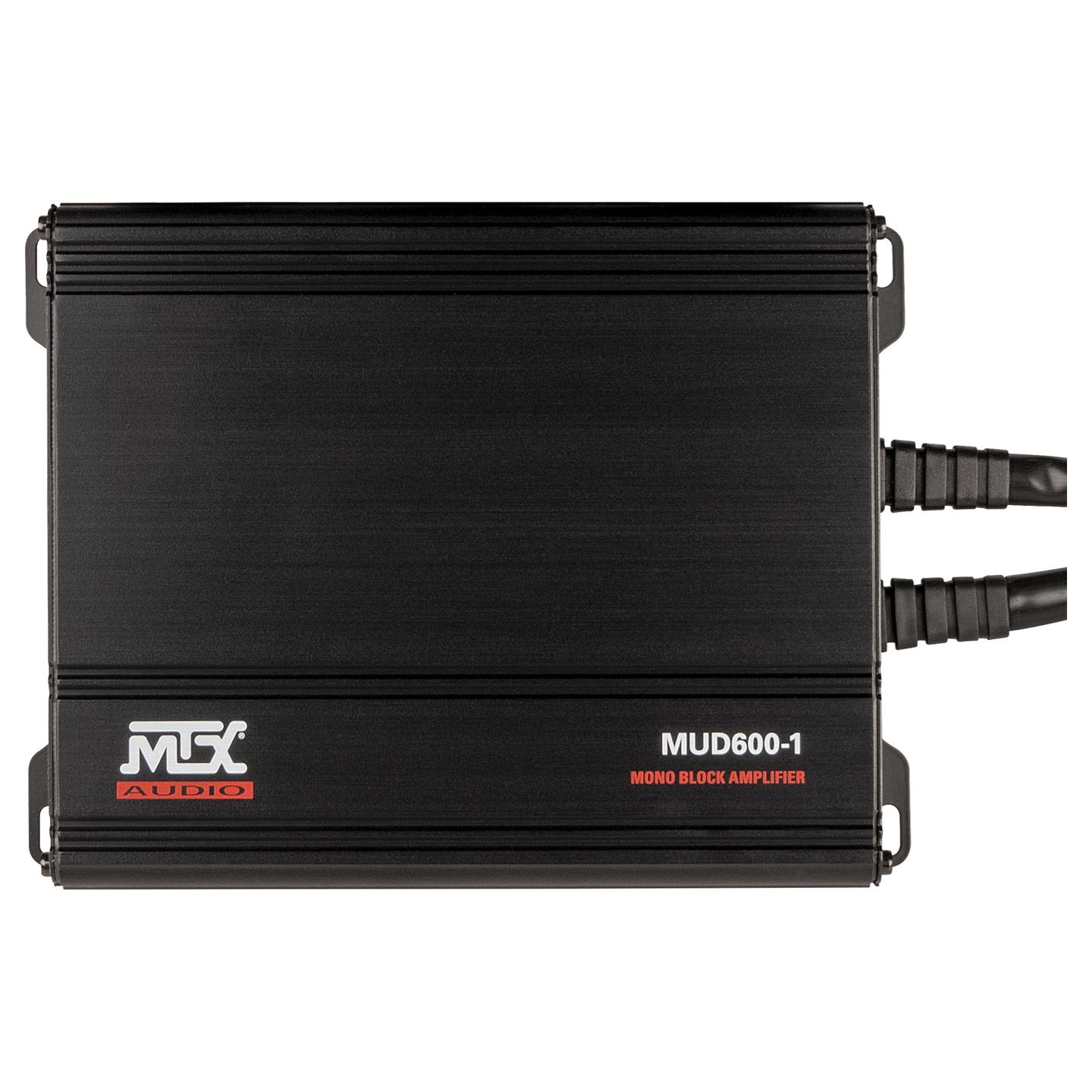

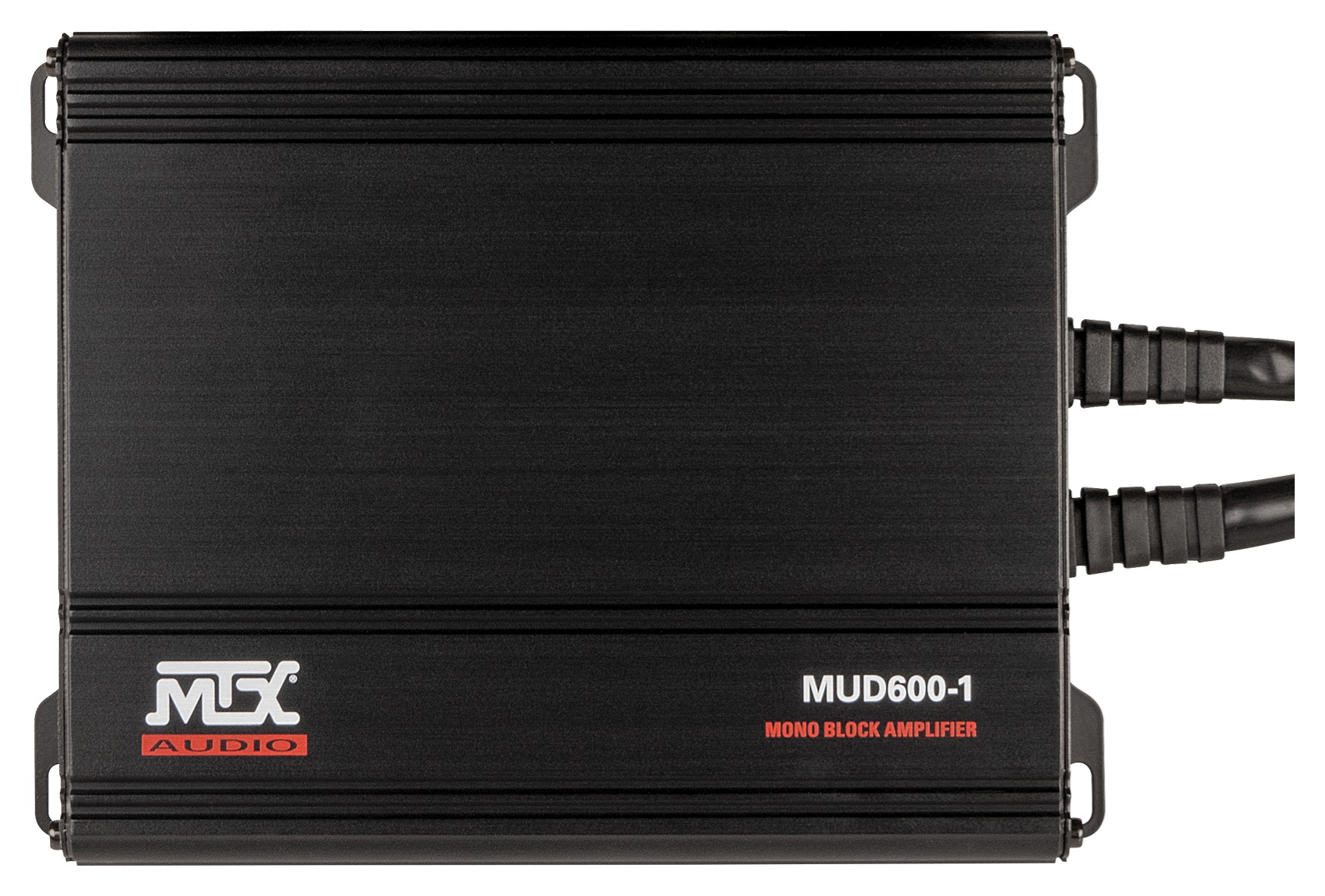

The MTX MUD600-1 is a Class D mono block amplifier , known for its superior sound quality and impressive thermal efficiency. With a up to 600-watts RMS power, it doesn't compromise on performance. It is designed to be resistant to weather conditions, featuring a coated circuit board and control covers to prevent moisture-related damage. An additional unique design element is the inclusion of a pigtail assembly for all crucial connections. This serves to keep moisture, dirt and other potential hazards from damaging the internal components.

Features:

• Mono-channel
• Small chassis
• Conformal coated circuit board
• Surface mount technology
• Variable crossover
• Stainless steel hardware
• Rubber gaskets around RCA connectors
• Plastic cover over control adjustments

Specifications:

• Description: MONO BLOCK
• 4Ω RMS Power Output: 300W X 1 CHANNEL
• 2Ω RMS Power Output: 650W X 1 CHANNEL
• 1Ω RMS Power Output: NA
• Signal to Noise Ratio: 85 DBA
• Topology: CLASS D
• THD: <1.0%
• Frequency Response: 10HZ - 250HZ
• Crossover: VARIABLE LOW @ 40 - 250HZ
• Height: 1.85" (47MM)
• Width: 5.51" (140MM)
• Depth: 7.36" (187MM)
