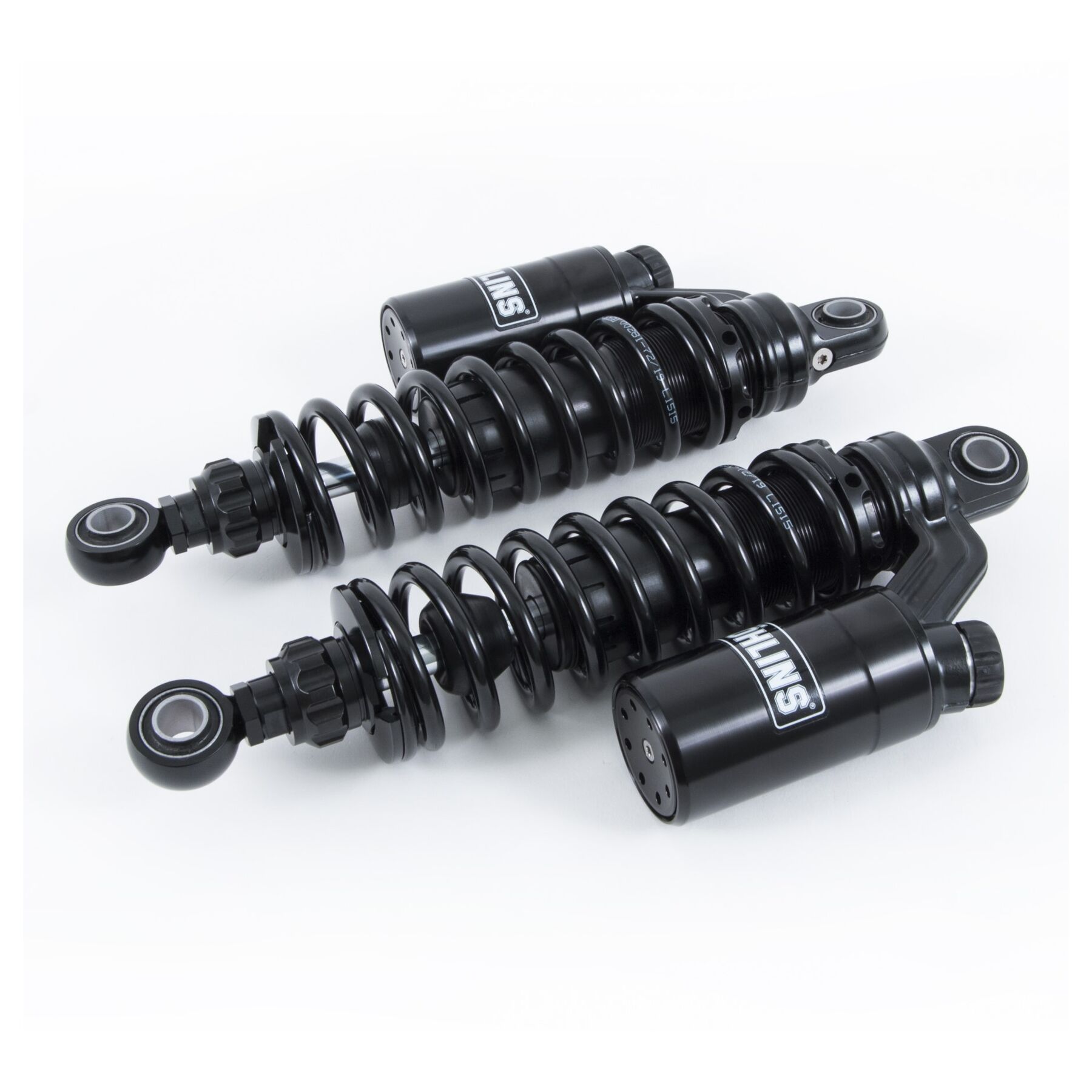

Ohlins S36PRCLB Adjustable Rear Shocks For Harley Sportster

If you spent big money on your motor, you had better have the suspension to back it up. The S36PRCL is the top dog in the Ohlins V-twin lineup. These shocks make no compromises and are ready for long days on the twisties or hot laps around the track. Fully adjustable rebound and compression damping circuits mean you can dial in your ride exactly how you like it, while providing you the ability to make tool free adjustments on the road.

The piggyback reservoir provides increased fluid capacity resulting in increased cooling so that no matter how hard you ride, your shocks will return fade-free performance mile after mile!

Features:

  • Nitrogen charged STX monotube shock absorber with external “piggy back” reservoir
  • Adjustable rebound damping with adjuster wheel above the end eye
  • Adjustable compression damping with adjuster wheel or slot on the reservoir
  • Length adjustable 1/2"
  • Built-in adjustable preload
  • Precision CNC-machined components
  • Low-friction piston rod and eyelets
  • Serviceable and repairable
  • 36mm piston diameter
  • Includes preload adjuster tool
  • Sold as a pair

Spring Weights:

  • Light Duty recommended for individual rider weighing under 180lbs
  • Standard recommended for individual rider weighing 180lbs - 225lbs
  • Heavy Duty recommended for individual rider weighing over 250lbs
Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style 12" Light Duty / Blackline J&P Cycles Item #1273755 Catalog NumberRZ-1273755 Store Sku MFR. Product #HD_752_150_170 AvailabilityAvailable: Ships in 2-4 business days
Product Style 12" Standard Duty / Blackline J&P Cycles Item #1273753 Catalog NumberRZ-1273753 Store Sku MFR. Product #HD_752_190_210 AvailabilityAvailable: Ships in 2-4 business days
Product Style 12" Heavy Duty / Blackline J&P Cycles Item #1273754 Catalog NumberRZ-1273754 Store Sku MFR. Product #HD_752_290_310 AvailabilityAvailable: Ships in 2-4 business days
Product Style 13" Light Duty / Yellow Spring J&P Cycles Item #1273747 Catalog NumberRZ-1273747 Store Sku MFR. Product #HD_143 AvailabilityAvailable: Ships in 2-4 business days
Product Style 14" Heavy Duty / Yellow Spring J&P Cycles Item #1273746 Catalog NumberRZ-1273746 Store Sku MFR. Product #HD_144 AvailabilityOut of Stock
Product Style 14" Standard Duty / Yellow Spring J&P Cycles Item #1273744 Catalog NumberRZ-1273744 Store Sku MFR. Product #HD_144 AvailabilityOut of Stock
Product Style 13" Heavy Duty / Yellow Spring J&P Cycles Item #1273745 Catalog NumberRZ-1273745 Store Sku MFR. Product #HD_143 AvailabilityAvailable: Ships in 2-4 business days
Product Style 13" Standard / Yellow Spring J&P Cycles Item #1273743 Catalog NumberRZ-1273743 Store Sku MFR. Product #HD_143 AvailabilityAvailable: Ships in 2-4 business days
Product Style 14" Light Duty / Yellow Spring J&P Cycles Item #1273748 Catalog NumberRZ-1273748 Store Sku MFR. Product #HD_144 AvailabilityOut of Stock

This product DOES NOT FIT your 2017 Moto Guzzi California 1400 Custom

Fitment Notes & Exceptions
  • Shock lengths are measured fully extended, eyelet to eyelet on centers
  • A change in height at one end of the bike may require a change at the other
  • Changing ride height can potentially change the trail and mechanical trail
  • Prior to purchasing shocks that are different than your OEM length, please verify that wheel and suspension travel can be altered without causing clearance issues to the swingarm, axle, frame, tire, fender, chain/belt and guard, and exhaust
This Product Fits
Harley Davidson
Sportster Custom XL1200C 2004-2019
Sportster Custom XL883C 2004-2009
Sportster Forty-Eight Special XL1200XS 2018, 2019
Sportster Forty-Eight XL1200X 2010-2022
Sportster Iron XL1200NS 2018, 2019, 2020, 2021
Sportster Iron XL883N 2009-2022
Sportster Low/SuperLow XL883L 2005-2019
Sportster Low XL1200L 2006-2011
Sportster Nightster XL1200N 2007-2012
Sportster Roadster XL1200CX 2016, 2017, 2018, 2019, 2020
Sportster Roadster XL1200R 2004, 2005, 2006, 2007, 2008
Sportster Roadster XL883R 2004-2012
Sportster Seventy-Two XL1200V 2012, 2013, 2014, 2015, 2016
Sportster SuperLow XL1200T 2014, 2015, 2016, 2017
Sportster XL883 2004-2009

Ohlins S36PRCL Rear Shocks For Harley Sportster 2004-2022 Instructions

Product Description
Part Numbers
Fitment
Instructions
