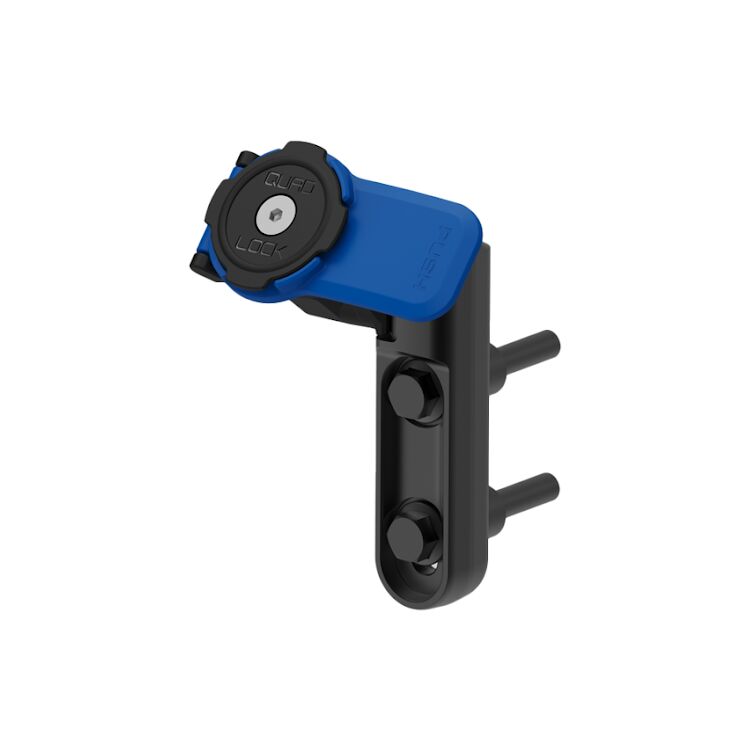

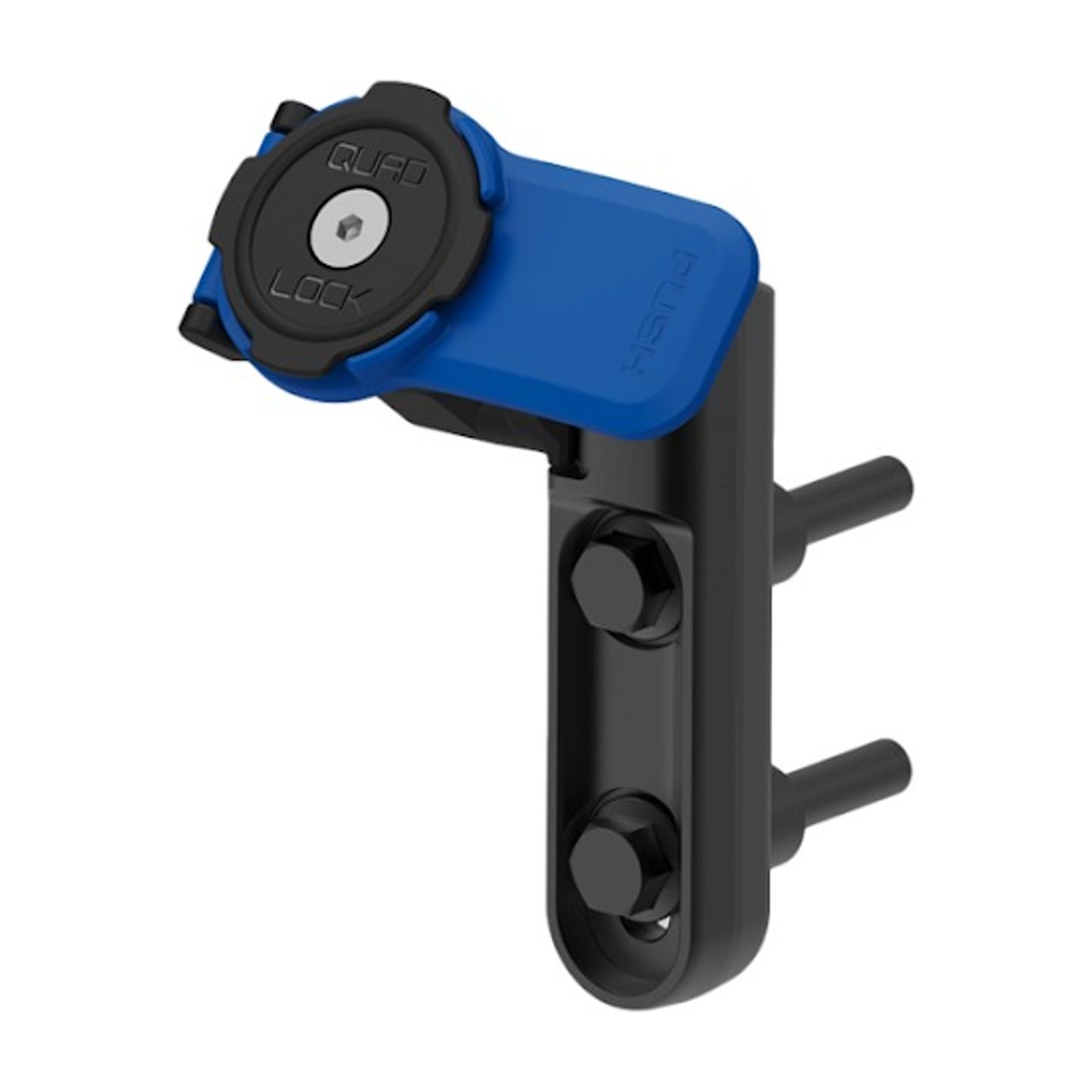

Quad Lock Motorcycle Brake/Clutch Mount

Quad Lock Motorcycle Brake/Clutch Mount

Enhance your motorcycle journey with the Quad Lock Motorcycle Brake/Clutch Mount, designed to keep your phone secure and navigation apps easily accessible. Its patented dual-stage locking mechanism simplifies phone attachment—just twist and lock in one fluid motion. For added stability, opt for the optional Vibration Dampener, which significantly reduces over 90% of the high-frequency vibrations typical of motorcycle rides. Enjoy a reliable and steady phone mount, ensuring you stay on the right path during your thrilling motorcycle adventures.

Features:

• Compact design with twin bolt mounting to brake/clutch handlebar clamp
• Mount base hole pitch range from 32-38mm
• Inboard single screw adjustment with angle and pivot adjustment towards the rider field of view
• Index lever head is offset inboard away from the handlebar controls
• Non-handed and can be mounted on the left hand or right hand side of the brake/clutch handlebar clamp on a motorbike
• High tensile fasteners including serrated flange bolts for the brake/clutch handlebar clamp for added security
• Anodized black die-cast base
• Microencapsulated thread locking fasteners
• Dimensions: 35mm H x 50mm W x 98mm L

Includes:

• Brake/Clutch Mount
• (2) M6 x 45 serrated flange bolts with thread locker
• (2) UNC 1/4”-20 x 1.75 serrated flange bolts with thread locker
• (2) Spacers
• Combination 3mm/4mm Hex Key

Compatibility:

• All Quad Lock Cases
• Quad Lock Vibration Dampener
• Quad Lock Weatherproof Wireless Charging Heads

Note: Brake/Clutch Mount only, Quad Lock case sold separately.
