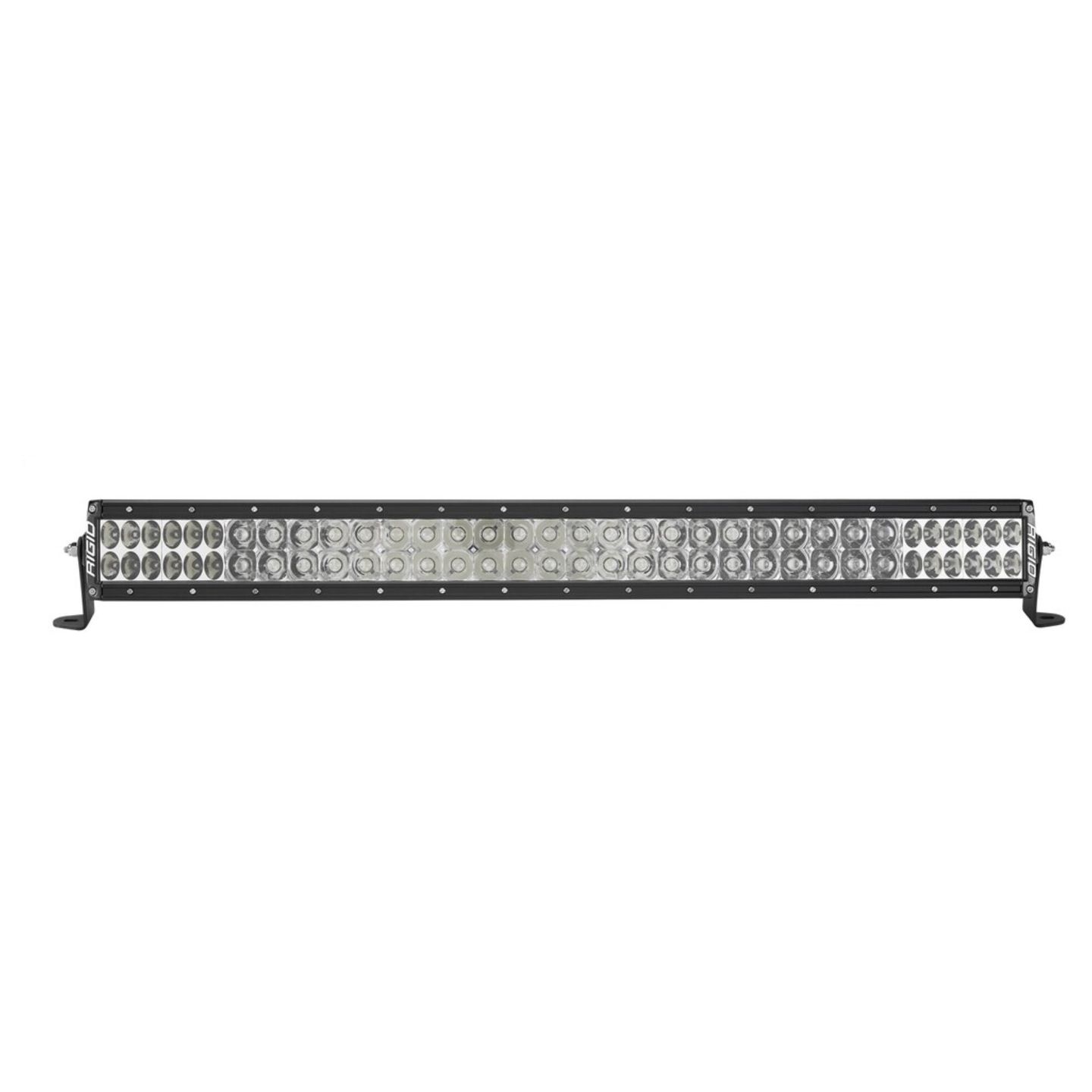

Rigid E-Series Pro Combination 30" LED Light Bar

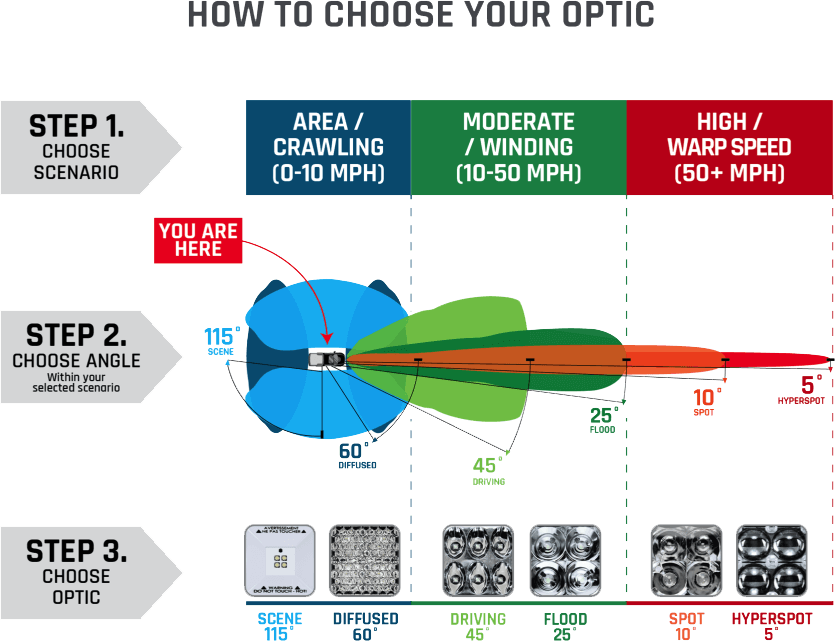

Experience the radiance of the E-Series Pro LED Light Bar in your preferred size and array of beam options – spot, flood, driving, diffused, or a combination of driving and spot. The E-Series Pro, using Rigid's unique LED technology, delivers up to 111% more raw lumens compared to earlier versions of the E-Series lights – an opportunity to, as Rigid puts it: "Own the night."

This product, designed by Rigid and engineered with the rigors of off-road use in mind, provides exceptional versatility for on-road racing, marine, general automotive, and even first responder applications.

This high-powered beacon of light, produced in the USA, comes from Rigid's design hub located in Gilbert, Arizona. Rigid Industries stands out as the leader in the field of LED lighting solutions, offering a broad product line that ranges from ultra-low amperage rock lights to advanced GPS-enabled "smart" light bars. The crowning "hybrid" and "specter" optics technologies by Rigid enhance every product they produce. The outcome is a potent optics system that provides up to 40% more lux while consuming up to 50% less power, positioning it a league above its competitors.

Specifications:

  • Spot/Flood Combination:
    • Size: 6.0 Inch: Amp Draw: 5.86 Watts: 82 Volts: 36 Lumens: 9504
    • Size: 10.0 Inch: Amp Draw: 12 Watts: 168 Volts: 36 Lumens: 15840
    • Size: 20.0 Inch: Amp Draw: 15 Watts: 214 Volts: 36 Lumens: 25080
    • Size: 30.0 Inch: Amp Draw: 34 Watts: 470 Volts: 36 Lumens: 37060
    • Size: 40.0 Inch: Amp Draw: 21 Watts: 299 Volts: 36 Lumens: 35680
    • Size: 50.0 Inch: Amp Draw: 27 Watts: 377 Volts: 36 Lumens: 44600

Includes:

  • Light bar
  • 2 black powder coated L-shaped brackets
  • Deutsch connector included on 4"-10" versions
  • Open leads/no connector on 20"-50" versions
  • Harness with switch

Features:

  • LED light bar in various sizes
  • Spot/flood combination beam pattern
  • 50,000+ hour lifespan
  • 9-36 VDC operation
  • Durable UV-resistant powder coated finish
  • Aluminum alloy construction
  • Integrated thermal management
  • Impact resistant polycarbonate lens
  • Over/under voltage protection
  • RFI/EMI protection
  • Reverse polarity protection
  • RoHS compliant
  • IP69K compliant against dust/water ingress
  • Epoxy sealed
  • Pressure equalizing vent
  • Operating temp -40 to 145 degrees F
  • SAE J575 compliant against shock/vibration
  • Limited lifetime warranty
  • For off-road use only
  • Sold each
Made in the USA
Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style 30" / Spot/Flood J&P Cycles Item #10065446 Catalog Number10065446 Store Sku MFR. Product #132313 AvailabilityOnly 3 Left: Ships within 24 hours
Fitment Notes & Exceptions
This is a universal fit part; it may or may not fit without modification.
