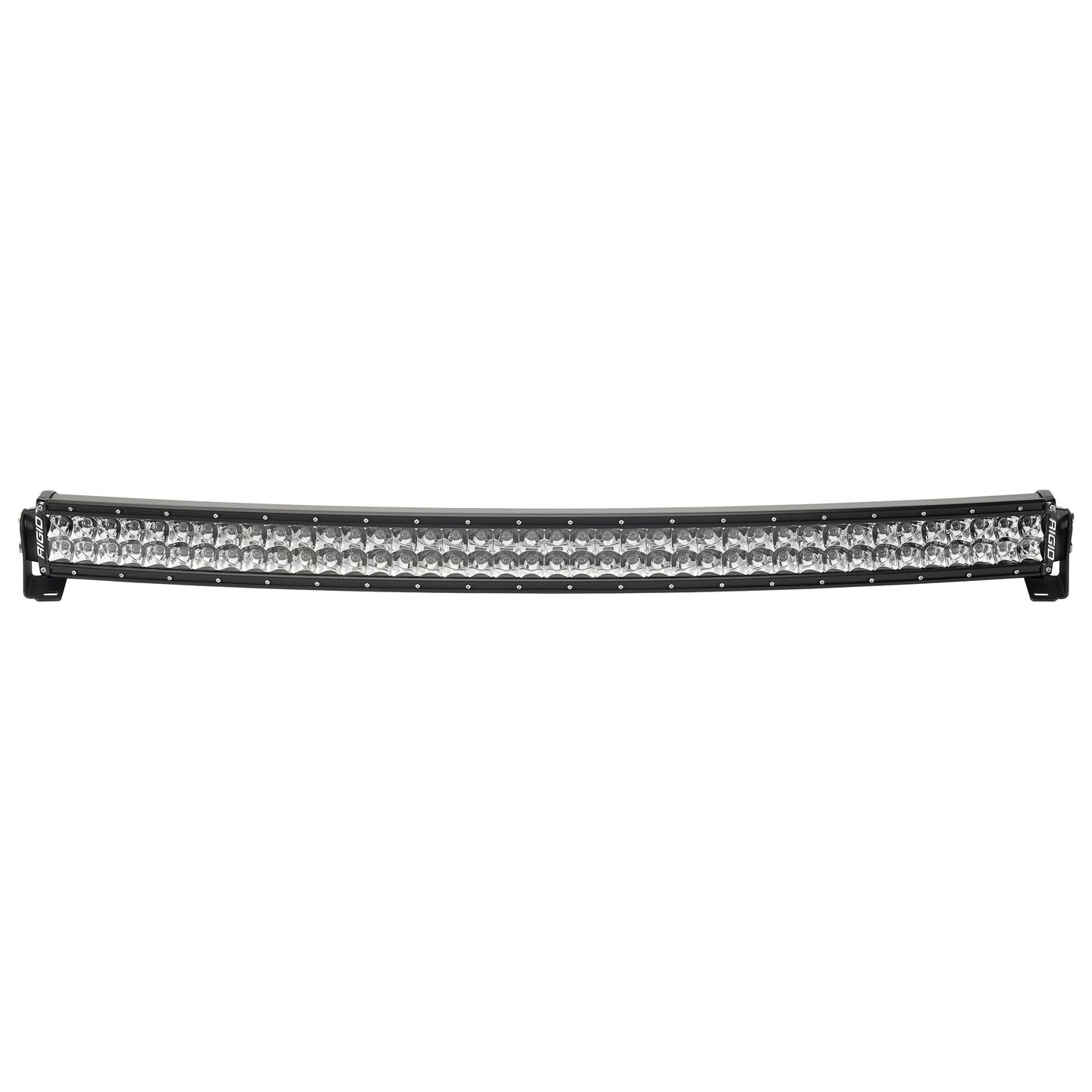

Rigid RDS-Series Pro Curved 40" LED Light Bar

Rigid, a trailblazer in the lighting industry, has revolutionized LED technology with the RDS-Series Pro - curved LED light bar. The bar's curvature assures unparalleled beam coverage, offering a broader spread of light significantly exceeding that of conventional light bars.

The RDS-Series Pro, an innovative refinement of the legendary E-Series LED light bar, features up to 70 percent more raw lumens thanks to recent advances in LED technology. The RDS-Series Pro Light Bar's graceful arc ensures seamless integration with modern SxS's, custom off-road builds, and trucks. The aesthetic appeal of the functional curve is equally matched by its improved lighting reach, enabling one to "Own the Night."

Each of these state-of-art illumination devices are made in America, hailing from Rigid's design headquarters located in Gilbert, Arizona. With a product catalog ranging from ultra-low amperage rock lights to GPS-enabled "smart" light bars, Rigid Industries holds a leading position in the LED lighting solutions arena. Incorporating premier "hybrid" and "specter" optics technology into all its products, Rigid ensures robust illumination - delivering up to 40% more lux while consuming 50% less power than rival products.

Specifications:

  • Size: 20.0 Inch: Light Pattern: Spot: Amp Draw: 16.72 Watts: 234 Volts: 36 Lumens: 31680
  • Size: 30.0 Inch: Light Pattern: Spot: Amp Draw: 19.80 Watts: 277 Volts: 36 Lumens: 47520
  • Size: 40.0 Inch: Light Pattern: Spot: Amp Draw: 22.44 Watts: 314 Volts: 36 Lumens: 63360
  • Size: 54.0 Inch: Light Pattern: Spot: Amp Draw: 32.34 Watts: 453 Volts: 36 Lumens: 85538

Includes:

  • 2 black powder coated L-shaped brackets
  • Open leads (no connector)
  • Wiring harness with switch

Features:

  • Revolutionary curved construction
  • Unmatched light coverage
  • Spotlight beam pattern
  • 50,000+ hour lifespan
  • 9-36 VDC operation
  • Durable UV-resistant powder coated finish
  • Aluminum alloy construction
  • Integrated thermal management
  • Impact resistant polycarbonate lens
  • Over/under voltage protection
  • RFI/EMI protection
  • Reverse polarity protection
  • RoHS compliant
  • IP69K compliant against dust/water ingress
  • Epoxy sealed
  • Pressure equalizing vent
  • Operating temp -40 to 145 degrees F
  • SAE J575 compliant against shock/vibration
  • Limited lifetime warranty
  • For off-road use only
Made in the USA
Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style 40" / Spot J&P Cycles Item #10065806 Catalog Number10065806 Store Sku MFR. Product #884213 AvailabilityIn Stock: Ships within 24 hours
Fitment Notes & Exceptions
This is a universal fit part; it may or may not fit without modification.
