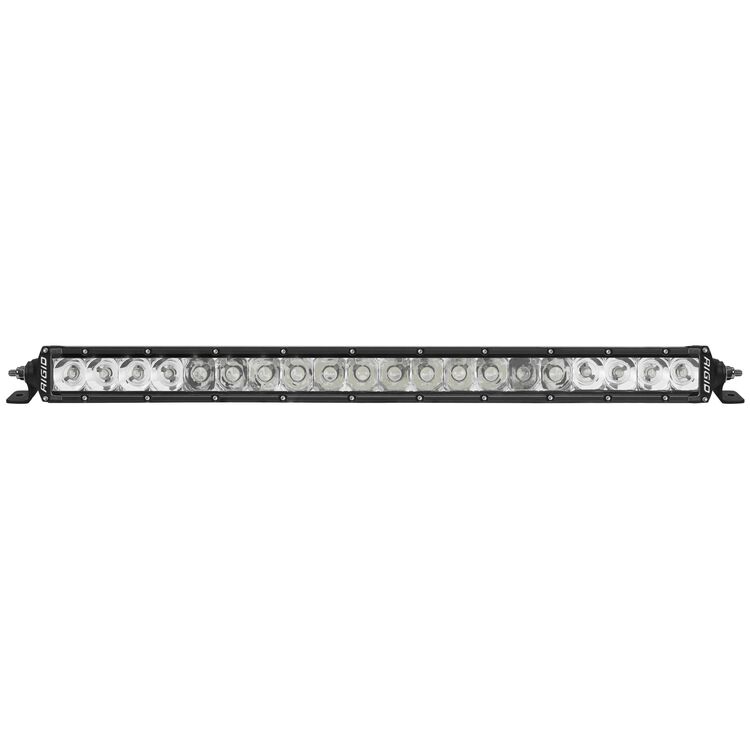

Rigid SR-Series Pro Combination 20" LED Light Bar

Rigid SR-Series Pro Combination 20" LED Light Bar

The ultra-bright SR-Series Pro LED Light Bars from Rigid offer superior luminosity in a slim, compact design. This revolutionary LED strip features a single row of lighting elements that use advanced LED technology, enhancing light output by up to a staggering 111 percent more raw lumens compared to previous LED models. With a height of less than 2" from the peak of the light to the bottom of the mounting bracket, SR-Series Lights deliver high-level lighting power that is subtle and doesn't interfere with the vehicle's aerodynamics.

Perfect for applications with limited space, the SR-Series Pro works with minimal power while supporting intense illumination. The tidy design not only promotes aerodynamic efficiency but also helps lessen wind buffeting, reduces the risk of damage from rocks or trees, and enhances the aesthetic appeal. The tough SR Hyperspot Lights are built with high impact polycarbonate and aluminum, ensuring a bulb life surpassing 50,000 hours, with Rigid's unique blacked-out circuit boards enhancing the overall look.

In terms of LED lighting technology, Rigid Industries leads the way, boasting an extensive product range from ultra-low amperage rock lights to GPS-enabled "smart" light bars. The company's state-of-the-art "hybrid" and "specter" optics technologies enrich all of Rigid's output, making potent, American-made optics with up to 40% more lux and up to 50% less power usage than rivals.

Specifications:

• Driving/Spot Combination Light Bar:
  • Size: 30.0 Inch: Light Pattern: Driving/Spot: Amp Draw: 21.64 Watts: 303 Volts: 36 Lumens: 28842
• Spot/Flood Combination Light Bar:
  • Size: 6.0 Inch: Light Pattern: Spot/Flood: Amp Draw: 3.43 Watts: 48 Volts: 36 Lumens: 4752
  • Size: 10.0 Inch: Light Pattern: Spot/Flood: Amp Draw: 4.29 Watts: 60 Volts: 36 Lumens: 7920
  • Size: 20.0 Inch: Light Pattern: Spot/Flood: Amp Draw: 8.5 Watts: 119 Volts: 36 Lumens: 15840
  • Size: 30.0 Inch: Light Pattern: Spot/Flood: Amp Draw: 11.43 Watts: 160 Volts: 36 Lumens: 18810
  • Size: 40.0 Inch: Light Pattern: Spot/Flood: Amp Draw: 18.5 Watts: 259 Volts: 36 Lumens: 25080
  • Size: 50.0 Inch: Light Pattern: Spot/Flood: Amp Draw: 20.71 Watts: 290 Volts: 36 Lumens: 31350

Includes:

• SR-Series Light Bar
• Mounting hardware
• Wiring harness

Features:

• Unique combination beam patterns
• 50,000+ hour lifespan
• 9-36 volt DC capacity
• Durable UV-resistant powder coated finish
• Aluminum alloy construction
• Integrated thermal management
• Impact resistant polycarbonate lens
• Over/under voltage protection
• RFI/EMI protection
• Reverse polarity protection
• RoHS compliant
• IP69K compliant against dust/water ingress
• Pressure equalizing vent
• Operating temp -40 to 145 degrees F
• SAE J575 compliant against shock/vibration
• Limited lifetime warranty
• For off-road use only
