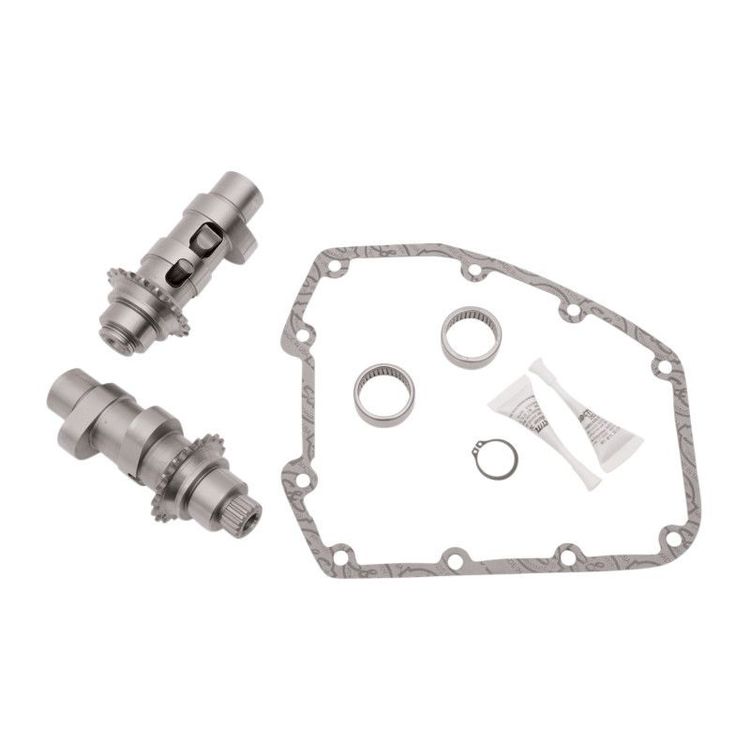

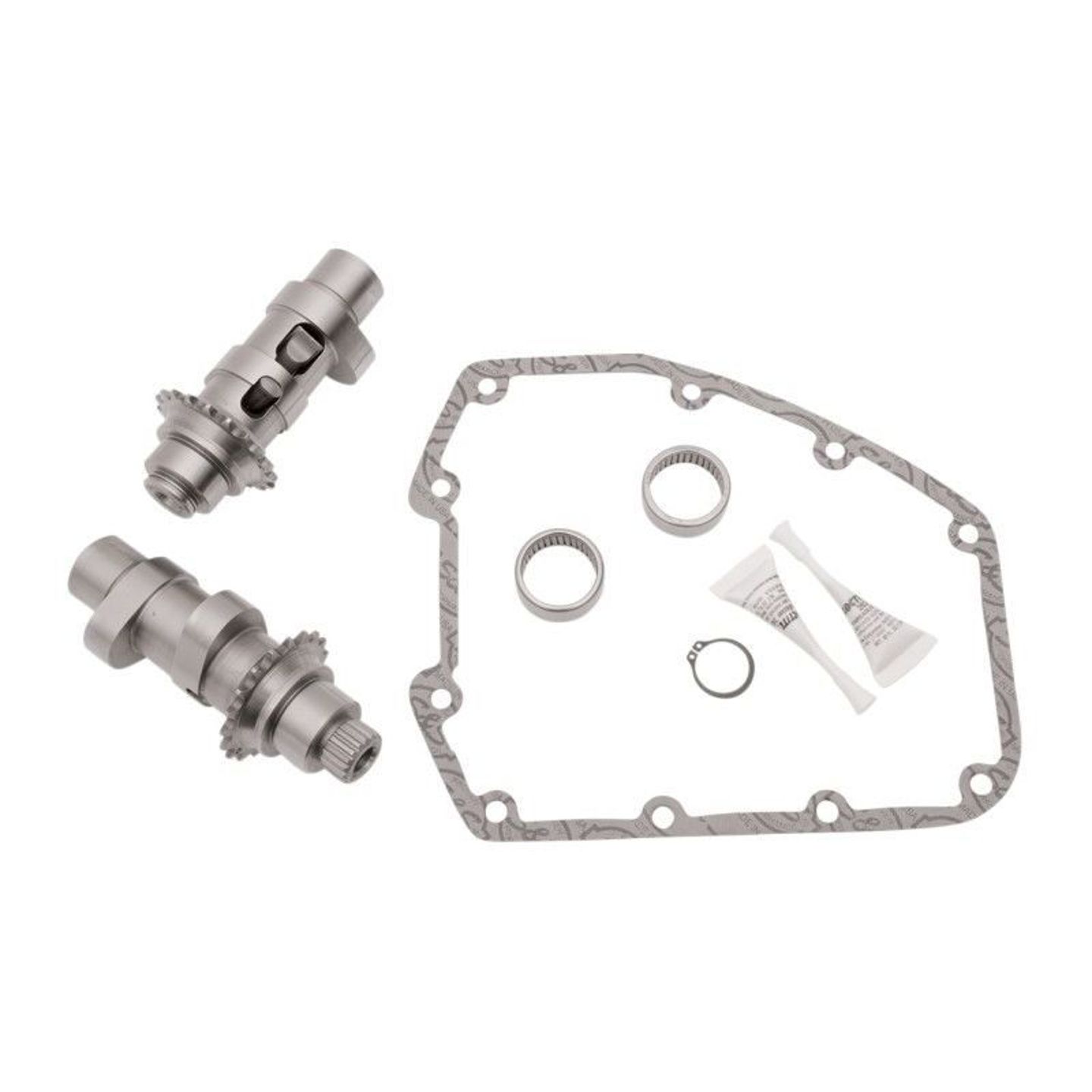

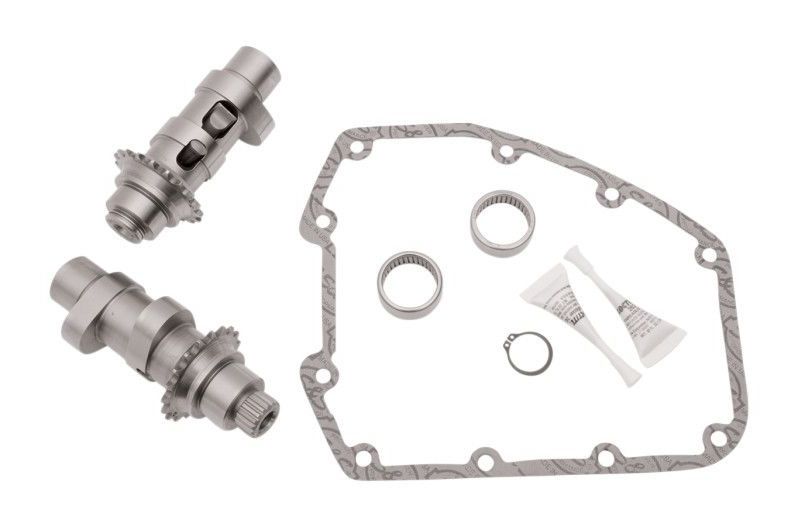

S&S Cycle 551 Easy Start Cam Kit For Harley Twin Cam 1999-2006

S&S Cycle 551 Easy Start Camshaft Kit For Harley Twin Cam

S&S Easy Start Cam Kits belong on the short list for high performance builds and engines where reliability matters most. They are built for strong power, but the design also makes starting far easier without relying on compression releases, oversized batteries or expensive starters. Each cam uses a spring loaded centrifugal compression release lobe machined into the heel of the exhaust lobe. At cranking speed, it slightly opens the exhaust valve during the compression stroke to reduce strain on the starter. Once the engine starts and reaches 800 RPM, the lobe retracts from the tappet roller path so the engine runs with normal operation and full compression.

Features:

• Start any engine regardless of displacement or compression ratio with a stock starter
• Save your starter and battery; tested for 10,000 starts without running battery down
• Allows for easy start by initially reducing cranking compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
• Available in chain drive and gear drive versions
• All chain drive cams include installation kit
• All gear drive cams include 4-gear set and installation kit
• Made in the USA

551 Cam Info:

• Optimized for 88" to 106" Touring bikes with slip-on mufflers and 9.0 to 10.0:1 compression
• Can be used with stock pushrods, springs and lifters; high-lift valve springs may be required for some applications
• Pulls hard from idle to 4000 RPM
• Similar to Andrews 21H/26H or Screamin' Eagle 203/255
• Centerline Intake: 92.5°
• Duration Exhaust @ .020: 237°
• Grind: 551C
• Lift @ Top Dead Center Intake: .163"
• Duration Intake @ .020: 215°
• Lift @ Top Dead Center Exhaust: .179"
• Lift: .550"
• Valve Timing Exhaust: 39°/18°
• Centerline Exhaust: 100.5°
• Valve Timing Intake: 15°/20°
