S&S Cycle 450S Camshaft For Harley Big Twin 1948-1969

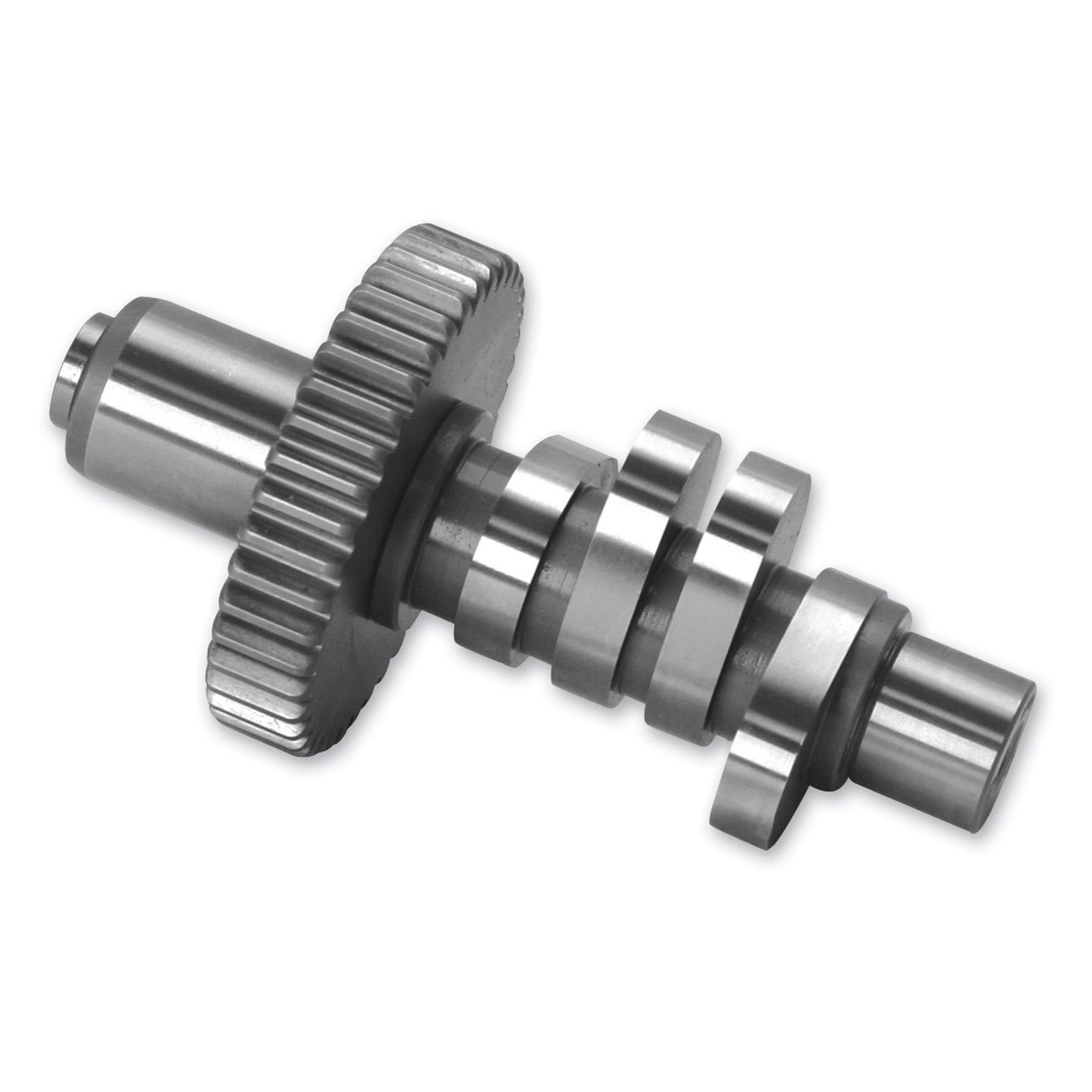

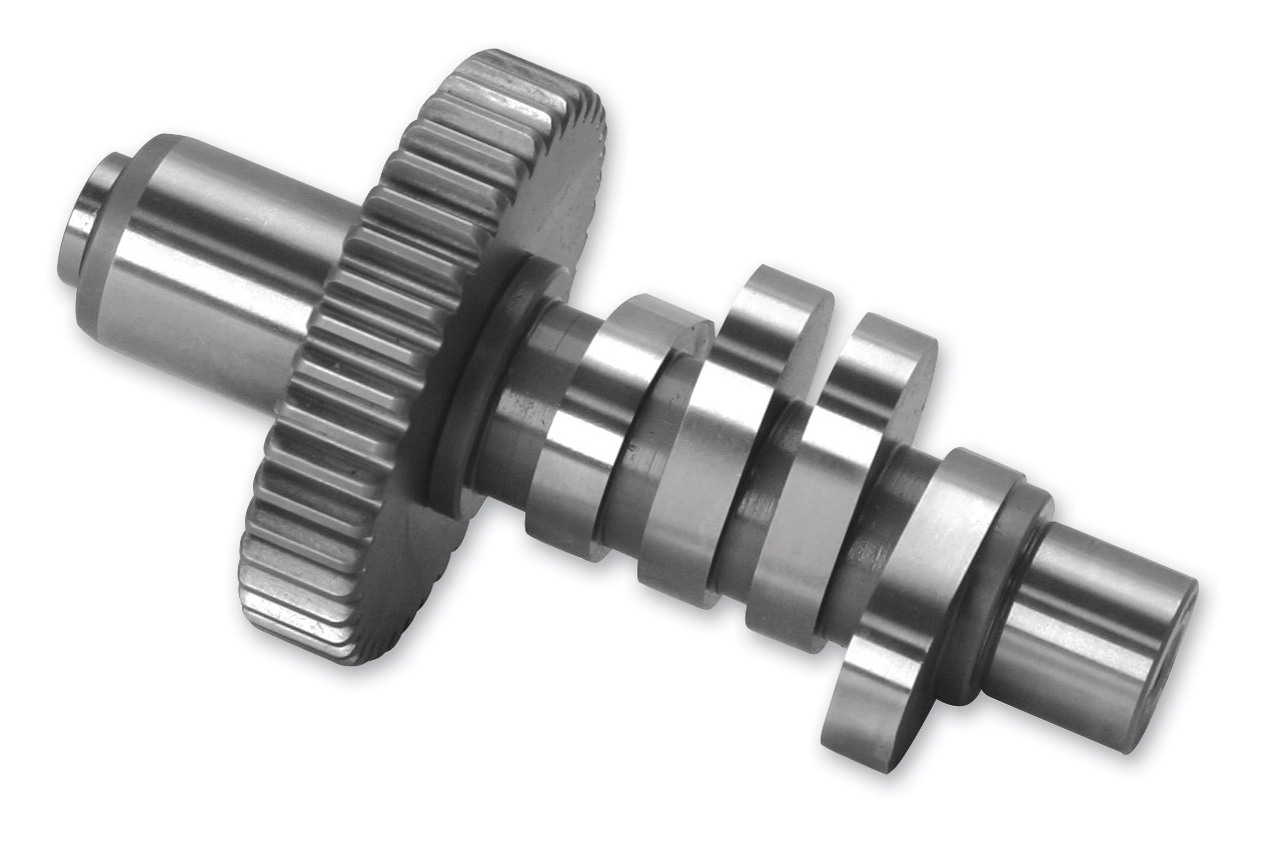

S&S Cycle 450S Camshaft

Forged through hundreds of hours on the dyno, the asphalt and the track, these S&S cams are tuned to deliver immediate, hard-hitting power the moment the throttle opens. They are precision engineered to provide strong performance across every mile of pavement.

Features:

• A bolt-in hydraulic cam for 74" and 80" Shovelhead engines, made for earlier Panheads and Shovelheads
• The 450S can also be used as a low end torque cam in modified Shovelhead engines up to 88" with compression ratios of up to 8.5:1
• Although designed for use with hydraulic tappets, the S&S 450S can be used with solid lifters. Use with solids will result in more valve train noise, slightly higher cylinder pressure, and slightly more torque
• Good low and mid-range torque
• Recommend hydraulic lifters
• Made in the USA

Cam Specs:

• Intake Lift: 0.475"
• Exhaust Lift: 0.475"
• Intake Lift at TDC: 0.158"
• Exhaust Lift at TDC: 0.152"
