S&S Cycle Oil Pump Passage Drill Jig

Item: P360680
9 Read 9 Reviews Write a Review

The S&S crankcase oil passage drilling jig facilitates modifications to early big twin crankcases for the installation of an S&S oil pump assembly. Th… Read More

Ari’s Motorcycle Maintenance Hacks | The Shop Manual
S&S Cycle Oil Pump Passage Drill Jig
Fullscreen Zoom
$70.95
Rebate Available! View Details

Add To Wish List

This item Ships FREE
Guaranteed Low Price
Ari’s Motorcycle Maintenance Hacks | The Shop Manual

Product Details

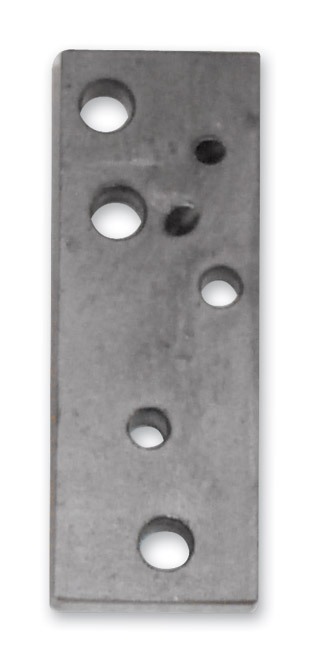

S&S Cycle Oil Pump Passage Drill Jig

The S&S crankcase oil passage drilling jig facilitates modifications to early big twin crankcases for the installation of an S&S oil pump assembly. This tool ensures precise drilling, making it an essential for upgrading your engine's oil system.

Features:

  • For 1953-1980 Big Twin
  • Made of hardened steel for durability
  • Fixture enables the builder to do four modifications
    • Primary chain oil supply passage from the breather valve gear cavity to the back side of the oil pump body on late generator and early alternator crankcases
    • Pressure relief passage from behind the main oil pressure valve to the gear cavity on alternator crankcases
    • Crankshaft and main bearings supply passage on generator crankcases
    • Crankshaft and main bearings supply passage on early alternator crankcases
  • Made in the USA
Made in the USA
Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style S&S Cycle Oil Pump Passage Drill Jig J&P Cycles Item #1181802 Catalog Number740-613 Store Sku340517 MFR. Product #53-0013 AvailabilityIn Stock: Ships within 24 hours
