S&S Cycle HP103 Easy Start Cam Kit For Harley Twin Cam 2007-2017

S&S Cycle HP103 EZ Easy Start Camshaft Kit For Harley Twin Cam

S&S Easy Start Cam Kits belong on the short list for a hot bike or any build where reliability matters. They eliminate the need to rely on compression releases, oversized batteries, or expensive high output starters. S&S designed the Easy Start cams for performance, then revised them to deliver strong power with easier starting. Each cam uses a spring loaded, centrifugally retracted compression release lobe milled into the heel of the exhaust lobe. At cranking speed, it opens the exhaust valve slightly during the compression stroke to reduce starting effort. Once the engine fires and reaches 800 rpm, the lobe moves out of the tappet roller path so the engine runs normally at full compression.

Features:

• Start any engine regardless of displacement or compression ratio with a stock starter
• Save your starter and battery; tested for 10,000 starts without running battery down
• Allows for easy start by initially reducing cranking compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
• Available in chain drive and gear drive versions

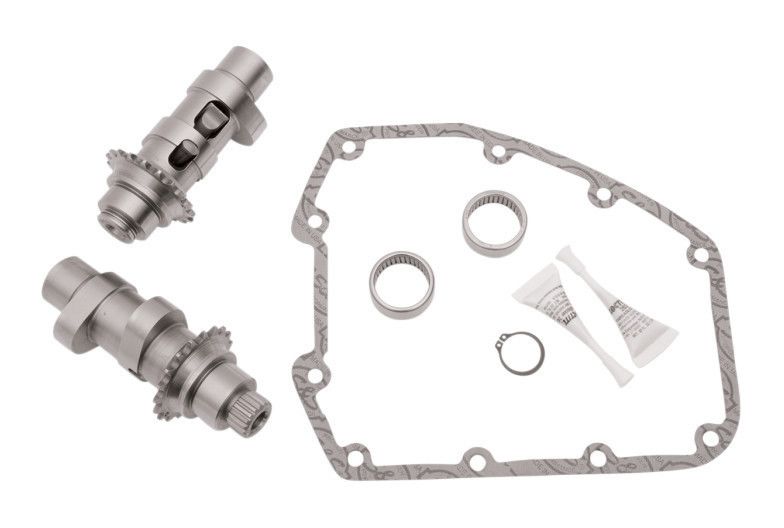

• All chain drive cams include installation kit
• All gear drive cams include 4-gear set and installation kit
• Made in the USA

HP103 Cam Info:

• Bolt-in cam for 103" & 106" big bore Twin Cam engines
• Great for lighter bikes with strong power from 3500 RPM-6000 RPM
• Intake open/close 20°/49°
• Exhaust open/close 50°/22°
• Intake duration 249°
• Exhaust duration 251°
• Lift .575"
