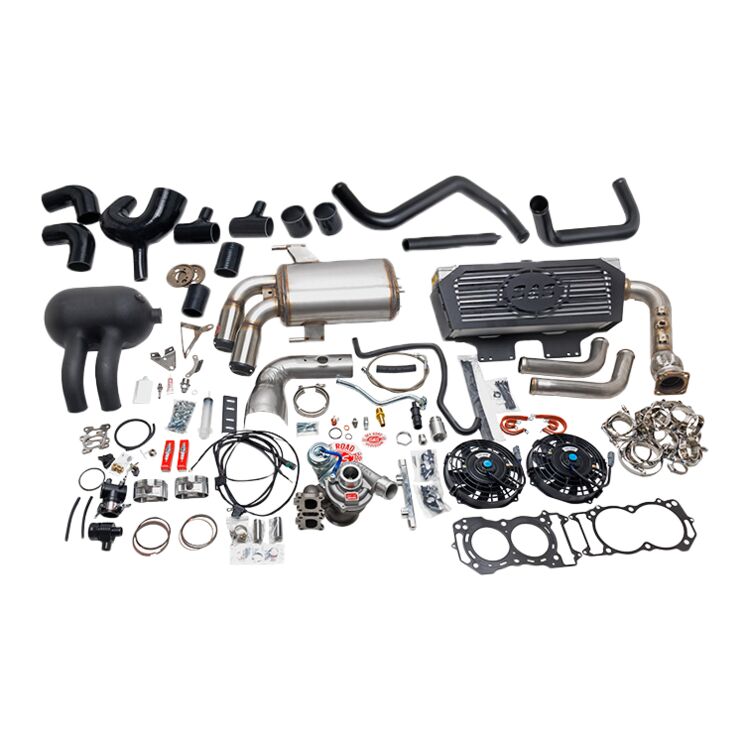

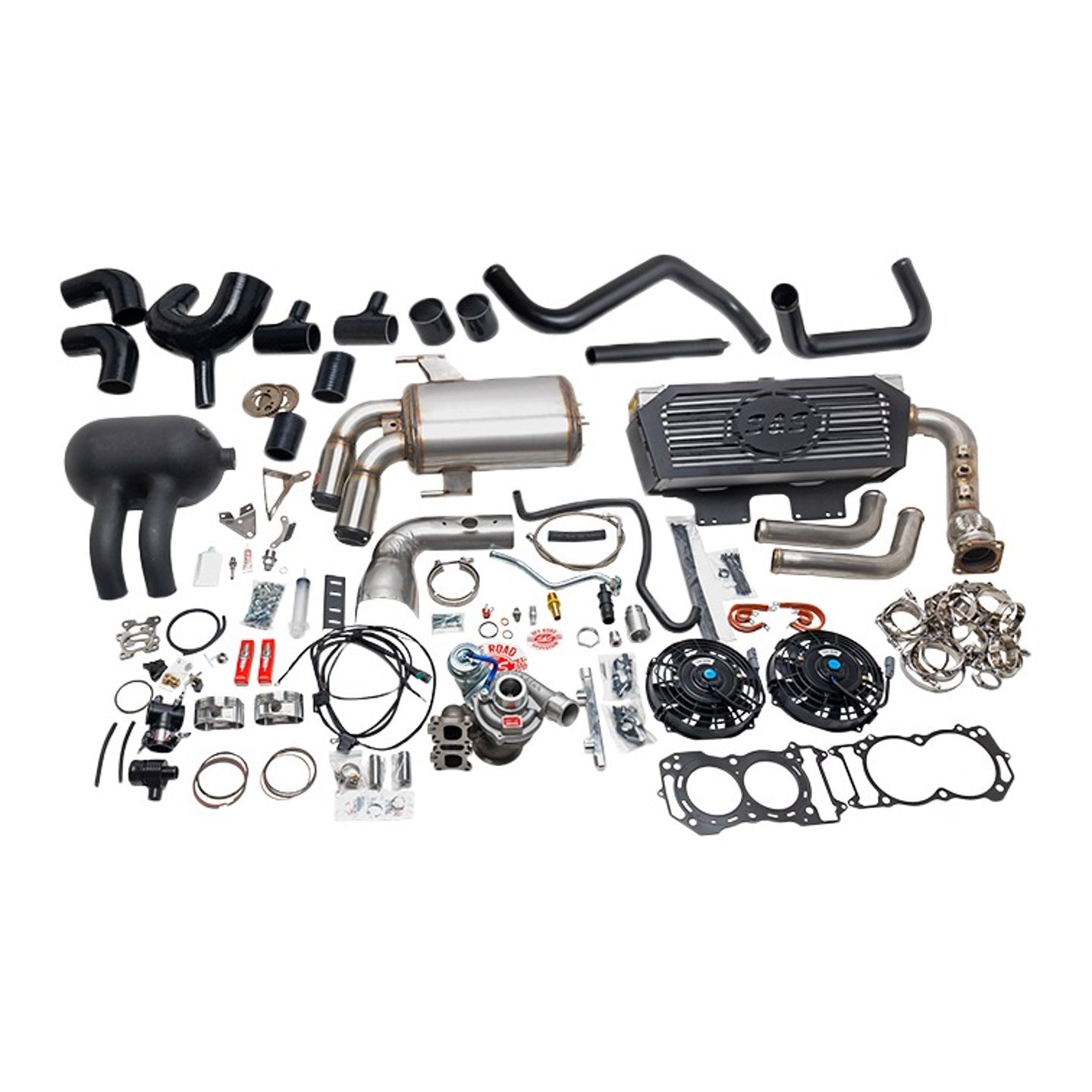

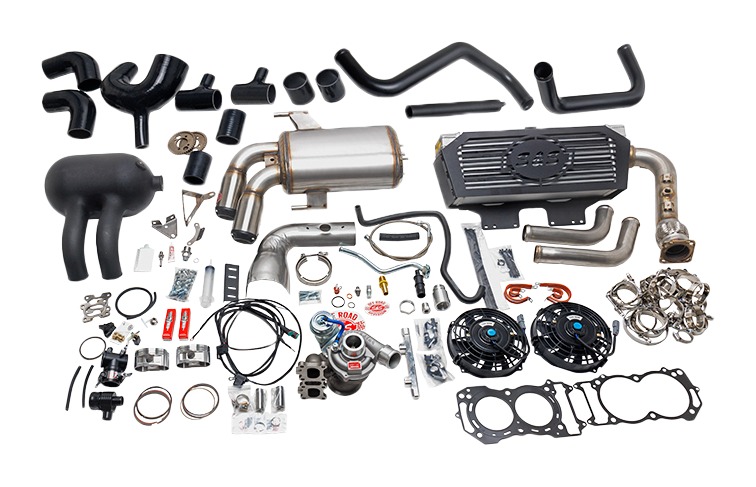

S&S Off Road Turbo Charger Kit Kawasaki KRX 1000 2020-2025

S&S Off Road Turbo Charger Kit Kawasaki KRX 1000

S&S Off Road now offers a Turbo Kit that allows for an increase in horsepower of 50%+ on the naturally aspirated motor. This bolt-on kit is specifically tuned to provide 10 PSI of boost power. The KRX incorporates Kawasaki's renowned development to create a robust side-by-side platform featuring a sturdy chassis, well thought out designed suspension, and dependable drivetrain.

The intake system, exhaust system, and fuel delivery system have been entirely revamped, alongside fitting compression pistons. Together, this creates a motor that is ready to race. This all-inclusive bolt-on application eliminates the need to forage for individual pieces, signifying convenience and efficiency.

Features:

• 50%+ increase in horsepower over factory
• 0-60 in 7s vs. 11.5s stock
• Tuned for 10 psi of boost
• 9:1 compression ratio, forged piston kit (OEM 11.5:1)
• Fits two seater only
• Full size aluminum intercooler
• All stainless steel air tubes with silicone couplers
• Blow-off valve and 3 Bar map sensor included
• Includes PV3 tuning device
• Custom Rotomolded Intake Plenum
• High Capacity billet fuel rail with fuel  damper
• 900 cc/min injectors
• Includes ALL mounting hardware and brackets
• Kit can be used with Kawasaki Sport roof, Kawasaki Alternator Kit and Kawasaki Spare tire rack
• XTO muffler with 2.25” outlets
• Flyweight rivets, compatible with stock flyweights
• Breather relocation bracket
• KQR™ Sport Roof mount relocation bracket
• All necessary fasteners, gaskets, and hardware
• “Turbo” Decals
• Install instructions
• Turbo, set to 10 psi of boost pressure
• Forged, low compression pistons
• Camshaft sprockets
• Heat range 10 spark plugs
• Intercooler with dual cooling fans
• Intercooler fan electrical harness
• High flow fuel injectors, 900 cc/min
• High flow fuel filter
• Large volume billet aluminum fuel rail
• Rotomolded high pressure intake air plenum
• 2” stainless steel charge air tubes
• Silicone 4 ply couplers
• Billet aluminum blow off valve
• Turbo oil supply and drain tubes, with oil fill adaptor
• 2.5” stainless steel exhaust with flex bellows and v-band connection

Note: The S&S Off-Road Division Turbo Kit requires substantial disassembly of the engine as well as tuning and will require a shop well versed in motor building to properly install.
