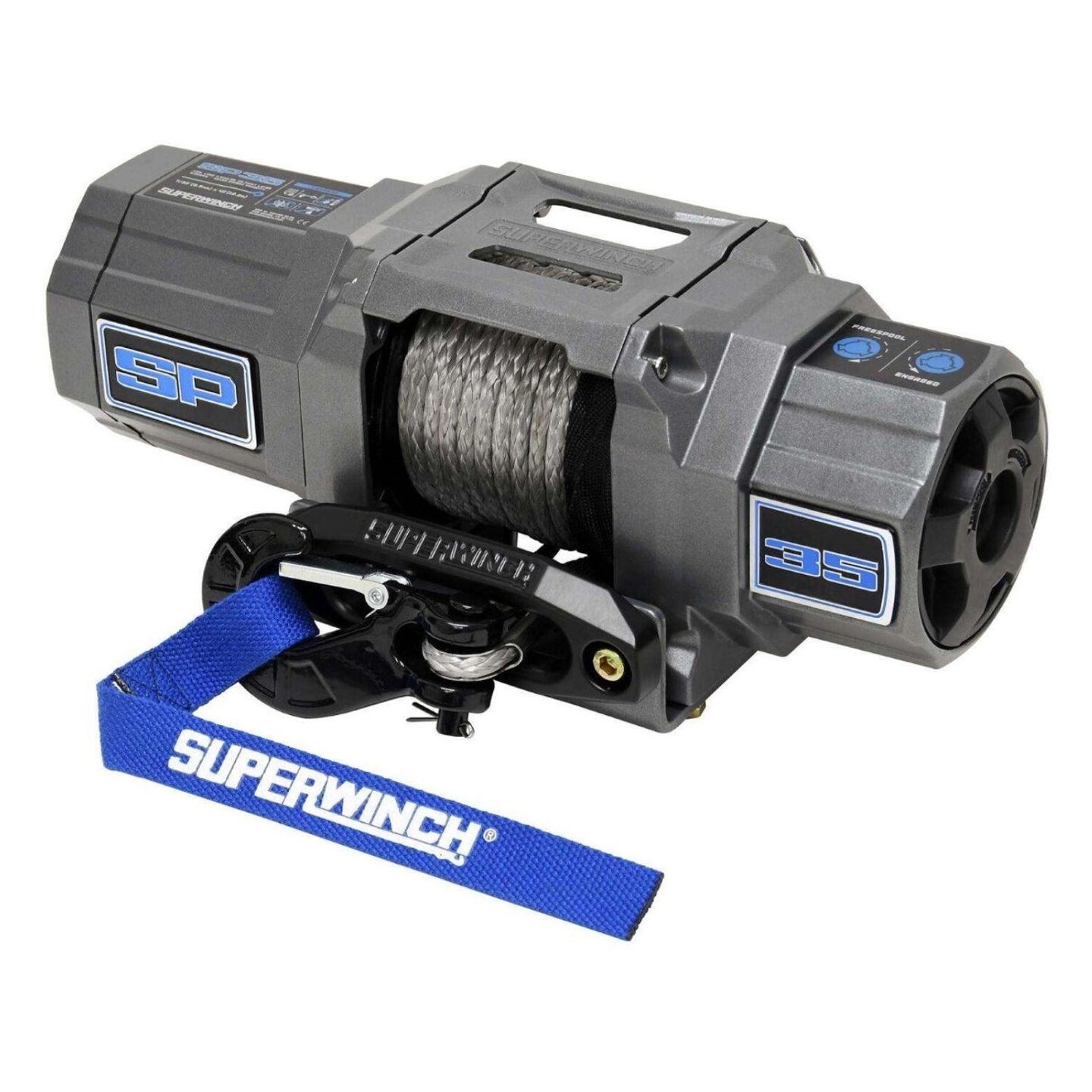

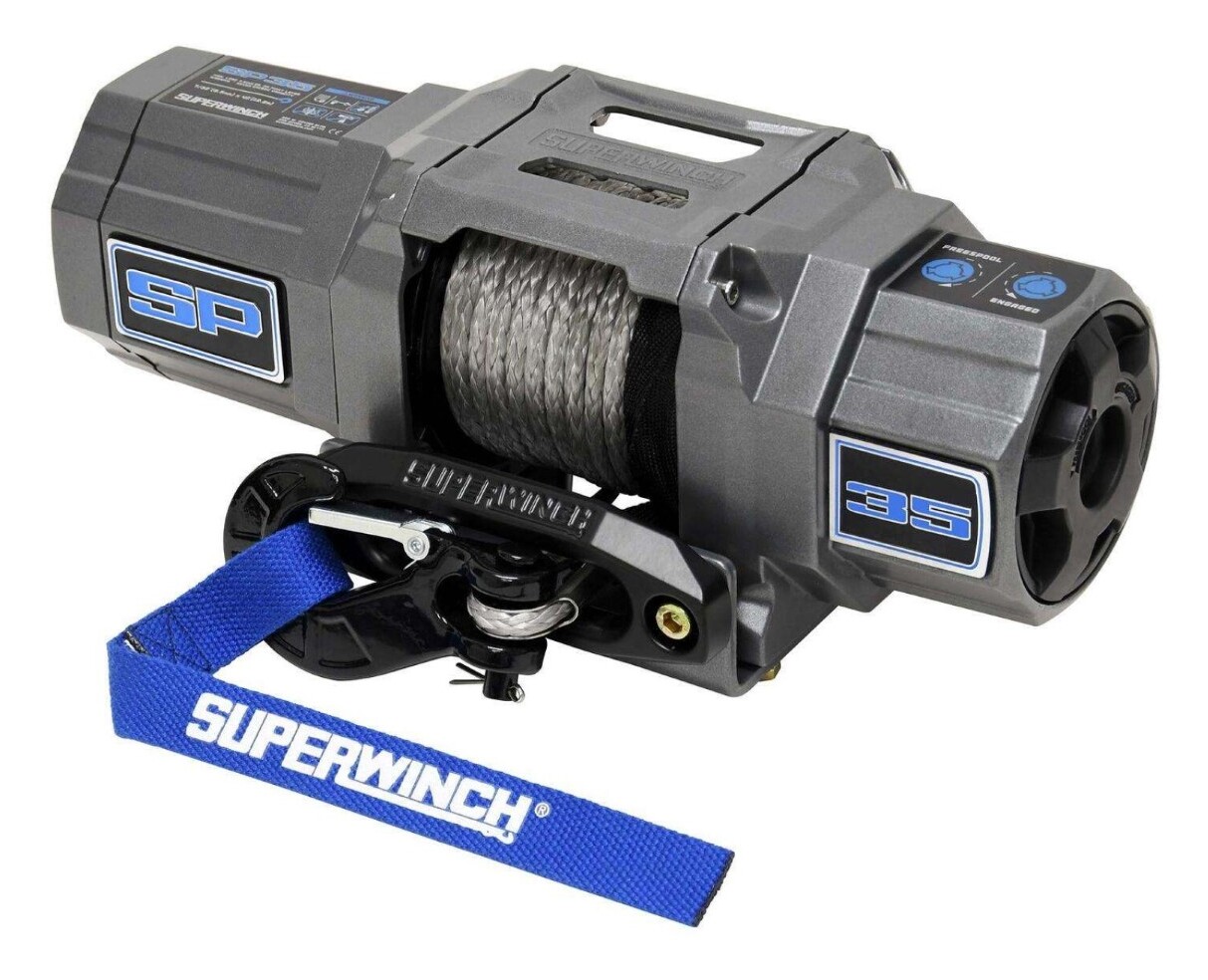

Superwinch SP35 SR Powersports 3500lb Winch

Superwinch SP35 Powersports 3500lb Winch

The SP 35 Steel Rope Winch is the perfect addition for ATV and UTV enthusiasts needing robust pulling power. This winch boasts a 3,500 pounds pull rating, ensuring reliable performance in sand, mud, or any demanding work environment. Equipped with a 40-foot steel wire rope, it operates on a 12 volt, 1.6 HP permanent magnet motor, delivering efficient dynamic braking. The robust 3-Stage planetary gearing and a 198:1 gear ratio enhance its efficiency, complemented by an ergonomic twist-lock clutch for secure load management. It also features dash-mounted control switches, a wired remote for convenient operation, and a patented drum light for visibility during nighttime use.

Specifications:

• Horsepower: 1.6hp, permanent magnet motor 12V DC
• Rated Single Line Pull: 3500lbs
• Rope Length: 7/32" x 40 ft (5.5.0mm x 12.2m)
• Rope Material: Synthetic rope
• Patented LED lighted drum
• Brake System: Full load holding automatic brake
• Clutch: Ergonomic twistlock
• Color: Graphite
• Dimensions: 19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
• Finish: Powder coated graphite
• Gear Ratio: 198:1
• Drum: 1.96" x 3.74"
• Gear System: 3-stage planetary
• Frame Material: Steel
• Mounting Bolt Pattern: 4.88in × 3.0in (124mm × 76mm)
• Remote Control: Dash-mounted control switches and handheld remote control
• Warranty: Limited lifetime mechanical / 3 year limited electrical
• Winch Hook: 1/4in, clevis pinned, latched
• Includes all pictured hardware
