Wilwood Big Brake Kit Can-Am Maverick X3 / X3 MAX 2017-2024

Name: Wilwood Big Brake Kit Can-Am Maverick X3 / X3 MAX 2017-2024
Brand: Wilwood
SKU: 10325391
Price: 1374.56 USD
Availability: InStock

Item: P1057561

0 Read 0 Reviews Write a Review

The Wilwood Big Brake Kit offers upgraded components for your UTV / Side-by-Side, including dynamically-mounted rotors and enhanced calipers. This kit… Read More

Fullscreen Zoom

$1,344^.¹⁶$1,374^.⁵⁶

$1,414.91$1,446.91

Save up to $72.35 5%

Rebate Available! View Details

Make Sure it Fits Select a Vehicle

Type: Select a Type

Fitment: Select a Fitment

This item Ships FREE

Guaranteed Low Price

Military and First Responder Discount

Product Details

Product Description

Part Numbers

Fitment

Resources

Wilwood Big Brake Kit Can-Am Maverick X3 / X3 MAX

The Wilwood Big Brake Kit offers upgraded components for your UTV / Side-by-Side, including dynamically-mounted rotors and enhanced calipers. This kit features fixed mount multi-piston calipers that provide greater clamping force compared to stock, along with larger diameter floating rotors for increased brake torque and improved braking performance on more powerful UTVs. Crafted with forged aluminum differential-bore four or six piston calipers to reduce deflection and ensure consistent engagement, resulting in enhanced braking force and pedal feel. The high-friction steel rotors are larger and thicker (up to 20% greater in diameter and thicker), reducing distortion, while the dynamic mounting minimizes thermal stress and prevents piston knockback on rough terrain.

Features:

Dynamically-mounted rotors
Fixed mount multi-piston calipers
Forged aluminum differential-bore four and six piston calipers
High-friction steel rotors
Black Electro Coat rotor surface finish
Powder coated calipers for durability
Includes BP-10 medium friction pads
Minimum required wheel diameter of 14 Inches
Sold as a pair (front set and back set sold separately)

Includes:

2 Forged aluminum differential-bore calipers
2 Larger diameter floating rotors
2 sets of brake pads
Mounting hardware

Specifications:

Front Calipers
- Piston Count:6
- Piston 1 Bore (in):1.12
- Piston 2 Bore (in):1.12
- Piston 3 Bore (in):1.00
- Piston Area (In2):2.27
- Piston Type:Stainless
- Mount Type:Lug
- Brake Pad Plate:7812
- Brake Pad Area (In2):6.36
- Brake Pad Volume (In3):2.1
- Pad Compound:BP-10
Front Rotors
- Surface Finish:Black Electro Coat
- Material:Steel
- Outside Diameter (in):11.25
- Width (in):0.25
- Vane Count:Solid
- Design Type:Solid
- Bedded:No
- Dynamically Balanced:No
Rear Calipers
- Piston Count:4
- Piston 1 Bore (in):1.12
- Piston 2 Bore (in):1.12
- Piston 3 Bore (in):0
- Piston Area (In2):1.98
- Piston Type:Stainless
- Mount Type:Lug
- Brake Pad Plate:7812
- Brake Pad Area (In2):6.36
- Brake Pad Volume (In3):2.1
- Pad Compound:BP-10
Rear Rotors
- Surface Finish:Black Electro Coat
- Material:Steel
- Outside Diameter (in):11.25
- Width (in):0.25
- Vane Count:Solid
- Design Type:Solid
- Bedded:No
- Dynamically Balanced:No

Product Style	J&P Cycles Item #	Catalog Number	Store Sku	MFR. Product #	Availability
Product Style Black Caliper \| Drilled Steel Rotor / Rear	J&P Cycles Item #10325386	Catalog Number10325386	Store Sku	MFR. Product #140-16629-D	AvailabilityOnly 3 Left: Ships within 24 hours
Product Style Black Caliper \| Drilled Steel Rotor / Front	J&P Cycles Item #10325390	Catalog Number10325390	Store Sku	MFR. Product #140-16628-D	AvailabilityOnly 1 Left: Ships within 24 hours

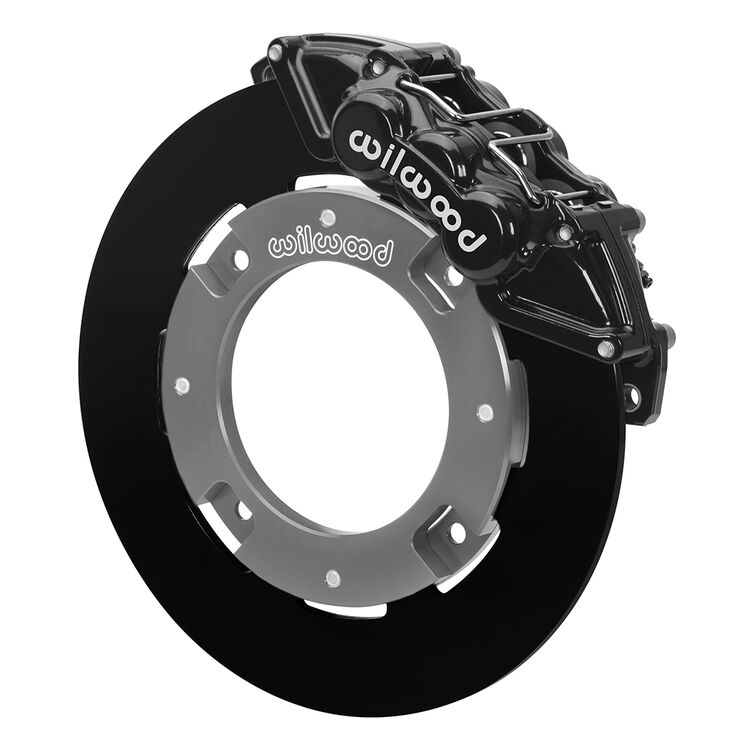

Product Style Rear / Black Caliper \| Solid Steel Rotor	J&P Cycles Item #10325384	Catalog Number10325384	Store Sku	MFR. Product #140-16629	AvailabilityOnly 1 Left: Ships within 24 hours
Product Style Front / Black Caliper \| Solid Steel Rotor	J&P Cycles Item #10325388	Catalog Number10325388	Store Sku	MFR. Product #140-16628	AvailabilityOut of Stock
Product Style Rear / Red Caliper \| Drilled Steel Rotor	J&P Cycles Item #10325387	Catalog Number10325387	Store Sku	MFR. Product #140-16629-DR	AvailabilityIn Stock: Ships within 24 hours

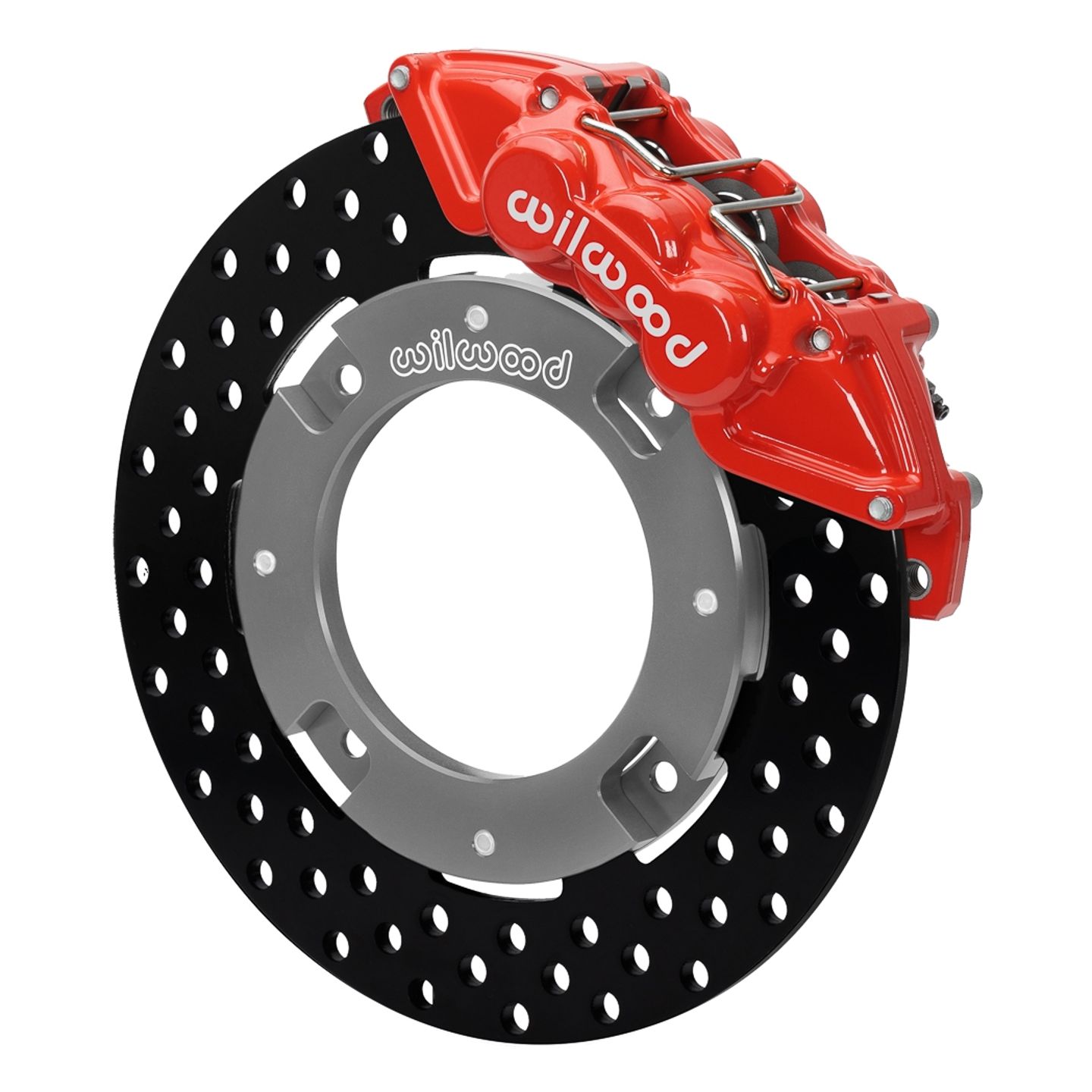

Product Style Front / Red Caliper \| Drilled Steel Rotor	J&P Cycles Item #10325391	Catalog Number10325391	Store Sku	MFR. Product #140-16628-DR	AvailabilityOnly 3 Left: Ships within 24 hours
Product Style Red Caliper \| Solid Steel Rotor / Rear	J&P Cycles Item #10325385	Catalog Number10325385	Store Sku	MFR. Product #140-16629-R	AvailabilityOut of Stock
Product Style Front / Red Caliper \| Solid Steel Rotor	J&P Cycles Item #10325389	Catalog Number10325389	Store Sku	MFR. Product #140-16628-R	AvailabilityOut of Stock

This product is vehicle specific.

Select a vehicle to ensure fitment.

Select Your Vehicle

Fitment Notes & Exceptions

Minimum required wheel diameter of 14 Inches. Please use provided instructions to check for wheel clearance
Sold as a pair (front set and back set sold separately)

This Product Fits

Can-Am: Maverick X3 2017; Maverick X3 DS Turbo 64 Inch 2021, 2022, 2023, 2024; Maverick X3 DS Turbo R 64 Inch 2021; Maverick X3 DS Turbo RR 64 Inch 2022, 2023, 2024; Maverick X3 MAX 2017, 2018; Maverick X3 MAX DS Turbo 64 Inch 2022, 2023, 2024; Maverick X3 MAX DS Turbo R 64 Inch 2021; Maverick X3 MAX DS Turbo RR 64 Inch 2022, 2023, 2024; Maverick X3 MAX RS Turbo 64 Inch 2024; Maverick X3 MAX RS Turbo R 72 Inch 2021; Maverick X3 MAX RS Turbo RR 72 Inch 2022, 2023, 2024; Maverick X3 MAX Turbo 64 Inch 2018; Maverick X3 MAX Turbo R 64 Inch 2018, 2019, 2020; Maverick X3 MAX XDS-DPS 2017, 2018; Maverick X3 MAX XDS-DPS Turbo R 64 Inch 2018, 2019; Maverick X3 MAX XDS Turbo RR 64 Inch 2020, 2021, 2022, 2023, 2024; Maverick X3 MAX XMR Turbo RR 72 Inch 2020, 2021, 2022, 2023, 2024; Maverick X3 MAX XRC Turbo RR 72 Inch 2024; Maverick X3 MAX XRS-DPS 2017, 2018; Maverick X3 MAX XRS-DPS Turbo R 72 Inch 2017, 2018; Maverick X3 MAX XRS Turbo RR 72 Inch 2020, 2021, 2022, 2023, 2024; Maverick X3 MAX XRS Turbo RR w/Smart-Shox 72 Inch 2023, 2024; Maverick X3 RS Turbo 72 Inch 2024; Maverick X3 RS Turbo R 72 Inch 2021; Maverick X3 RS Turbo RR 72 Inch 2022, 2023, 2024; Maverick X3 Turbo 64 Inch 2017, 2018, 2019, 2020, 2021; Maverick X3 Turbo R 64 inch 2018; Maverick X3 Turbo RR XMR 64 Inch 2022, 2023, 2024; Maverick X3 Turbo RR XMR 72 Inch 2022, 2023, 2024; Maverick X3 Turbo RR XRC 64 Inch 2022, 2023, 2024; Maverick X3 Turbo RR XRC 72 Inch 2022, 2023, 2024; Maverick X3 XDS-DPS 2017; Maverick X3 XDS-DPS Turbo R 64 Inch 2018; Maverick X3 XDS Turbo R 64 Inch 2019; Maverick X3 XDS Turbo RR 64 Inch 2020, 2021, 2022, 2023, 2024; Maverick X3 XMR Turbo 64 Inch 2018, 2019, 2020; Maverick X3 XMR Turbo R 72 Inch 2018; Maverick X3 XMR Turbo RR 72 Inch 2020, 2021; Maverick X3 XRC Turbo 64 Inch 2018; Maverick X3 XRC Turbo R 72 Inch 2018, 2019, 2020; Maverick X3 XRS-DPS Turbo R 72 Inch 2018; Maverick X3 XRS Turbo R 72 inch 2017, 2018, 2019; Maverick X3 XRS Turbo RR 72 Inch 2020, 2021, 2022, 2023, 2024; Maverick X3 XRS Turbo RR w/Smart-Shox 72 Inch 2023, 2024

This item is also available for 18 different vehicles. View All Models

Polaris: RZR RS1 EPS 2018-2019; RZR RS1 Premium 2020-2021; RZR XP 1000 EPS 2014-2019; RZR XP 1000 EPS Dynamix Edition 2019; RZR XP 1000 EPS High Lifter Edition 2015-2022; RZR XP 1000 EPS Trails and Rocks Edition 2018-2022; RZR XP 1000 EPS w/Ride Command 2017-2019; RZR XP 1000 Premium 2020-2023; RZR XP 1000 Sport 2021-2023; RZR XP 1000 Ultimate 2023; RZR XP 4 1000 EPS 2014-2019; RZR XP 4 1000 EPS Dynamix Edition 2019; RZR XP 4 1000 EPS High Lifter Edition 2016-2022; RZR XP 4 1000 EPS w/Ride Command 2018-2019; RZR XP 4 1000 Premium 2020-2023; RZR XP 4 1000 Premium w/Ride Command 2020-2021; RZR XP 4 1000 Sport 2021-2023; RZR XP 4 1000 Ultimate w/Ride Command 2023

Wilwood Big Brake Kit Can-Am Maverick X3 / X3 MAX 2017-2024 Resources
