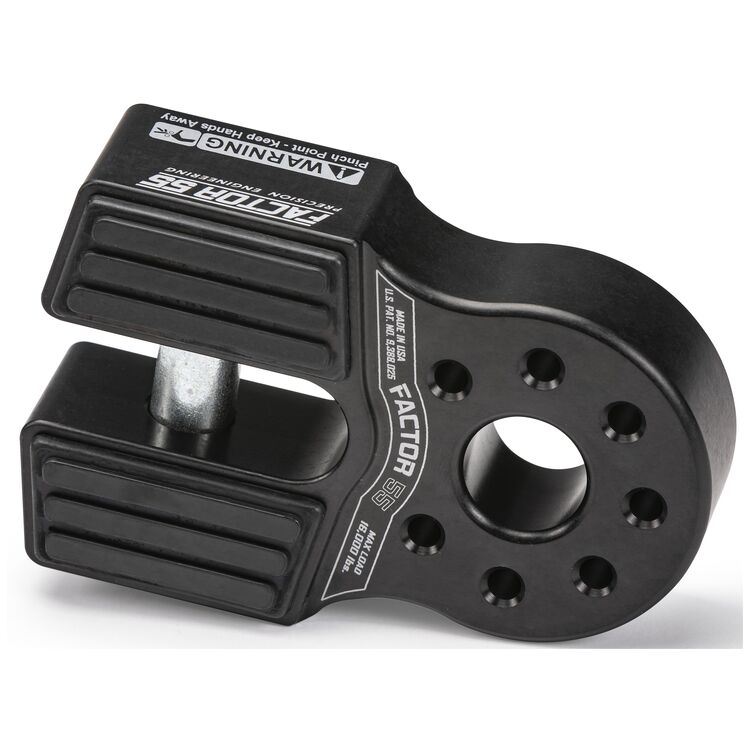

Factor 55 Flatlink XTV Winch Shackle

Factor 55 Flatlink XTV Winch Shackle

The Flatlink XTV provides an enhanced alternative for UTV and ATV winch owners who prefer a more safe and durable shackle/D-Ring replacement to the traditional winch hook. The typical loose/tight cycles of a winching recovery often cause winch hooks to sever and fray recovery straps, and frequently permit strap ends to slip away. However, this issue is effectively eliminated by screw pin shackles due to their secure screw pin attachment that prevents strap loops from escaping. The Flatlink XTV ensures a swift installation process that eliminates the need for splicing and is compatible with either steel cables or synthetic ropes up to 5/16 inches.

Features:

• Constructed of 6000 series billet aluminum and 6Al-4V titanium
• Anodized/powder coated in 7 different colors
• Cable eye is retained in the Flatlink XTV by a 7/16" diameter titanium double shear pin and internal snap ring
• EPDM Rubber Guard protects alloy fairleads and is securely attached to the Flatlink XTV with 4 barbed tips
• The Flatlink XTV stows neatly against either roller or Hawse type fairleads and is to be used with common standard 1/2" – 5/8" inch shackles
• Max load rating of 8000 pounds
• Failure strength of 28,000 pounds
• Installs in minutes
• Made in USA
