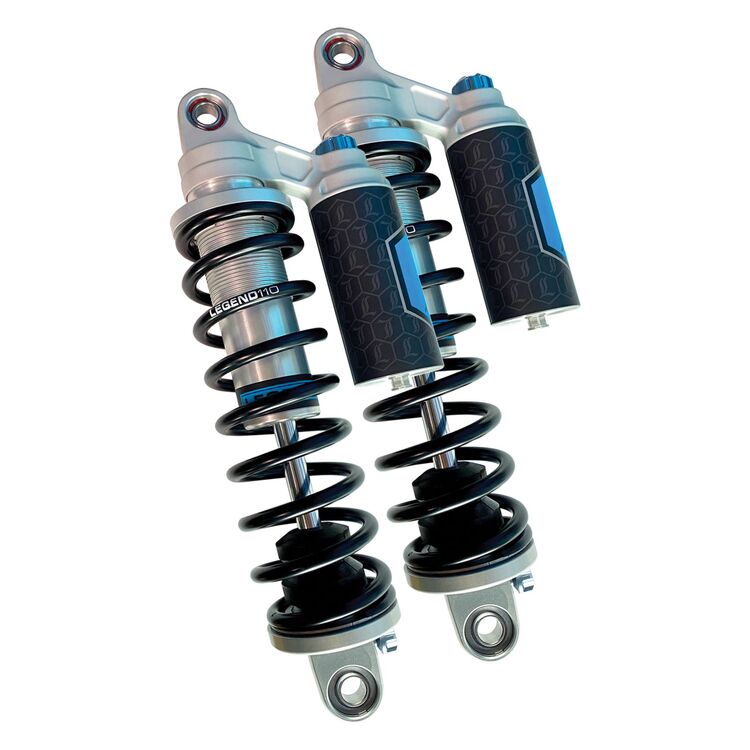

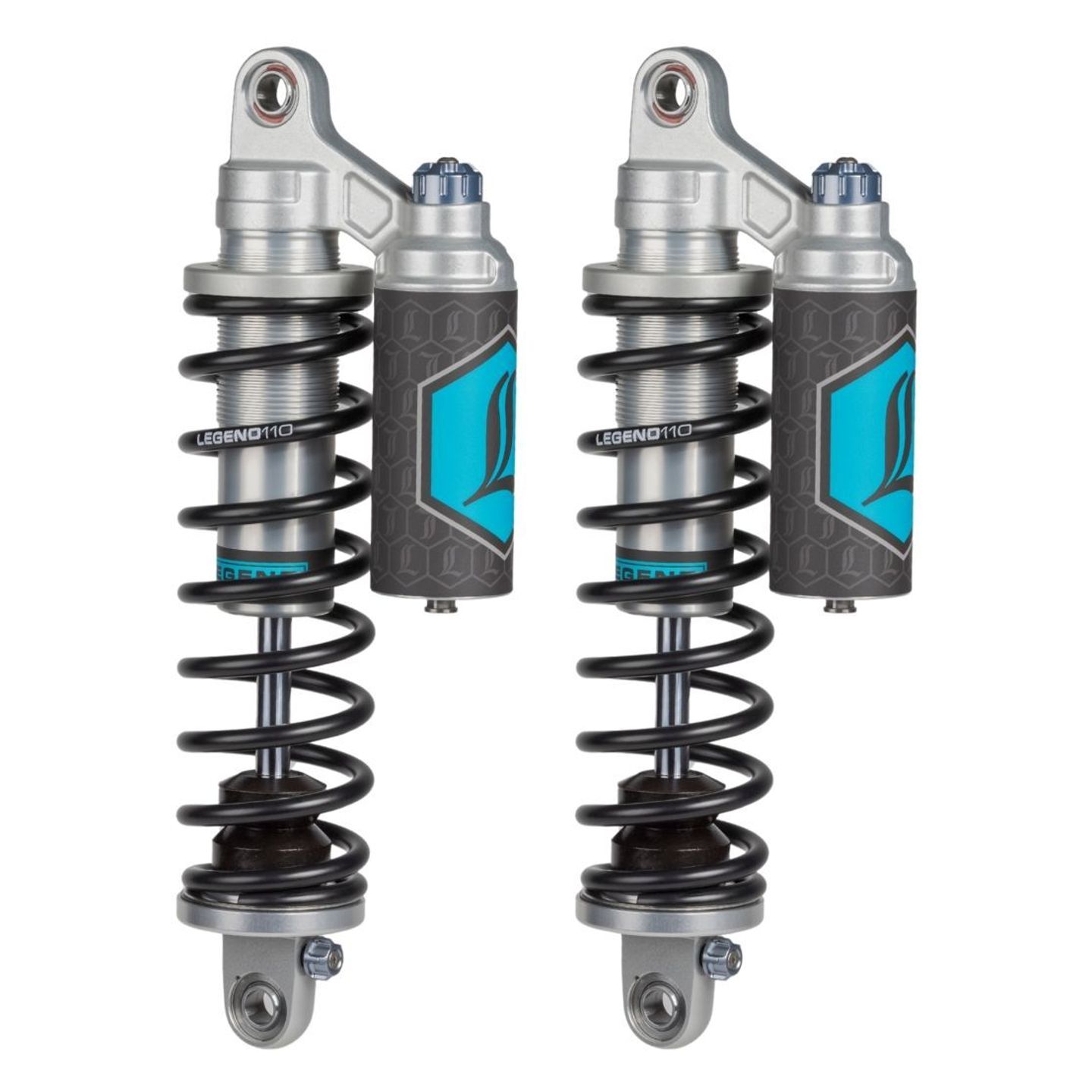

Legend Suspension REVO-ARC Piggyback Remote Reservoir Rear Coil Shocks For Harley FXR

For the last 25 years Legend Suspension has been making shocks for V-Twin motorcycles. If you want to go fast and go far, there is no better upgrade to your machine than a set of high-quality, adjustable Legend Shocks! At the very top of their line sits the REVO-ARC rear shocks. The REVO-ARCs utilize an external fluid reservoir for additional cooling capacity that is remote mounted for easy access and customization. The REVO-ARCs are adjustable for both rebound and compression damping with 7 position dials on both settings ensuring you can find a setting that is just right!

Features:

  • Finished in Black Type III Hard-Coat Anodize
  • Spring rates produce superior ride quality and performance
  • REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
  • Extended coil length has larger "sweet spot" without increasing overall shock length
  • Adjusts by hand with no tools needed
  • Available in 13" and 14", standard or heavy-duty applications
  • Easy installation and alignment, provided by spherical bearings on both top and bottom
  • 35mm monotube construction
  • Deflective disc valve stacks
  • Balanced/Matched piston and base-valve design specific to motorcycle applications
  • Low friction sealing system and PTFE based sliding bearings for improved performance and feel
  • Seven external knob adjustments allow fine-tuning of rebound and compression
  • Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference

Note Dyna, FXR, Sportster: Heavy Duty applications are recommended for 250lb.+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style. 14" shock options require use of shorter style exhausts that do not extend beyond the rear axle.

Made in the USA
Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style 13"/Heavy-Duty / Gold J&P Cycles Item #10239274 Catalog Number590-0282 Store Sku MFR. Product #1310-1923 AvailabilityIn Stock: Ships within 24 hours
Product Style Clear / 13"/Heavy-Duty J&P Cycles Item #10239275 Catalog Number590-0294 Store Sku MFR. Product #1310-1947 AvailabilityIn Stock: Ships within 24 hours
Product Style Black / 13"/Heavy-Duty J&P Cycles Item #10239285 Catalog Number510-2500 Store Sku MFR. Product #1310-1899 AvailabilityIn Stock: Ships within 24 hours
Product Style Clear / 13"/Standard Duty J&P Cycles Item #10239280 Catalog Number590-0293 Store Sku MFR. Product #1310-1946 AvailabilityIn Stock: Ships within 24 hours
Product Style 13"/Standard Duty / Gold J&P Cycles Item #10239281 Catalog Number590-0281 Store Sku MFR. Product #1310-1922 AvailabilityOnly 3 Left: Ships within 24 hours
Product Style Black / 13"/Standard Duty J&P Cycles Item #10239282 Catalog Number510-2499 Store Sku MFR. Product #1310-1898 AvailabilityOnly 3 Left: Ships within 24 hours
Product Style Clear / 14"/Heavy-Duty J&P Cycles Item #10239276 Catalog Number590-0296 Store Sku MFR. Product #1310-1949 AvailabilityOnly 1 Left: Ships within 24 hours
Product Style 14"/Heavy-Duty / Gold J&P Cycles Item #10239277 Catalog Number590-0284 Store Sku MFR. Product #1310-1925 AvailabilityOnly 2 Left: Ships within 24 hours
Product Style Black / 14"/Heavy-Duty J&P Cycles Item #10239284 Catalog Number510-2502 Store Sku MFR. Product #1310-1901 AvailabilityIn Stock: Ships within 24 hours
Product Style 14"/Standard Duty / Gold J&P Cycles Item #10239278 Catalog Number590-0283 Store Sku MFR. Product #1310-1924 AvailabilityIn Stock: Ships within 24 hours
Product Style Clear / 14"/Standard Duty J&P Cycles Item #10239279 Catalog Number590-0295 Store Sku MFR. Product #1310-1948 AvailabilityIn Stock: Ships within 24 hours
Product Style Black / 14"/Standard Duty J&P Cycles Item #10239283 Catalog Number510-2501 Store Sku MFR. Product #1310-1900 AvailabilityIn Stock: Ships within 24 hours
Please review this product's fitment notes & exceptions prior to purchase: Add to Cart
This product is vehicle specific.
Select a vehicle to ensure fitment.
Fitment Notes & Exceptions
  • 14" shock options require use of shorter style exhausts that do not extend beyond the rear axle
