Product Details

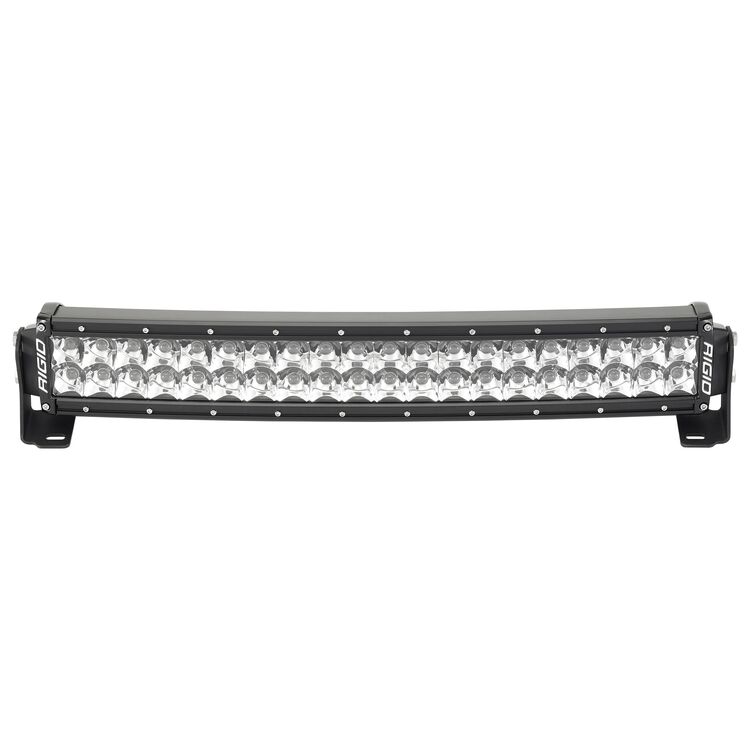

Rigid RDS-Series Pro Curved 20" LED Light Bar

Introducing the Rigid RDS-Series Pro, the industry's first curved LED light bar. With up to 70% more brightness and a curved design for better coverage, it sets new standards for illumination. Inspired by the popular E-Series, its gentle curve fits modern off-road vehicles perfectly. Made in Gilbert, Arizona, Rigid leads the way in LED lighting, offering everything from rock lights to GPS-enabled bars. With their advanced optics, they provide 40% more brightness while using 50% less power than competitors. Own the night with Rigid's RDS-Series Pro.

Specifications:

  • Size: 20.0 Inch: Light Pattern: Spot: Amp Draw: 16.72 Watts: 234 Volts: 36 Lumens: 31680
  • Size: 30.0 Inch: Light Pattern: Spot: Amp Draw: 19.80 Watts: 277 Volts: 36 Lumens: 47520
  • Size: 40.0 Inch: Light Pattern: Spot: Amp Draw: 22.44 Watts: 314 Volts: 36 Lumens: 63360
  • Size: 54.0 Inch: Light Pattern: Spot: Amp Draw: 32.34 Watts: 453 Volts: 36 Lumens: 85538

Includes:

  • 2 black powder coated L-shaped brackets
  • Open leads (no connector)
  • Wiring harness with switch

Features:

  • Revolutionary curved construction
  • Unmatched light coverage
  • Spotlight beam pattern
  • 50,000+ hour lifespan
  • 9-36 VDC operation
  • Durable UV-resistant powder coated finish
  • Aluminum alloy construction
  • Integrated thermal management
  • Impact resistant polycarbonate lens
  • Over/under voltage protection
  • RFI/EMI protection
  • Reverse polarity protection
  • RoHS compliant
  • IP69K compliant against dust/water ingress
  • Epoxy sealed
  • Pressure equalizing vent
  • Operating temp -40 to 145 degrees F
  • SAE J575 compliant against shock/vibration
  • Limited lifetime warranty
  • For off-road use only
Made in the USA
Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style 20" / Spot J&P Cycles Item #10065804 Catalog Number10065804 Store Sku MFR. Product #882213 AvailabilityIn Stock: Ships within 24 hours
Fitment Notes & Exceptions
This is a universal fit part; it may or may not fit without modification.

Rigid RDS-Series Pro Curved 20" LED Light Bar Schematic

Product Description
Part Numbers
Fitment
Schematic
