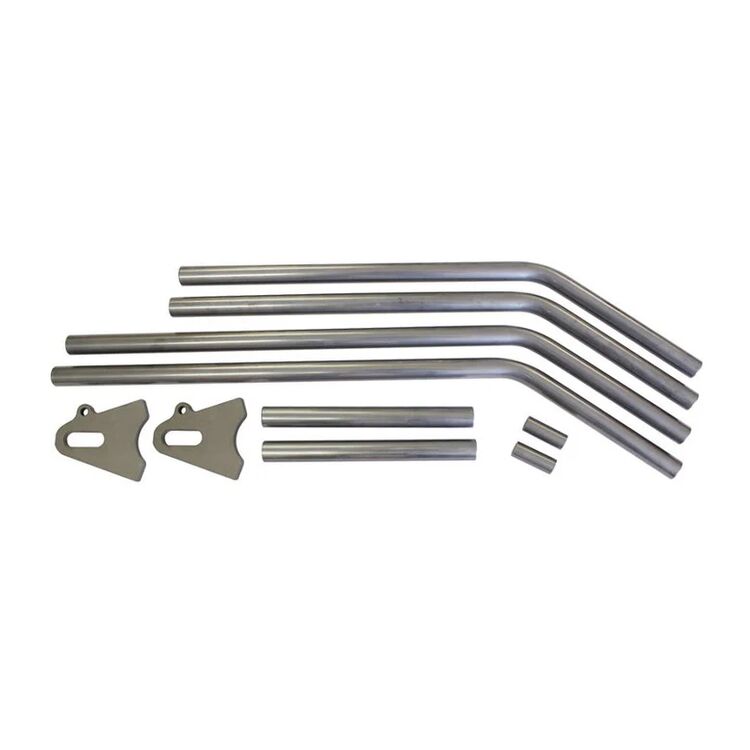

TC Bros Weld-On Hardtail Frame Kit

TC Bros Weld-On Hardtail Frame Kit

Designed for builders aiming to create a unique motorcycle, this kit offers unparalleled flexibility in customization. Users can adjust stretch, ground clearance, width and numerous other parameters to achieve desired specifications. Since the kit is universal, it requires the builder to adapt their frame accordingly to ensure proper fit and functionality. The possibilities for fitment are abundant, allowing for a tailored approach to building a one-of-a-kind bike.

Features:

• Tubing is 1 1/8" Diameter Steel with .120 (about 1/8" wall thickness
• This tubing is the same as used on the TC Bros XS650 & CB750 weld on hardtails
• The axle plates are cut from 3/8" thick steel and have an integrated mounting tab for easy fender mounting
• The axle slots are 20mm (.787") which is a common metric axle size
• In addition to the cross tubes, also included are solid cold rolled steel slugs that fit tightly into the inner diameter of the tubing for joining the hard tail to the stock frame tubes
• Made in the USA
