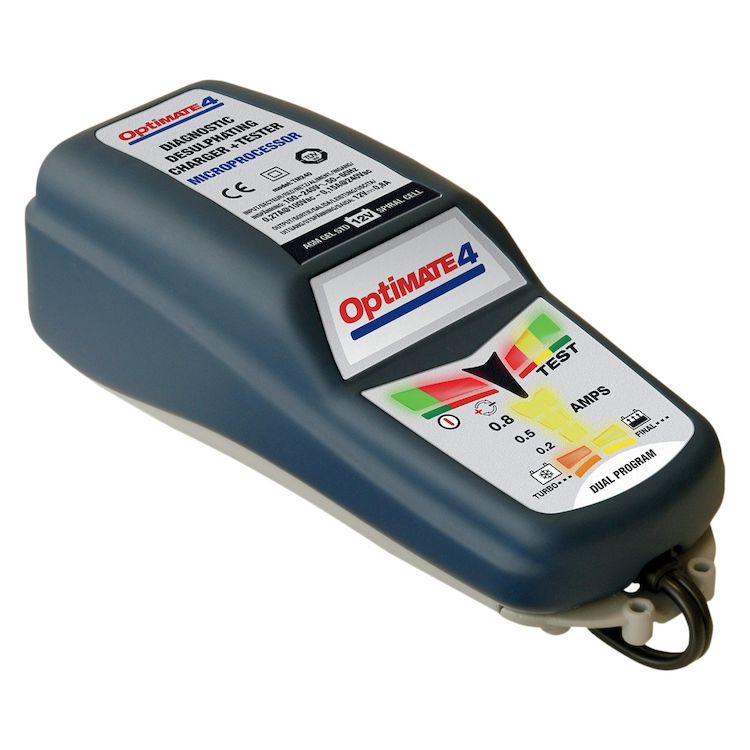

TecMate OptiMate 4 Dual Program Battery Charger for BMW CANbus

TecMate OptiMate 4 Dual Program Battery Charger for BMW CANbus

The TecMate Optimate 4 is equipped with CANbus readiness. Its weatherproof shell is designed with integrated wall mounts and improved energy efficiency for optimal performance in extreme conditions, including cold environments down to -40 degrees. Supported by multiple powersport vehicle OE's and globally recognised users, the OptiMate 4 DUAL PROGRAM is perfectly adapted for all types of powersport vehicles, particularly those used on water or in cold climates. The product is suitable for STD (with removable filler caps), sealed AGM (Absorbed Glass Mat), and sealed GEL 12V lead-acid batteries up to 50Ah. With a fully automatic function, it includes all necessary safety features such as reverse polarity protection and no spark connection. It is also accredited to UL & CSA safety standards for automatic battery chargers.

Features:

• CAN-bus program features KEYLESS activation program guarantees automatic re-opening of the connection even with the ignition not turned on
• Program 2 (default setting on this model) recovers, charges, tests and maintains the battery through the CAN-bus controlled 12V socket with the included SAE-79 accessory
• 10 second test at connection indicates your battery condition, a quick and easy ‘ride meter’ that will determine if you are ready to go or will have to charge the battery first
• OptiMate 4’s proven multi stage desulfation program saves neglected batteries (as low as 0.5V) other chargers can't
• Multi step program, that includes a unique cell voltage balancing step, guarantees the fastest and most complete charge
• OptiMate 4 will maintain your battery safe and ready-to-go for months on end, with the extremely effective “charge and rest” maintenance program
• Hourly battery condition tests monitors the battery and the current drain by the vehicle circuitry; a problem is indicated on an easy to understand light display
• 10 second test at connection for a more hands on diagnosis of battery condition

Specifications:

• Safe for 12V lead-acid batteries AGM/MF, Standard, & GEL batteries
• 2Ah to 75Ah rated capacity
• Fully automatic program control microprocessor with 6 stages
• Reverse drain current less than 0.5mA
• Output current (bulk charge 0.8A)
• Automatic desulfation 2 stages (recovery and Turbo-recovery)
• Charge time limit 48 hours (maintenance time: unlimited)
• Maintain / test cycles 30 min/30 min (alternating hourly)
• Charge retention test range: 12.0 - 12.6V. GOOD (green) = battery voltage > 12.6V
• Size 7.87  x 2.95  x  2.40 inches (200 x 75 x 61mm)
• Wall mounting easy direct wall mounting
• Input cable length 6ft (2m)
• Output cable length 6ft (2m)
• Operation temperature range From -40°C&F to 40°C/104F
• 3 year warranty

Includes:

• SAE-79: 12V DIN connector
• SAE-74 clamps set for bench charging
