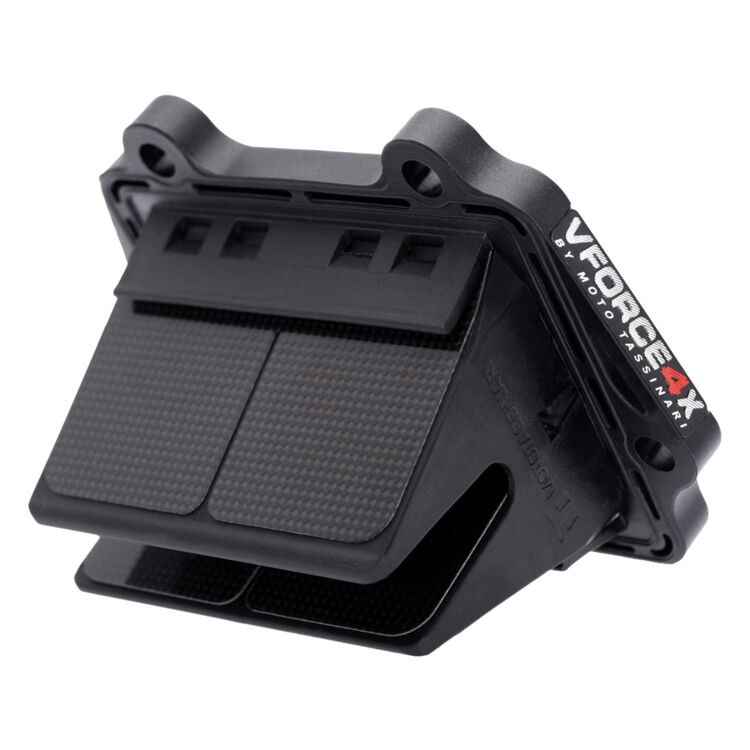

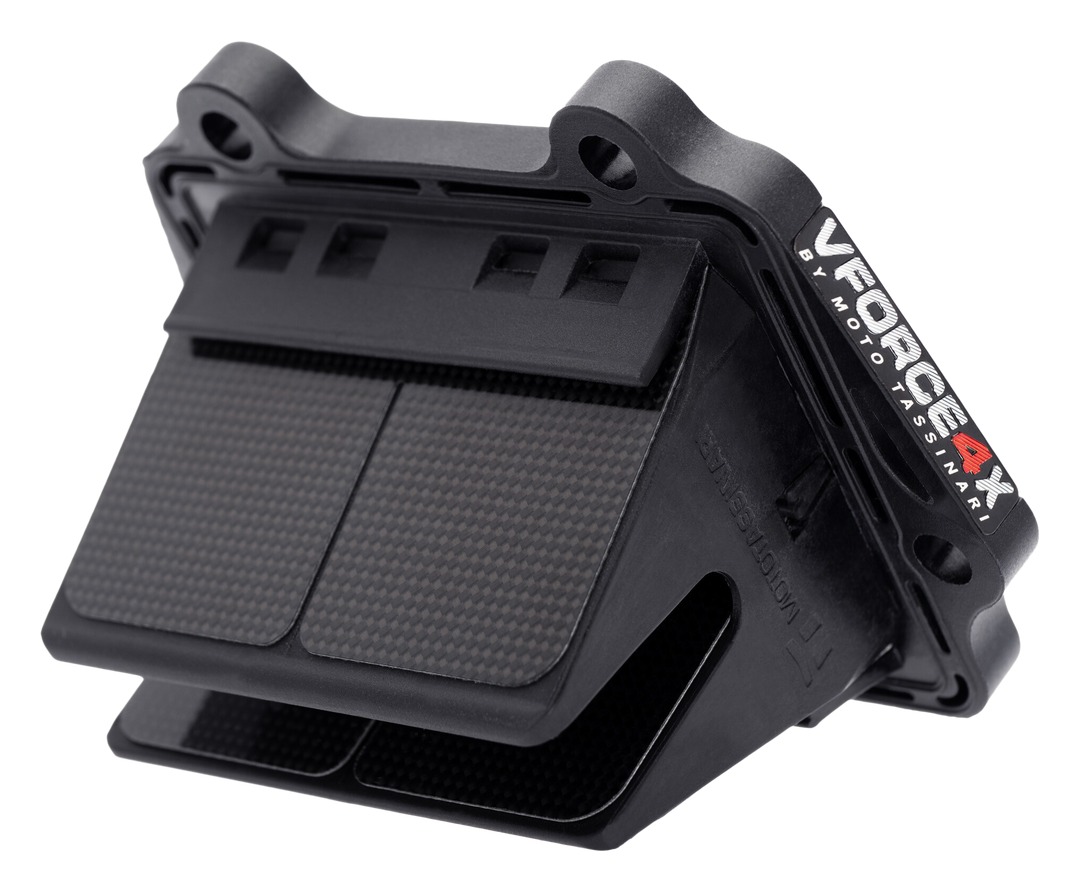

V Force 4X Reed Valve System

V Force 4X Reed Valve System

Building on the success of the VForce4R, VForce4X redefines the reed valve system with a host of improvements and a complete redesign. It features an airfoil shape at the reed tip to boost air velocity and utilizes a new reed petal resin system with carbon fiber for enhanced durability. The pre-curved reed petals ensure a tighter seal, and the extended reed stops decelerate petal tip velocity, further extending life. The redesign results in over 10% increased total airflow and a 15.6% smaller frontal area of the central wing for superior aerodynamics.

Features:

• Advanced reed petal resin system, carbon fiber and lay-up
• Pre-curved reed petal ensures better seal at the tip
• Wider reed cage for maximum airflow
• Combined reed tip area is increased by 10.5% for better airflow
• Airfoil shape added to cage tip to increase velocity from the outer ports
• Long reed stops added to progressively slow reed petal tip velocity for increased petal durability
• Reduced frontal area of the central wing combined with a more aerodynamic shape
• Replacement reeds available
• Made in the USA

Note: Images are for reference only, actual product will vary based on make and model.
