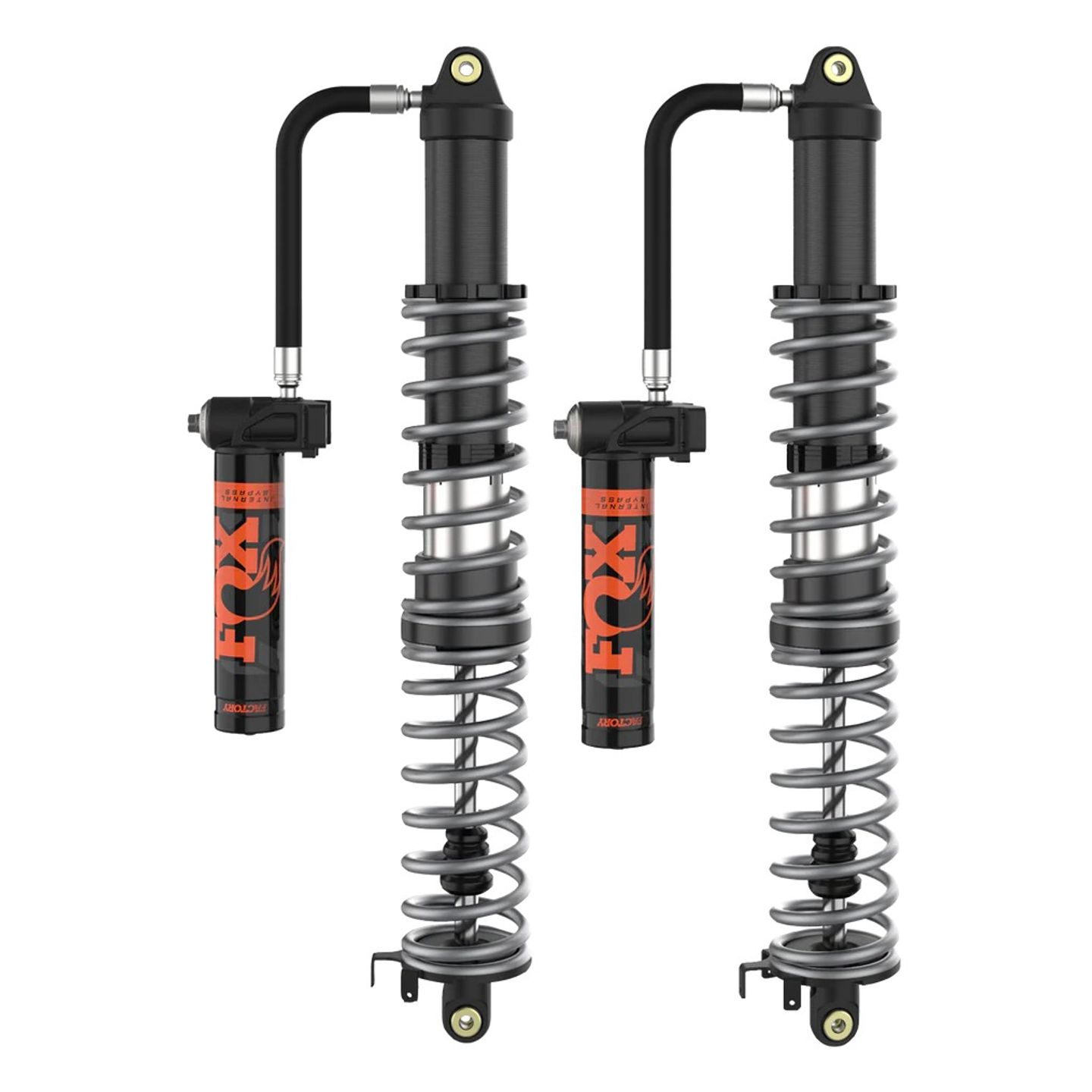

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Can-Am Maverick X3 Turbo R 2017-2023

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Can-Am Maverick X3 Turbo R

Fox Factory introduces a direct bolt-on replacement shock for UTVs / Side-by-Sides, featuring race-proven position-sensitive damping technology derived from trophy truck racing. The shocks are designed with a larger bore diameter to enhance durability and prevent fading, while velocity-sensitive damping provides additional resistance for consistent performance across varied terrain. The use of aluminum in the bodies and reservoirs ensures the shocks are lightweight, reducing overall vehicle weight without compromising on strength. For customizable suspension tuning, the shocks come equipped with independent high and low-speed compression adjusters, wide-range rebound adjusters, and a dual-rate spring package with adjustable crossover rings for optimal vehicle setup. FOX's Internal Bypass technology (IBP) varies damping control based on the piston's position within the shock, offering lighter damping for smoothing rough terrain in mid-stroke, increased resistance at full compression to prevent bottoming out at high speeds, and enhanced damping at full extension to mitigate damage from topping out.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 41.79
• Compressed: 27.00
• Travel: 14.79
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Remote

Note: Images are for reference, actual product may vary based on application
