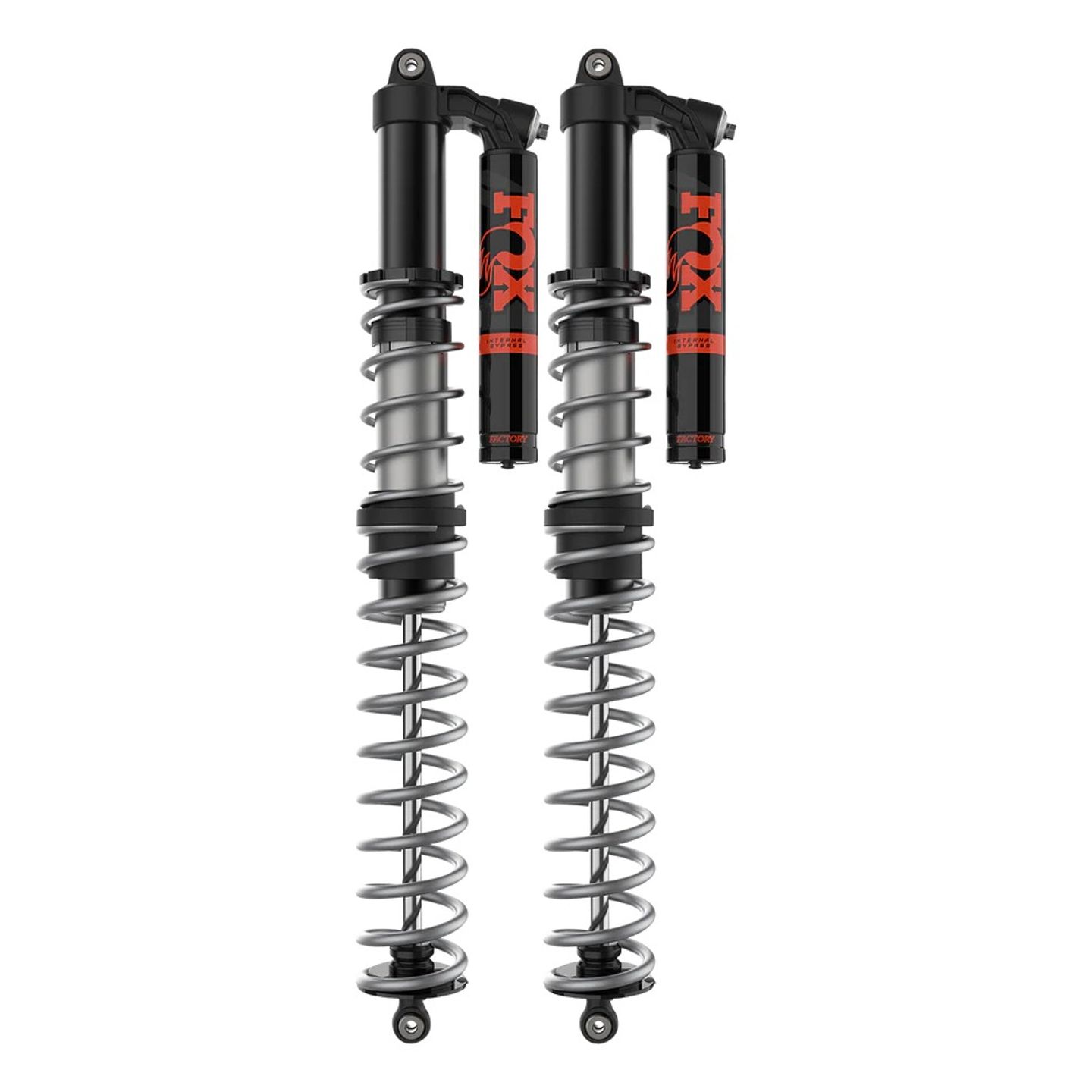

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Kawasaki Teryx KRX 1000 2020-2025

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Kawasaki Teryx KRX 1000

Fox Factory has evolved trophy truck damping technology for direct bolt-on application to UTVs/Side-by-Sides. This enhancement amplifies shock resistance against fading through an enlarged shock bore diameter and employs velocity-sensitive damping for consistent impact resistance. The construction boasts aluminum bodies and reservoirs, minimizing weight without compromising on performance. Fine-tuning suspension settings is facilitated by independent high- and low-speed compression adjusters, extensive-range rebound adjusters, and an adjustable dual-rate spring package with crossover rings, catering to optimum performance setup. The innovative Internal Bypass technology (IBP) modifies damping based on piston movement within the shock, offering lighter damping mid-stroke for smoother navigation over rough terrains, while significantly increasing damping at full compression to prevent bottoming out at high speeds, and enhancing damping at full extension to protect against topping out damage.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 41.00
• Compressed: 25.50
• Travel: 15.50
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
