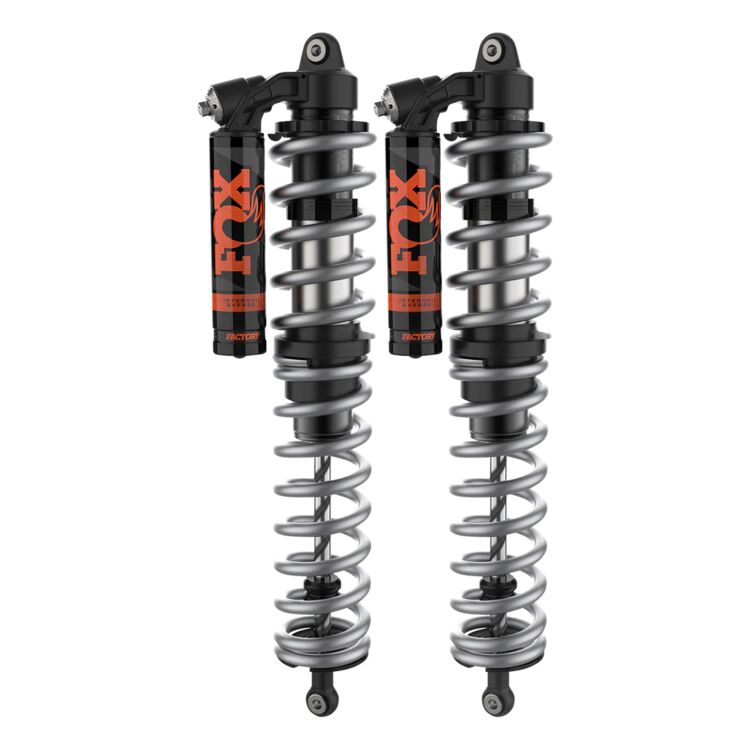

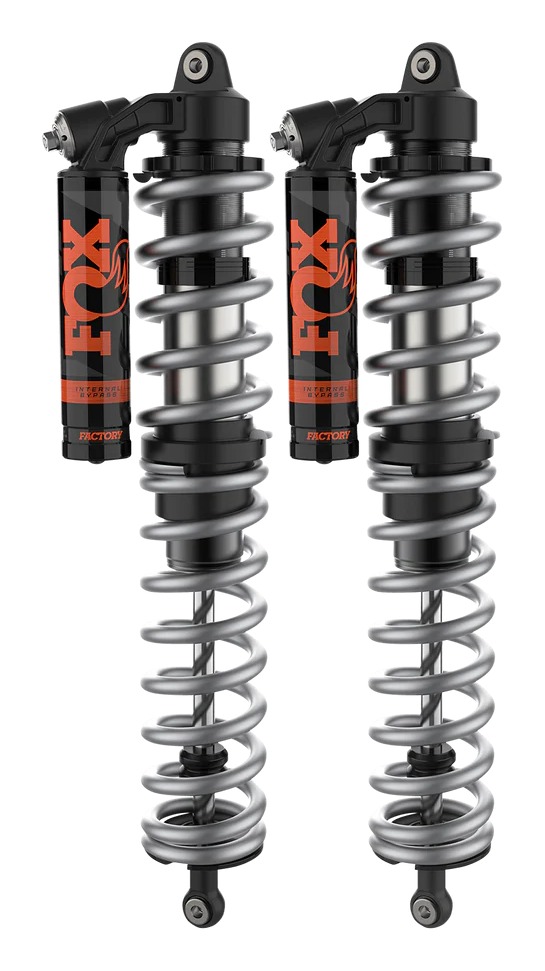

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Honda Talon 1000R-4 2023-2024

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Honda Talon 1000R-4

Fox Factory introduces a revolutionary upgrade for UTV/Side-by-Side enthusiasts with its race-derived position-sensitive damping technology, previously exclusive to the trophy truck arena. This direct bolt-on replacement shock offers an extended bore diameter to guard against fade and employs velocity-sensitive damping for enhanced resistance against constant impacts. Crafted with lightweight aluminum for both the body and reservoirs, it ensures top-tier performance without adding unnecessary weight. This technology is complemented by independent adjustment features for high and low-speed compression, wide-range rebound modification, and a dual-rate spring system with adjustable crossover rings, allowing users to finely tune their suspension settings for optimal performance. At its core, FOX's patented Internal Bypass technology (IBP) innovatively adjusts damping based on the shock piston's position, offering softer damping in the middle stroke for smoother navigation over uneven terrain while significantly hardening at the extremes to prevent bottoming out or damage from topping out, ensuring a balanced, high-performance ride under various conditions.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 32.20
• Compressed: 21.40
• Travel: 10.80
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
