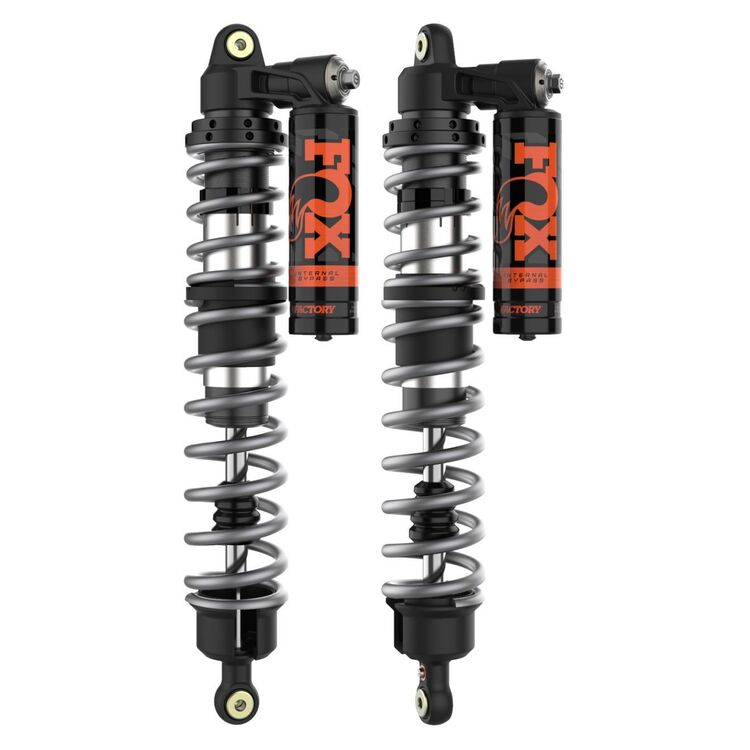

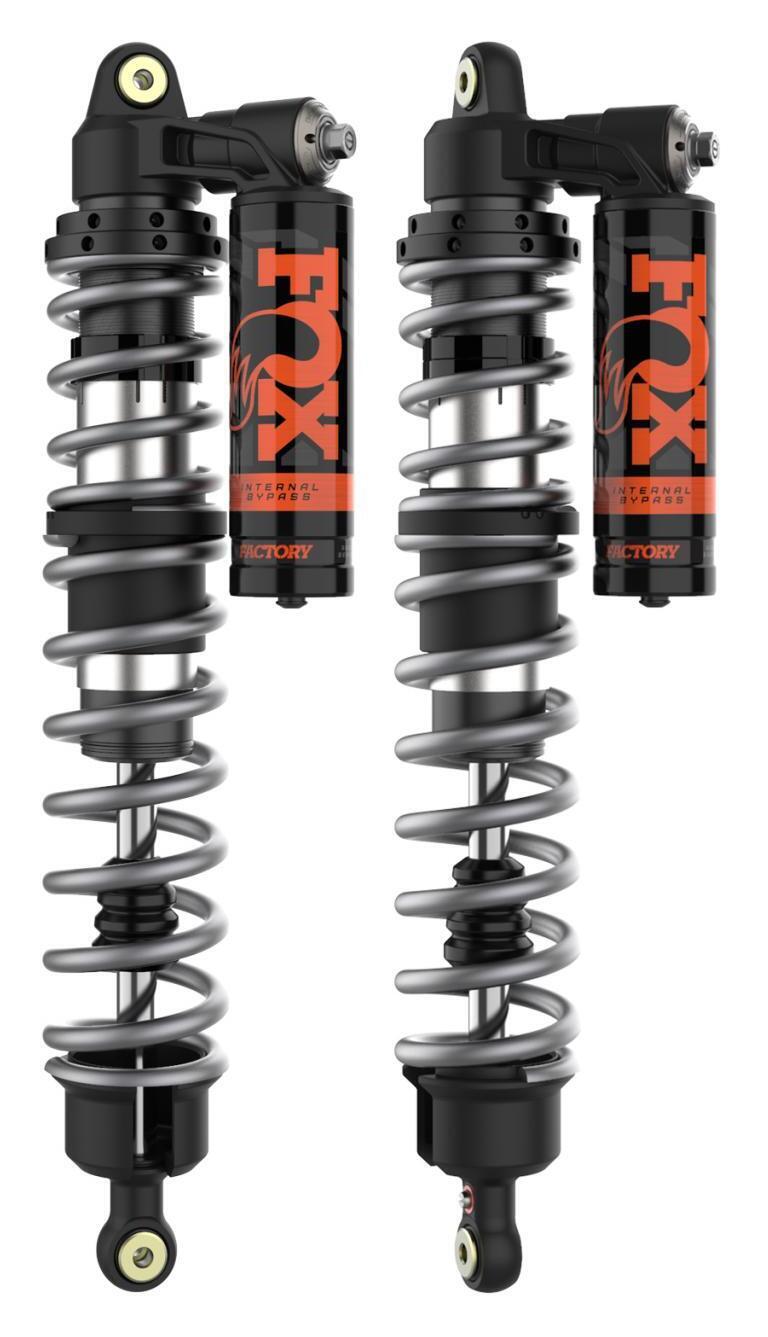

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Polaris RZR Pro XP 2020-2026

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Polaris RZR Pro XP

Fox Factory revolutionizes UTV / Side-by-Side suspension with its race-derived position-sensitive damping technology, offering a direct bolt-on upgrade that brings professional-grade performance. By enlarging the shock bore diameter, it ensures endurance against fade, while velocity-sensitive damping provides increased resistance during repetitive impacts. The use of aluminum for both bodies and reservoirs not only minimizes weight but also maintains robust performance levels. The system includes independent adjusters for high- and low-speed compression, a wide-range rebound setting, and a true dual-rate spring framework with adjustable crossover rings for precise suspension tuning. At the core of its innovation, FOX's Internal Bypass technology (IBP) allows for variable damping based on the piston's position within the shock, offering lighter damping for smoothing over rough terrain, significantly increased damping to prevent bottoming out on large whoops, and enhanced control at the shock's extension to avoid damage from topping out.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high-flow damping piston
• Piggyback reservoir
• Carbon black dual-rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 27.49
• Compressed: 18.95
• Travel: 8.54
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
