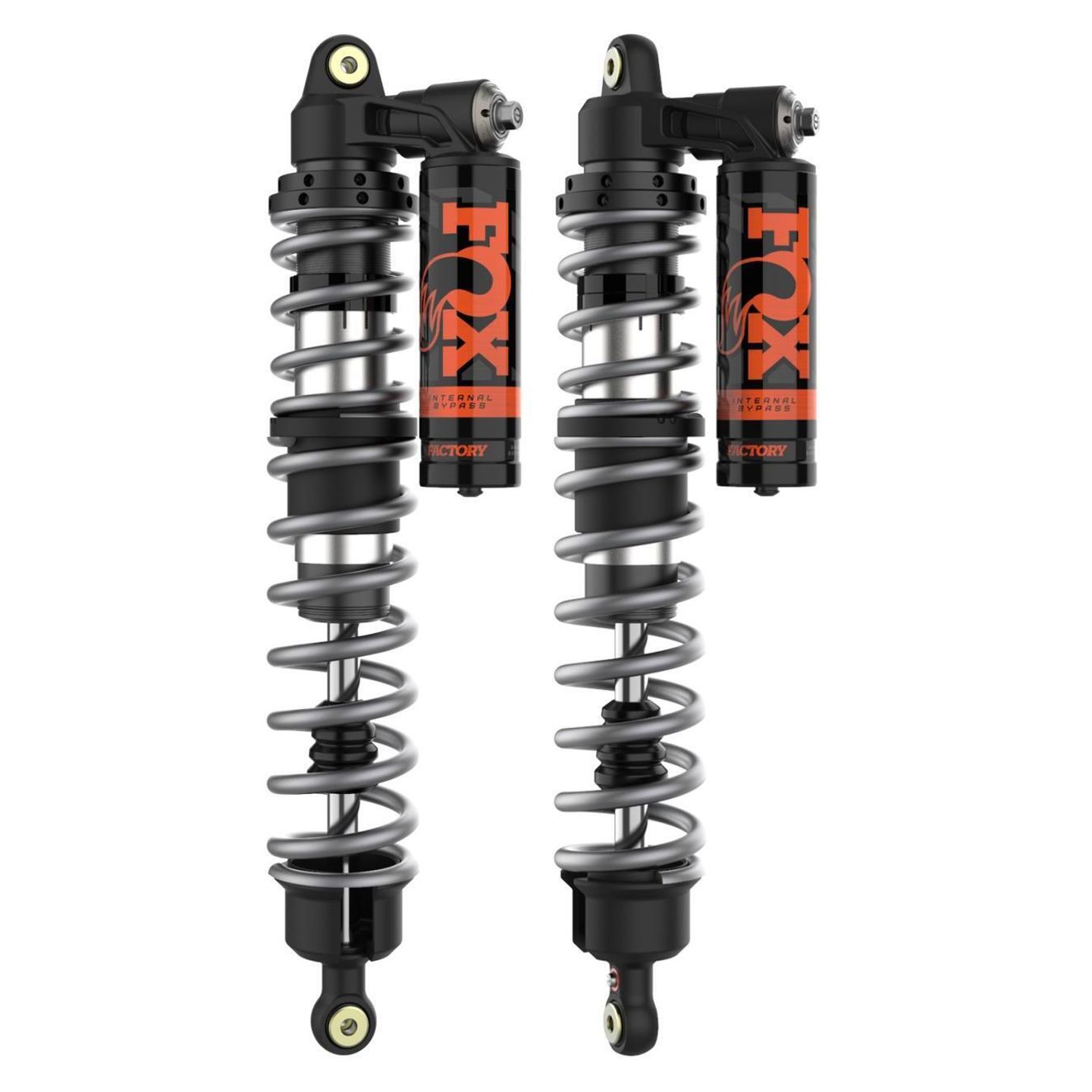

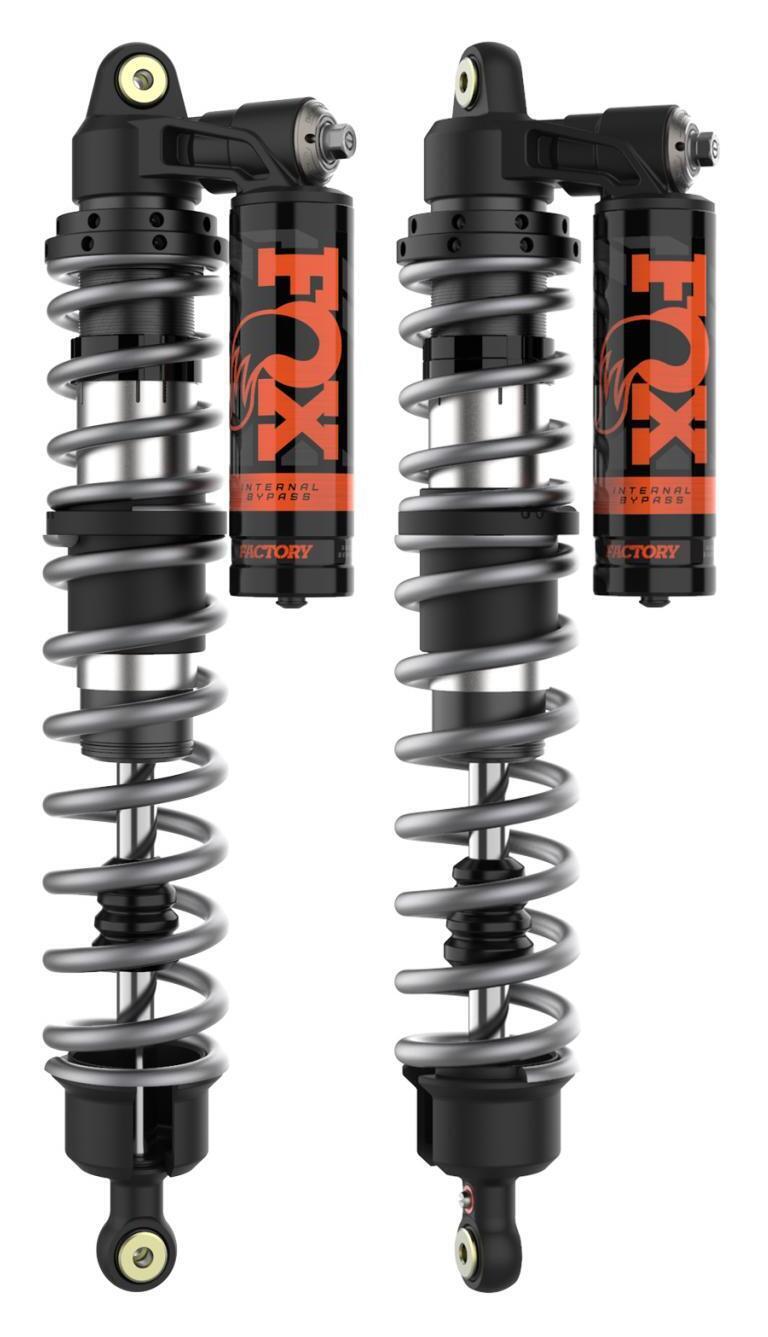

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Honda Talon 1000R 2019-2024

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Honda Talon 1000R

Fox Factory's direct bolt-on replacement shocks for UTVs and Side-by-Sides adapt race-proven, position-sensitive damping technology from trophy trucks, enhancing performance significantly. By increasing the shock bore diameter, these shocks avoid fading and respond adeptly to constant impacts with velocity-sensitive damping. Crafted with aluminum bodies and reservoirs, they balance weight reduction with durability. Tuning is simplified through independent high- and low-speed compression adjusters, wide-range rebound adjusters, and adjustable dual-rate spring packages. FOX's Internal Bypass technology (IBP) regulates damping based on piston position, offering lighter damping for smoothing out rough terrain and increased damping at extreme compression to prevent bottoming out, ensuring optimal control across all conditions.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir
• Carbon black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 26.54
• Compressed: 16.80
• Travel: 9.74
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback
