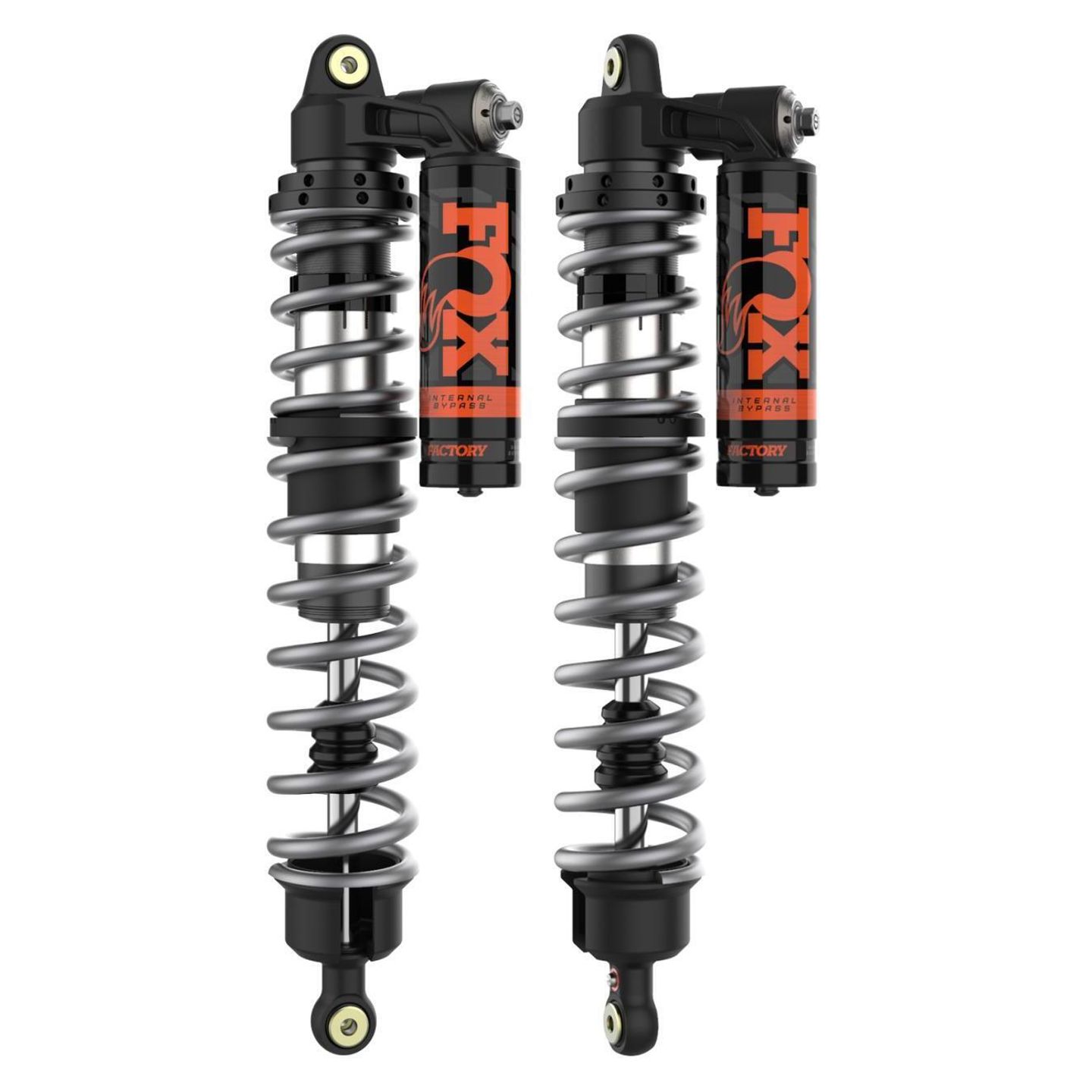

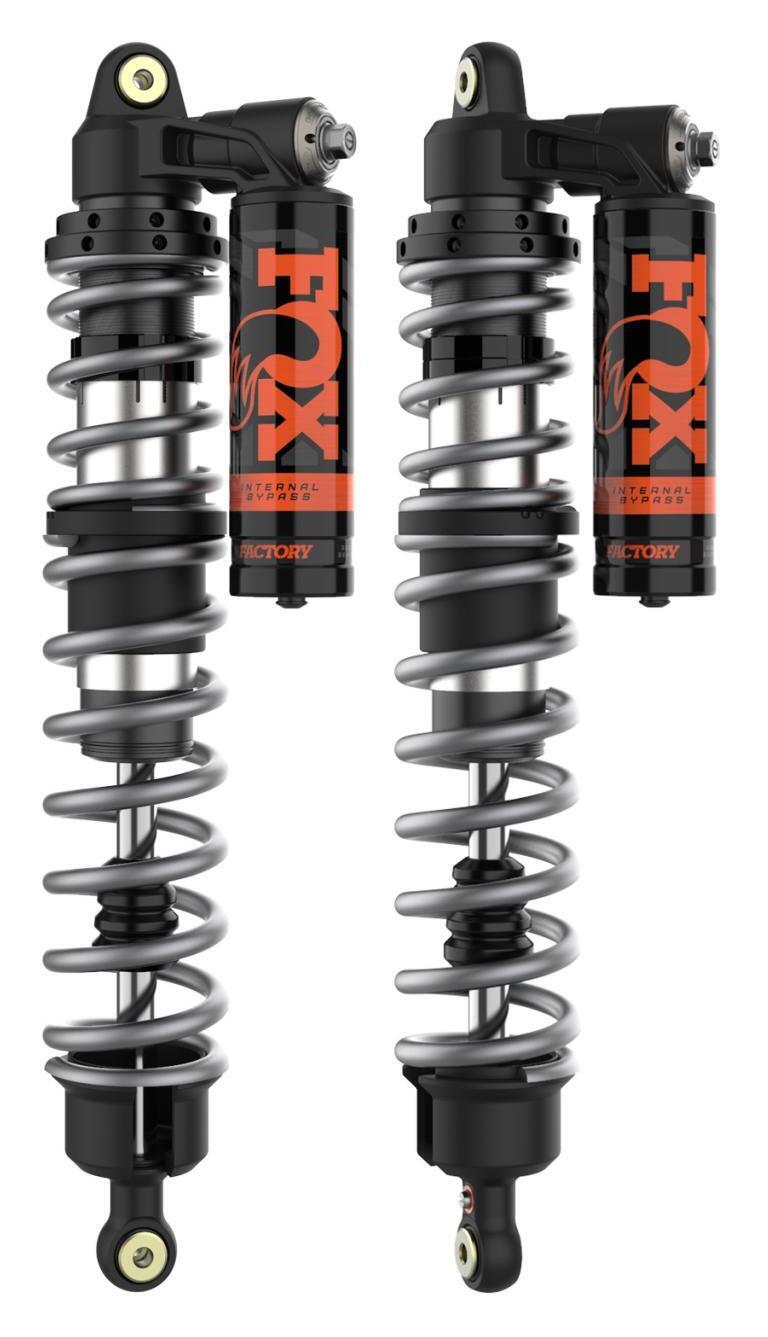

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX 1000

Fox Factory has revolutionized UTV / Side-by-Side suspension with its race-derived position-sensitive damping technology, directly transplantable to vehicles with a simple bolt-on procedure. The technology features an enhanced shock bore diameter that mitigates fade and employs velocity-sensitive damping to intensify resistance upon repeated impacts. Crafted with aluminum bodies and reservoirs, the design strategically reduces weight without compromising on performance. For those seeking to fine-tune their vehicle's suspension, Fox offers independent adjustments for high- and low-speed compression, extensive rebound modification options, and a dual-rate spring system with adjustable crossover rings for peak performance calibration. At the core of the technology, FOX's proprietary Internal Bypass (IBP) system adjusts damping based on the piston's location within the shock. This provides a tailored damping response: lighter in the stroke's middle to ease the ride over rough terrain, and increasingly firmer at full compression and extension to prevent bottoming out and top-out damage, ensuring stability and protection across challenging conditions.

Features:

  • Position-sensitive internal bypass damping tubes
  • Velocity-sensitive valved, high flow damping piston
  • Piggyback reservoir
  • Carbon black dual rate race springs with crossover
  • 7/8” hard-chromed induction-hardened shaft
  • PTFE-lined spherical bearings for smooth, durable movement
  • Kashima-coated hard-anodized aluminum body and reservoir
  • Sold as a pair

Adjustments/Technical Information:

  • Spring preload
  • Dual-Speed Compression (DSC)
  • Wide-range rebound
  • Spring crossover
  • Extended: 32.20
  • Compressed: 21.40
  • Travel: 10.80
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application

Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX 1000 2020-2025 J&P Cycles Item #10438503 Catalog Number10438503 Store Sku MFR. Product #885-08-508-2 AvailabilityOnly 1 Left: Ships within 24 hours

This product DOES NOT FIT your 2020 Polaris Ranger XP 1000 EPS Northstar Edition w/Ride Command

This Product Fits
Kawasaki
Teryx KRX 1000 2020-2025
Teryx KRX 1000 eS 2021, 2023, 2024, 2025
Teryx KRX 1000 Special Edition 2021, 2022, 2023, 2024
Teryx KRX 1000 Trail Edition 2021, 2022, 2023, 2024, 2025
This item is also available for 9 different vehicles. View All Models
