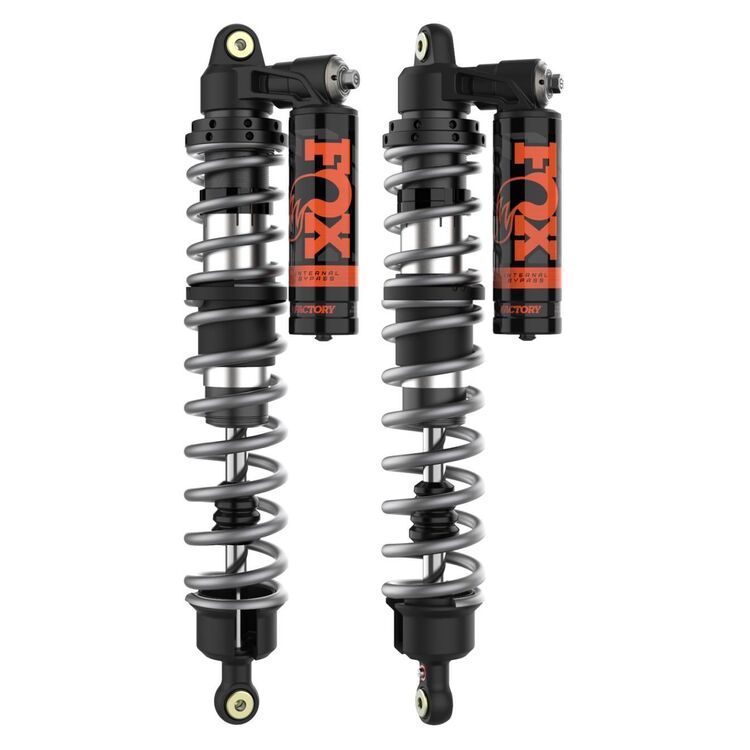

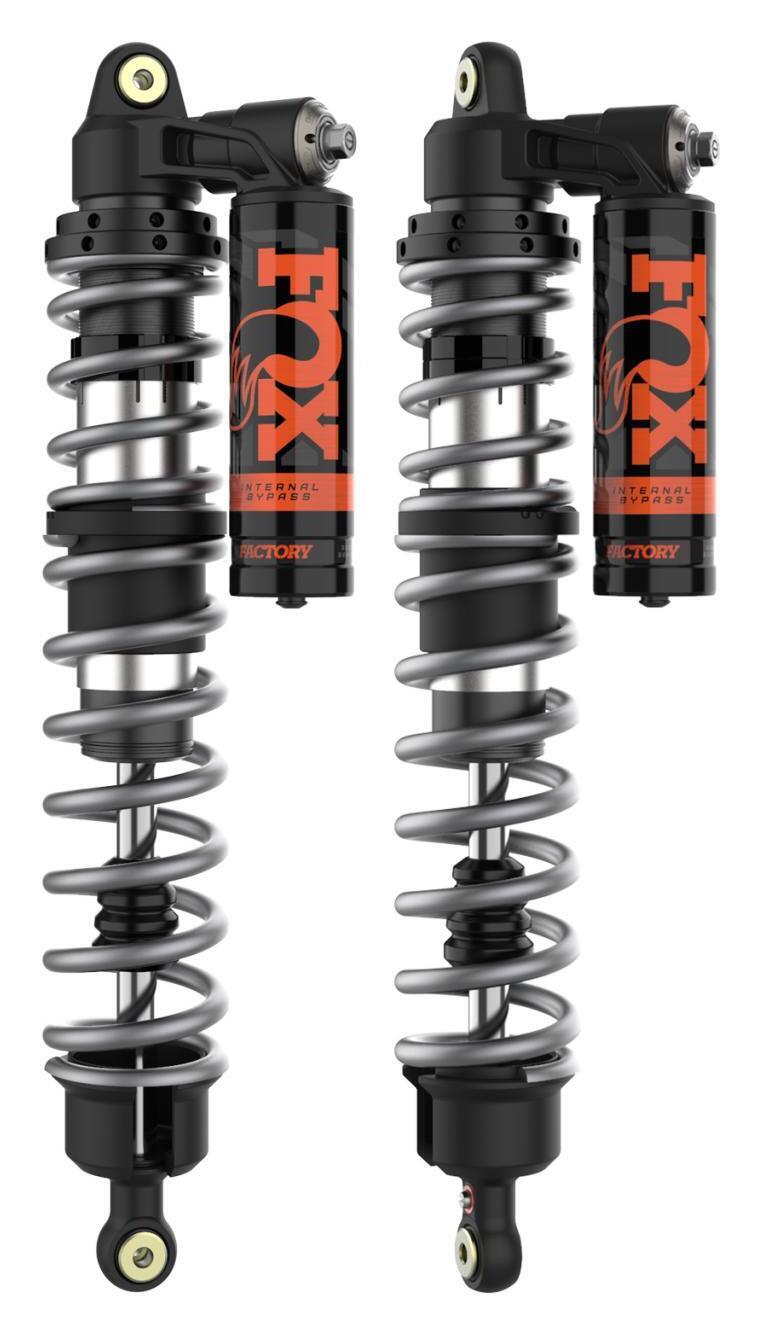

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX4 1000 2022-2025

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX4 1000

Fox Factory introduces a groundbreaking upgrade for UTV / Side-by-Side enthusiasts with its race-derived position-sensitive damping technology, directly transferable and easy to install. The enlarged shock bore diameter combats fading, while the velocity-sensitive damping intensifies resistance for relentless impacts. Crafted from aluminum for both body and reservoirs, this design not only trims weight but also ensures no compromise on performance. For those looking to fine-tune their suspension, the system comes equipped with independent high and low-speed compression adjusters, broad-range rebound adjusters, and a dual-rate spring package with adjustable crossover rings, facilitating peak setup and performance optimization. Leveraging FOX’s proprietary Internal Bypass technology (IBP), the damping varies with piston movement, offering lighter damping mid-stroke for smoothing out terrains and heightened damping at full compression to prevent bottoming out at high speeds. This adaptive mechanism also increases damping during shock extension, protecting against the impact of topping out, ensuring a balanced, powerful, and responsive handling experience across diverse terrains.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir
• Carbon black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 33.44
• Compressed: 22.50
• Travel: 10.94
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
