Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Honda Talon 1000R-4 2023-2024

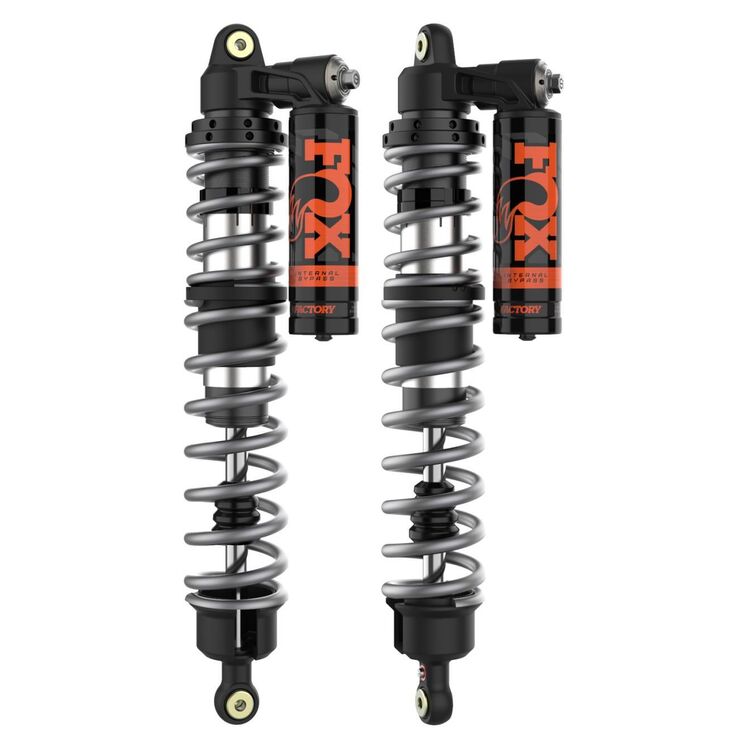

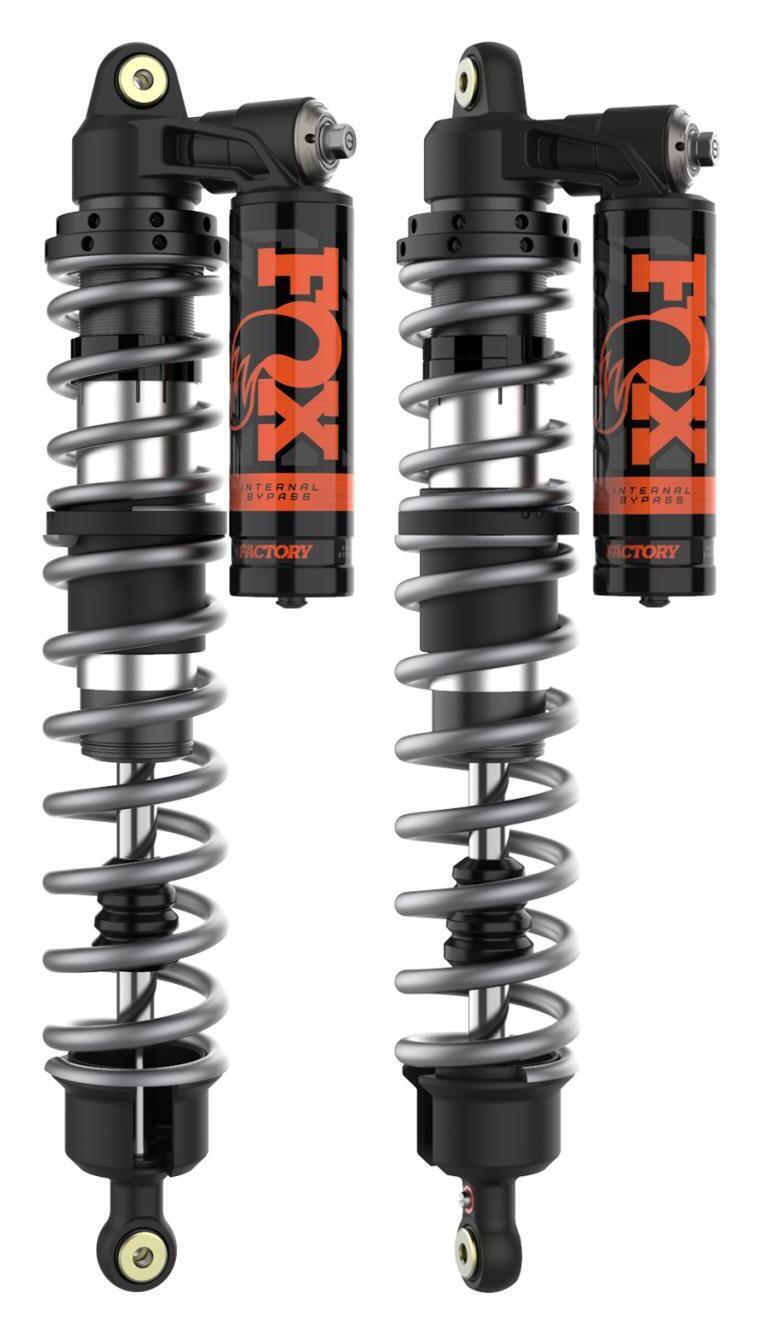

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Honda Talon 1000R-4

Fox Factory has revolutionized UTV / Side-by-Side suspension with their race-derived position-sensitive damping technology. This technology, initially developed for trophy trucks, is now accessible as a direct bolt-on replacement, enhancing your vehicle's performance. The system's increased shock bore diameter combats fading, while the velocity-sensitive damping provides consistent resistance against repetitive impacts. Lightweight yet robust, the shocks feature aluminum bodies and reservoirs, ensuring durability without adding unnecessary weight. For those seeking precision in their suspension settings, the setup includes independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a dual-rate spring package with adjustable crossover rings for optimal tuning. FOX's patented Internal Bypass technology (IBP) dynamically adjusts damping based on piston position, ensuring a smooth ride over diverse terrains and robust resistance against bottoming out at high speeds or during aggressive impacts. This system offers unparalleled control over suspension behavior, ensuring peak performance in any condition.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir
• Carbon black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 26.54
• Compressed: 16.80
• Travel: 9.74
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
