Fox Factory

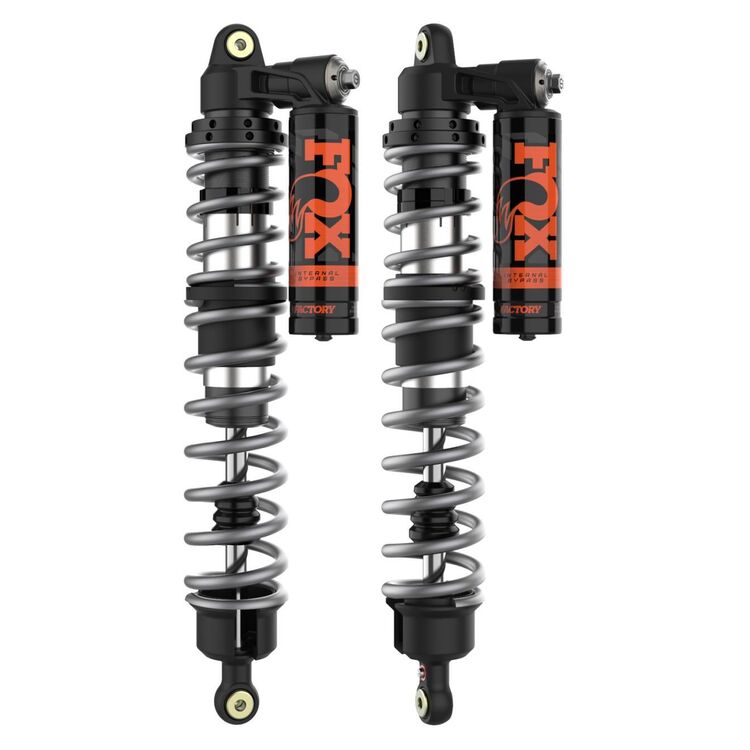

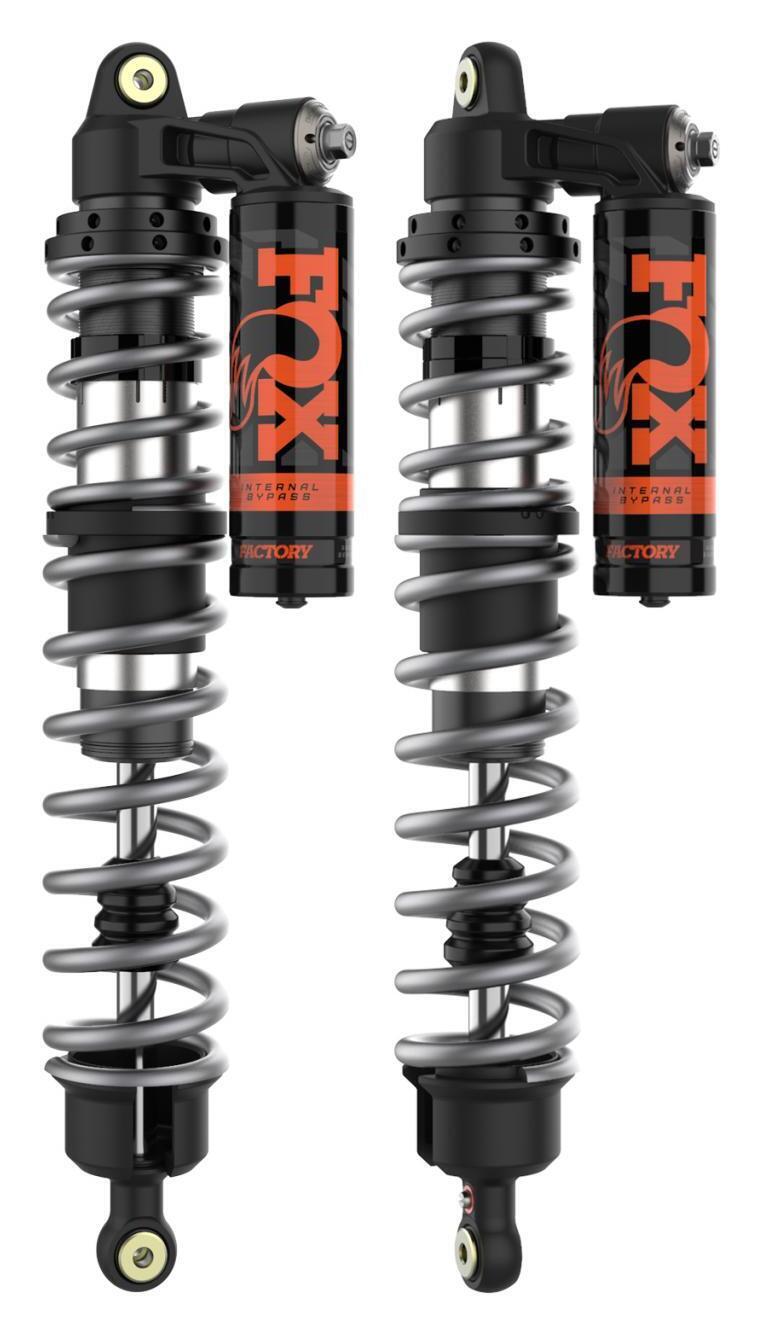

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Can-Am Maverick X3 Turbo R 2017-2023

Item: P1109231
Customer rating is out of 5 stars.
0 Read 0 Reviews Write a Review

Fox Factory has integrated race-proven, position-sensitive damping technology from the trophy truck domain into a direct bolt-on replacement shock for… Read More

Current price is $3,008.99
Rebate Available! View Details

Will Not Fit Change Vehicle

Members get up to $165.45 in total value with this purchase.

Cycle Gear Columbus Change Store

Product Details

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Can-Am Maverick X3 Turbo R

Fox Factory has integrated race-proven, position-sensitive damping technology from the trophy truck domain into a direct bolt-on replacement shock for UTVs / Side-by-Sides. Designed to enhance performance, these shocks feature an increased bore diameter to prevent fading and velocity-sensitive damping to deliver additional resistance during consistent impacts. The construction incorporates aluminum bodies and reservoirs to minimize weight without compromising on durability. For fine-tuning suspension settings, these shocks are equipped with independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a dual-rate spring package with adjustable crossover rings for optimal performance adjustment. FOX's patented Internal Bypass technology (IBP) varies damping control based on the piston's travel within the shock, providing a balance of smooth handling over rough terrain, resistance to bottoming out on heavy impacts, and protection against top-out damage, ensuring enhanced control and durability.

Features:

  • Position-sensitive internal bypass damping tubes
  • Velocity-sensitive valved, high flow damping piston
  • Piggyback reservoir
  • Carbon black dual rate race springs with crossover
  • 7/8” hard-chromed induction-hardened shaft
  • PTFE-lined spherical bearings for smooth, durable movement
  • Kashima-coated hard-anodized aluminum body and reservoir
  • Sold as a pair

Adjustments/Technical Information:

  • Spring preload
  • Dual-Speed Compression (DSC)
  • Wide-range rebound
  • Spring crossover
  • Extended: 32.04
  • Compressed: 20.40
  • Travel: 11.64
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application

Product Style J&P Cycles Item # Catalog Number Store Sku MFR. Product # Availability
Product Style Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Can-Am Maverick X3 Turbo R 2017-2023 J&P Cycles Item #10438499 Catalog Number10438499 Store Sku MFR. Product #885-08-119-2 AvailabilityOut of Stock
This Product Fits
Can-Am
Maverick X3 XRS Turbo R 72 inch 2017, 2018, 2019
Maverick X3 XRS Turbo RR 72 Inch 2020, 2021, 2022, 2023
Maverick X3 XRS Turbo RR w/Smart-Shox 72 Inch 2023
This item is also available for 23 different vehicles. View All Models
Product Description
Part Numbers
Fitment
